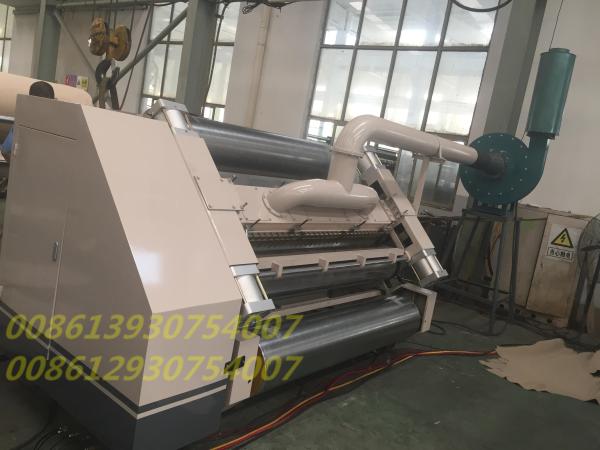

Corrugated Cardboard Single Side Machine Of automatic Corrugated Cardboard Production Line
Corrugated Cardboard Single Side Machine Of automatic Corrugated Cardboard Production Line
Corrugated Cardboard Single Side Machine Of automatic Corrugated Cardboard Production Line
Corrugated Cardboard Single Side Machine Of automatic Corrugated Cardboard Production Line
Specifications
Brand Name :
XINTIAN
Model Number :
XT
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 5000
Payment Terms :
L/C, T/T
Supply Ability :
2 Set / Month
Delivery Time :
60 work days
Packaging Details :
Pallet
Description

※Structural features:

★Using suction hood structure,matches strong high pressure blower.Suction with a silencer.,air source and electrical control focux on the same operation counter,away from the motor is not less than 1.5m,operating side closed full cover.

★base and wallboard cast iron wall,Wallboard thickness130mm.universal Joints.

★corrugated roller material adopt 48CrMoalloy steel,quenched,Laser hardening,Surface finish,main roller of corrugated diameter¢ 280mm,surface hardnessHRC60degree above.The key parts of the tile and pressure roller bearings Wafangdian produce high temperature bearings.

★pressure roller ¢ 284mm,surface grinding and chrome-plated；cylinder control and remove

up and down, 45 carbon steel materials, quenching (with cushioning devices).

★pneumatic control glue to glue back, glue roller diameter ￠215mm,Engraved polished surface after a 25-line pit style textured machined chrome plated,after scraping the roller surface polished hard chrome plated.

★Corrugated roller, pressure roller materials provided by the Central Plains Steel,High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder.

★preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm,connecting with metal Hose.

Corrugated Cardboard Single Side Machine Of automatic Corrugated Cardboard Production LineCorrugated Cardboard Single Side Machine Of automatic Corrugated Cardboard Production Line

※technical parameters:

effective width 1600mm
operation direction left or right(Determined in accordance with customer plant)
design speed 100m/min
temperature range 200—260℃
corrugate flute UV type or UVV type

※roller diameter parameters:

corrugated roll diameter ￠280mm
pressure roll diameter ￠285mm
glue roll diameter ￠216mm
preheat roll diameter ￠320mm

※Powered motor parameters:

main drive motor suction motor
power 7.5KW 7.5KW
rated voltage 380V 50Hz continuous(S1)working system 380V 50Hz continuous(S1)working system

※Mainly purchased parts,raw materials and origin:

Name of main parts Brands or place of origin Material and type
Wallboard or base Production by own HT200
Rotary joints and metal hoses Shandong tengzhou luguanqiu
Main drive motor Hebei hengshui 7.5KW speed motor
Bearing HRB,ZWZ,LYC or Zhejiang wanxiang
Seat belt bearing Zhejiang wuhuan
High pressure air Shanghai Yingfa
cylinder Zhejiang SANGEM
contacts CHNT or DELIXI
