Main Technical Parameter:

Functions and Characteristics:

●Whole machine electric parts was choice the international famous brand,good quality and steady.
●Complete machine baffle and Important parts was used the temper for decrease the metal internal force, and that parts was made by high precision process center and grinded by digit-controlled grinder.
●All the transmission axle and roller are made by the high-quality steel, temper, and dynamic balance; plated with rigid chrome and grinded surface.
●All the transmission gear was used the 20CrMnTi alloy steel, which is grinded after heat-treatment, and it was made by rubbing,it still maintains The high topping precision.
●The whole machine undergoes the spray lubrication,intuitionist show setting .setting the double oil pipe balance system
●Whole machine working interval adjustment, free-spanner self-lock worm wheel and worm device,fast and convenient.
●Option the vacuum adsorption, kick feeding or lead edge feeding to the customer request.
●Setting the Ink alarm device , real-time monitoring of the work status of the ink supply system.
●One-button antomatic pre-stick printing plate, computer can adjustment every printing unit printing plate to center of the cardboard according to the width of the cardboard, reduce waste cardboard when adjustment the machine.
Option: Anilox roller,Doctor blade,And stacker Machine

Function of Feeding Department:
●Electrically controlled the connecting and separated for the even/ unit with alarm to ensure the operator safety during its proceeding.
●The left and right baffle,kick feeding,back baffle was adopted electric adjustment;
●Brush and the top suction device at the inlet which can clear away the impurity from the paper face to improve the printing quality;
●Mainframe was controlled by the frequency conversion ,start-up and running steady,which can save the power about the 30%;
●Infrared photoelectricity counter can presetting the order paper quantity;
●One lock function for whole machine ,which can avoid the damaged the machine with error operation (Main motor start running ,every unit will be lock automatic);
●Pressure model elasticity feeding rubber roller,which can not to damaged the strength for corrugated cardboard;
●Option: outside baffle add the flap function,which made the cardboard orientation more exact,avoid to waste.
Option:kick feeding paper or lead edge feeding paper.

Function of printing Department:

●All the axle and roller was used the high grade steel,computer dynamic balance; Eliminate the centrifugal effect, plated with rigid chrome and grinded surface;
●Printing phases was adopted The planetary gear structure,the electric digit 360 adj istm nt, show dgt(stop, running can adjustment);
●Printing roller landscape orientation was adopted the touch screen control, and electric digit adjustment,the adjustment scope is 10mm;
●Pneumatic pump supply the ink.
●Hanging plate device ,total hanging and half hanging slotting notch,foot switch control the clockwise and counter-clockwise, fast to fixing and take down the plate.
●Fixing the oil interval,printing pressure roller ,lead roller interval were used the free-spanner self-lock worm wheel and worm device adjustment and fix;
●Printing phase fix was used the pneumatic brake structure,the brake structure will stop the mainframe running when the every unit separated,which can keep the origin gear fix position can not moved.
●Reposition function,before reposition,company memory printing position,it can automatic reset after reposition.
●Rubber roller,and the surface wrapped wear rubber,special grinding effect of transfer ink.
●Steel anilox roller,steel face chrome pressure The anil ox and rigid chrome.
●Pneumatic uplift plate device,the anilox roller break away pneumatic, smooth the oil automatic when the machine not printing, it can prevent the oil dry.

Function of Slotting Department:
●Slotting phases was adopted the planetary gear structure, the electric digit 360 adjustnent,show the dgt(stop, running can adjustment);
●Slotting tool rest pressure wheel horizontal move by electric mechanic joint adjustment;
●The height of box size was adjustment synchronous;
●Pressure interval was used the free-spanner self-lock worm wheel and worm device adjustment and fix;
●The elastic tangential scraper structure could cut off three and five layer cardboard without any adjustment.
●Slotting knife was choice with the high quality alloy steel,which made the rigidity and tenacity was best when heat treatment, it can suitable long-term used.
●It could be equipped with portable punching die holder.
●Option: Computer double shaft slotting adjustment.

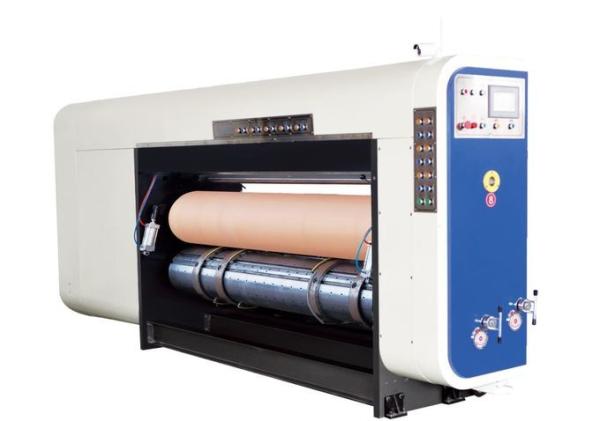

Function of Die Cutting Department:

●The die cutter phase is controlled by computer and electric digit.
●The die cutting scraper could be adjusted horizontally with manual control ranging from 10mm.
●The glue roller cuts the trimming mechanism and the cushion could be used for many times and save the use cost to a great deal.
●The cushion roller mechanical, horizontal and facility from + 30mm to -30mm could raise the service life of The cushion of the die-cutting.
●Used the die cutting equalizer, providing wire-speed compensation, be ensure the carton forming same size after repair the rubber.
Option: Contain slotter circle blade.
