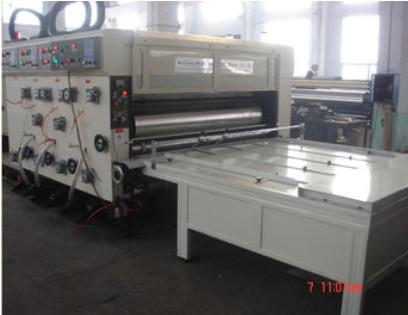

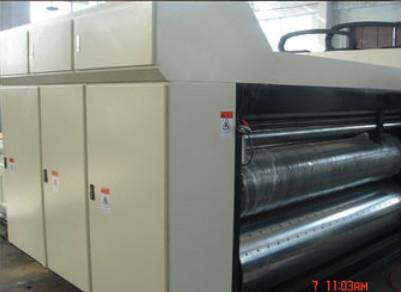

High Precision Cardboard Printing Slotting Machine 70 Pieces / Min Semi - Automatic
High Precision Cardboard Printing Slotting Machine 70 Pieces / Min Semi - Automatic
High Precision Cardboard Printing Slotting Machine 70 Pieces / Min Semi - Automatic
High Precision Cardboard Printing Slotting Machine 70 Pieces / Min Semi - Automatic
High Precision Cardboard Printing Slotting Machine 70 Pieces / Min Semi - Automatic
High Precision Cardboard Printing Slotting Machine 70 Pieces / Min Semi - Automatic
High Precision Cardboard Printing Slotting Machine 70 Pieces / Min Semi - Automatic
High Precision Cardboard Printing Slotting Machine 70 Pieces / Min Semi - Automatic
Specifications
Brand Name :
Xintianmachinery
Model Number :
XT-L
Certification :
CE,ISO9001
Place of Origin :
HeBei Province,China
MOQ :
1 set
Price :
Price negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50 sets/month
Delivery Time :
30-90days
Packaging Details :
pallet
Description

Power:

 20KW Driven Type: Mechanical
Packaging Type: Pallet Production Speed: 70pieces/min
Type: Packaging Line Automatic Grade: Semi-Automatic

High Precision Cardboard Printing Slotting Machine with Manual Feeding

Main Technical Parameter(according to four-color printing slotting machine):

SERIAL WYAZS NAME UNIT WYAZS
900×1900 1450×1900/2300/2700 1700×2300/2700
1 Inboard width mm 2200 2200 2600 3000 2600 3000
2 Max.coverage size mm 950×2100 1500×2100 1500×2500 1500×2900 1750×2500 1750×2900
3 Min.coverage size mm 250×500 380×640 380×640 380×640 450×720 450×720
4 Max.printing area mm 900×1900 1450×1900 1450×2300 1450×2700 1700×2300 1700×2700
5 Thickness of printing plate mm 7.2 7.2 7.2
6 Max.speed Pieces/min 60 60 60
7 Topping precision mm ±0.5 ±0.5 ±0.5
8 Slotting precision mm ±1.5 ±1.5 ±1.5
9 Max.slotting depth mm 200 300 400
10 Min.slotting interval mm 260×60×260×60 280×80×280×80 300×100×300×100
11 Power of main motor kw 3 4 5.5
12 Size for whole machine mm 4500×3000/3400×1800 5500×3200/3600/3900×2000 6500×3600/3900×2200

Functions and Features:

1. Printing and slotting phase is adjusted by mechanical 360o phase adjustment facilities; option of

planetary-gear electric phase, shown by digit.

2. Chain feeding model with a clutch between the working table and unit creates convenient gravure

registering.

3. Motorized detachment and combination; pneumatic locking and loosening of printing units; automatic ink

distribution and pneumatic brake separation orientation;

4. Whole machine uses the gear pumping automatic lubrication.

5. Ink roller and printing pressing roller are connected by cross slide to ensure steady transmission.

6. All axles and rollers are plated with rigid chrome and grinded surface.

7. The whole machine adopts the electric parts from CHINT and DELIXI;

Whole machine bearing is from the Harbine Bearing Group.
