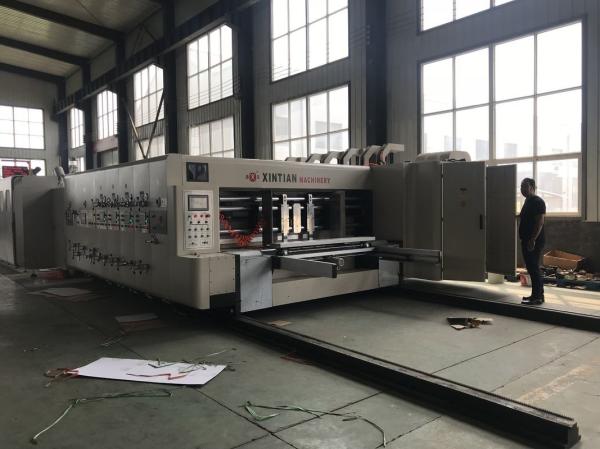

Single Slotting Carton Folding Machine Pneumatic Flapping For Cardboard High Speed

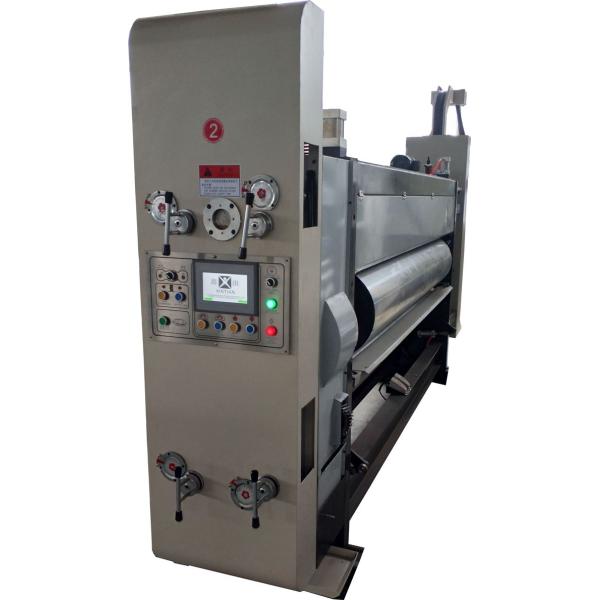

Functions of Printing Unit:

• All the axles and rollers are made of high-quality steel, rectified by computer dynamic balance, eliminating centrifugal force , plated with rigid chrome and grinded surface.
• Printing phases adopt the planetary gear surface and digital electric 360^o adjustment(both stopping and starting can be adjusted.)
• Printing roller landscape orientation is controlled by hand of a scope of 20mm.
• Pneumatic septum pump supplies the ink and the ink cup shows the quantity
• Plate-hanging device with whole hanging and half hanging slotting notch, foot switching controlling the clockwise and anti-clockwise rolling, convenient to fixing and taking down the plate.
• Fixed oil interval ,printing pressing roller and leading roller interval are adjusted and fixed by self-lock worm wheel and worm device
• Printing phase fixing adopts pneumatic brake structure, which will restrain the mainframe’s running to keep the original gear fixed position unchanged.
• Optional equipments:reposition function,computer memorizing printing position with automatic reposition function after scrubbing the plate
• Rubber roller and steel pipe surface are covered by wear-resistant rubber, specially grinded in intermediate-high grade, causing excellent working of the anilox roller.
• Steel anilox roller with grinded steel pipe and pressing anilox and plated with rigid chrome.
• Pneumatic plate-uplifting device functions as the anilox roller pneumatically separates with the stopping of the mainframe, automatically smoothing the oil to avoid dried oil.

•

Single Slotting Carton Folding Machine Pneumatic-Flapping For Cardboard With High Speed

Functions and Features:

1. Whole machine electric parts are domestic famous brand with good and steady quality

2. Tempering is used to decrease metal internal force in complete machine baffles and key parts,

and these parts are made by high-precision processing center and grinded by numeric-control grinder.

3. All the transmission axles and rollers are made by high-quality steel, and processed by tempering and

dynamic balance, plated with rigid chrome and grinded surface

4. All the transmission gears are made by the 45# alloy steel, and are grinded after heat-treatment, which

maintains high topping precision

5. The whole machine adopts spray lubrication, equipped with double oil pipe balance system.

6. Optional equipments: presetting adjustment function, feeding, printing, slotting, all featuring automatic

zero setting and memory reposition

7. Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient.

8. Vacuum adsorption, kick feeding or lead edge feeding to customers’ request

Option: Ceramic anilox roller and stacker Machine

Main technical parameter

Function of Feeding Unit:
