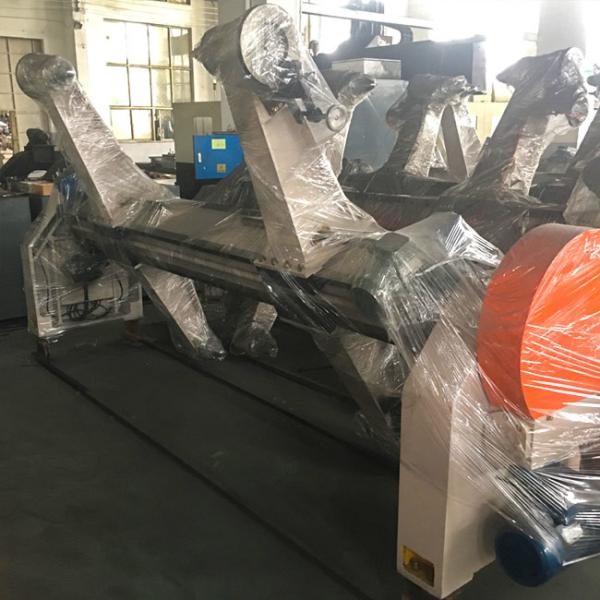

Electric Mill Roll Stand Corrugated Board Production Line 3ph 380v 50Hz
Electric Mill Roll Stand Corrugated Board Production Line 3ph 380v 50Hz
Electric Mill Roll Stand Corrugated Board Production Line 3ph 380v 50Hz
Electric Mill Roll Stand Corrugated Board Production Line 3ph 380v 50Hz
Specifications
Brand Name :
RINO
Model Number :
HE-M2000
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
Automatic Electric Mill Roll Stand Corrugated Machine Box Production Line
Maximum paper diameter :
φ1500mm
Paper width :
2000mm
Voltage :
220V/380V
Usage :
Corrugated kraft paper holding feeding
Color :
Customized according to your needs
Grade :
Electrical Driving
Loading Capacity :
1.5-2MT/side
Description

Automatic Electric Mill Roll Stand Corrugated Machine Box Production Line

Electrical Shaft-Less Mill Roll Stand Function

1. The symmetric structure can load two paper roll at the same time and can be used as non-stop working for paper exchanging.

2. Adopt electric way to clamp, loose, move to middle, left and right etc.

3. Brake adjustment adopts butterfly disc system.

4. It adopt two-level automatic self-inflating paper clamp; 3 inch.

Electrical Shaft-Less Mill Roll Stand Parameter
Width 1400-2500mm
Paper roll dia. φ350-φ1500mm
Single side hold weight 2T
Pressure 0.6-0.9Mpa
Total power 4.0kw
Voltage 3ph380v 50Hz

Machine Introduction

Electric Mill Roll Stand Corrugated Board Production Line 3ph 380v 50Hz Electric Mill Roll Stand Corrugated Board Production Line 3ph 380v 50Hz

Electric Mill Roll Stand Corrugated Board Production Line 3ph 380v 50Hz Electric Mill Roll Stand Corrugated Board Production Line 3ph 380v 50Hz

Swing type

Max. paper roll dia.: 1400/ 1600 /1800mm

length: 800-1400mm

Clamping paper roll, moving right-left, arms up-down and paper roll rotation is motorized operated.

Support two paper rollers in the meantime, one is working, and another is for spare part.

Adopts “Spring clutch”.

Paper tension controlled by pneumatically operated disc brake, setting the tension easily.
