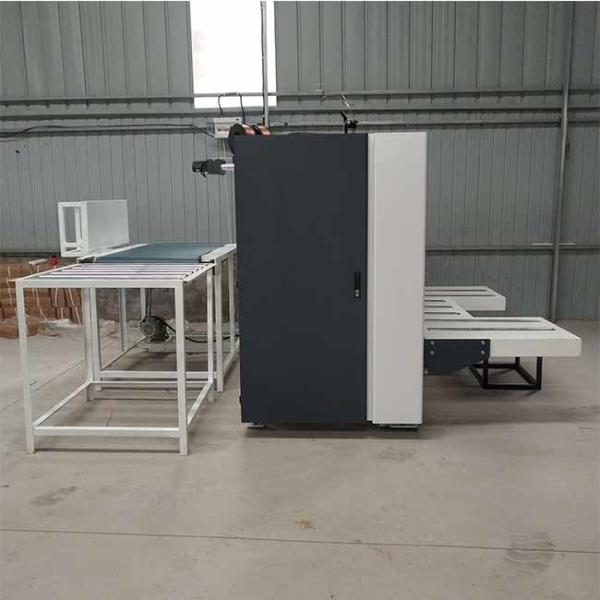

RINO Semi Automatic Stitching Machine For Corrugated Boxes 2800mm Single Piece
RINO Semi Automatic Stitching Machine For Corrugated Boxes 2800mm Single Piece
RINO Semi Automatic Stitching Machine For Corrugated Boxes 2800mm Single Piece
RINO Semi Automatic Stitching Machine For Corrugated Boxes 2800mm Single Piece
RINO Semi Automatic Stitching Machine For Corrugated Boxes 2800mm Single Piece
RINO Semi Automatic Stitching Machine For Corrugated Boxes 2800mm Single Piece
Specifications
Brand Name :
RINO
Model Number :
HS-S2800
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Maximum paper Size :
2800*1500mm
Minimum paper Size :
660*330mm
Nail Distance :
30-100mm
Maximum Speed :
500-600 Nails/min
Name :
Box Stapler Machine Semi Automatic Double Servo Single Piece Carton Stitching Machine
Power :
6HP
Nail wire model :
#17、#18
Number of nails :
1-99
Description

Semi-Auto Single Piece Carton Stitching Machine Cardboard Box Forming Machine

Introduction of Cardboard Box Stitching Machine

1) Mitsubishi original imported double servo drive, accurate precision, mechanical transmission part reduced, can effectively reduce the failure rate of machinery.

2) Mitsubishi touch screen operation, the parameters(stitching distance, stitching number, stitching type,rear baffle) change easily and quickly.
3) The whole control system adopts Omron PLC control system.
4) The real electric baffle is driven by stepping motor, accurate size, more convenient and quick to change size.
5) The full contactor in the control box adopts Schneider brand.
6) Photoelectric and proximity switches are brand Omron.
7) Bottom die, blade made of Japanese tungsten steel(wear-resistand)
8) The whole group of nail head are all made of special steel, computer gongs precision processing.
9) Can nail single nail /double nail //strength the nail // / // both end are double nail, middle nail is single one time completion, can be suitable for different customers to nail different requirements.
10) It only takes one minute to change the size of the carton and adjust the nail distance of the carton, greatly savingtime and convenient operation.

Cardboard Box Stitching Machine Parameter

Model

HS-S2800
MAX.pardboard Size 2800*1500mm
MIN .pardboard Size 660*330mm
Nail Distance 30-120mm
Speed 400-600 nails / min
Total Power 6HP
Nail Wire #17,#18
Paper Stacking Height 900MM
Weight 2500KGS

Main Units of Box Stitching Machine

RINO Semi Automatic Stitching Machine For Corrugated Boxes 2800mm Single Piece
Stapling head, punching and sliding are all adopts Japan alloy steel DC53 by strict heat process to ensure durable.
Suit for 3/5 ply offset carton and cover or no cover was stitched.
RINO Semi Automatic Stitching Machine For Corrugated Boxes 2800mm Single Piece
Single nail, double nail, strengthen nail can be stitched one time.
Size was controlled by electric, fault was showed on the screen.

Accessory List

NO NAME NO. BRAND
1 Touch screen 1 WEINVIEW,TAIWAN
2 SERVO MOTOR 2 MITSUBISHI,JAPAN
3 PLC OMRON,JAPAN
4 MOTOR 1 LIMING,TAIWAN
5 BLADE 1 Japanese Tungsten Steel
6 STITCHING HEAD 1 Imported from Taiwan, Italian technology
7 PHOTOELECTRIC SENSOR 2 OMRON,JAPAN
8 BREAKER Schneider
9 BUTTON Schneider
10 Wire Feeder 1 SHANGHAI
11 WALLBOARD 1 THICKNESS12mm
12 BEARINGS 1 C&U
