Chain Feeding Carton Box Flexo Printing Machine With Slotter
Chain Feeding Carton Box Flexo Printing Machine With Slotter
Specifications
Brand Name :
RINO
Model Number :
HP-CD1200
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
Chain Feeding Carton Box Flexo Printing Machine With Slotter For Sale
Usage :
Carton Box Printing Slotting
Total Weight :
6 T
Voltage :
220V/380V
Slotting precision :
±1.5mm
Tinted precision :
±0.5mm
Total power :
15 KW
Design speed :
60 Pcs/Min
Description

Chain Feeding Carton Box Flexo Printing Machine With Slotter For Sale

Box Flexo Printing Machine Introduction

1. Adopt chain feeding.
2. Adopt QT400 ductile iron gear transmission
3. The swing gap adjustment device avoids the center offset of the upper and lower knife rollers caused by conventional adjustment, so that the
Ensure that the operating roller is balanced, and the printing is clear and without double shadows.
4. Automatic circulation ink supply system, the drum is pneumatically lifted and rotated, and it rotates independently.
5. The rollers are all chrome plated to increase hardness
6. The electric phase adjustment mechanism of printing and slotting adopts planetary gear structure (can be adjusted 360 degrees at the same time)

Parameter of Carton Flexo Printing Machine

Width

mm

2600

Maximum Paper feeding size

mm

1200×2400

Effective printing size

mm

1200×2200

Minimum Paper feeding size

mm

350×650

Thickness of printing plate

mm

7.2

Design speed

sheets/mi

n

60

Economic speed

sheets/mi

n

40-60

Tinted precision

mm

±0.5

Slotting precision

mm

±1.5

Main units

Chain Feeding Carton Box Flexo Printing Machine With Slotter

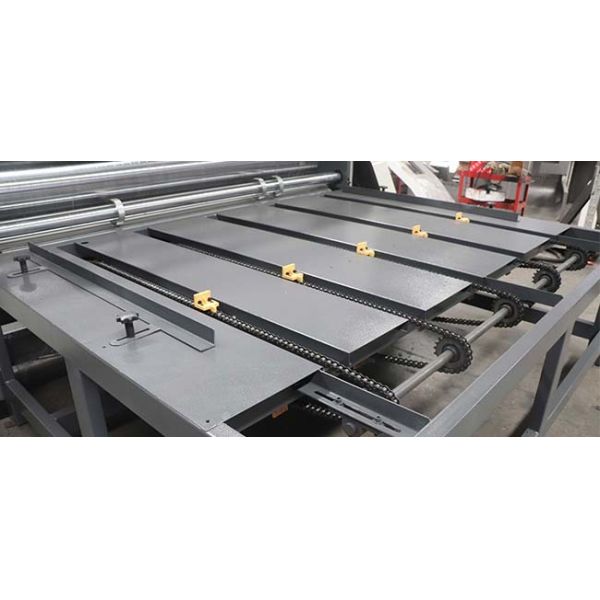

Paper feeding unit

1. The manual chain-type paper feeding system is adopted, which can make the general curved cardboard pass smoothly.

2. Each paper feeding part adopts 5 hanging chains, which can adjust the size of the cardboard, and the size can be customized according to user requirements.

3. The tension of the chain is adjusted manually. The worktable is a thickened , thickness is 5mm.
Chain Feeding Carton Box Flexo Printing Machine With Slotter

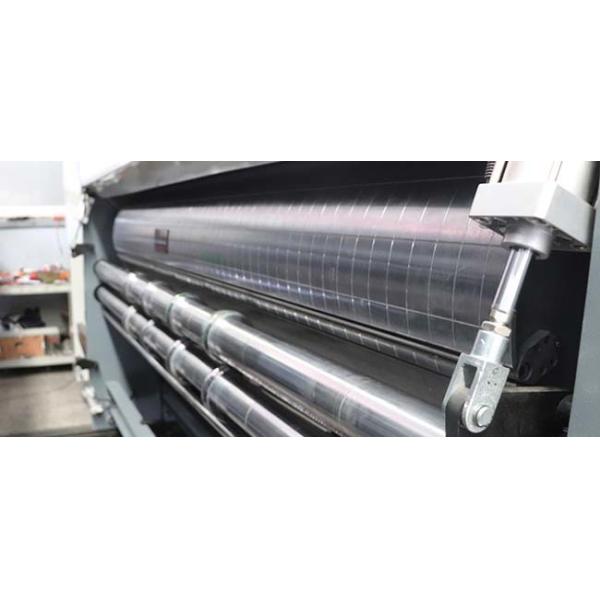

Printing unit

[1] Including printing plate outer diameter ￠408mm (including plate).

[2] Using 45# high-quality steel, after quenching and tempering, turning, etc., the axial and circumferential reference lines are engraved, and the surface is plated with hard chrome.

[3]Dynamic balance correction, stable operation, suitable for high-speed operation.

[4]Ratchet fixed reel shaft. It is equipped with a plate-hanging groove to adapt to quick plate change. (This item can be selected according to user needs and additional cost).
Chain Feeding Carton Box Flexo Printing Machine With Slotter

Slotting unit

Manual adjustment of the pressure wheel gap dial, the adjustment range is 2-12mm. The gear adopts a side-gap adjustment mechanism, which does not affect the gear engagement during adjustment, ensuring transmission accuracy.

Packaging&shipping

FAQ

1.Q:What is the machine warranty?
A:one year.
2.Q:What is the production time while placing order?
A:About 20 days
3.Q:What is the delivery time?
A:40-60 days after get the payment.
4.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
5.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
6.Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
