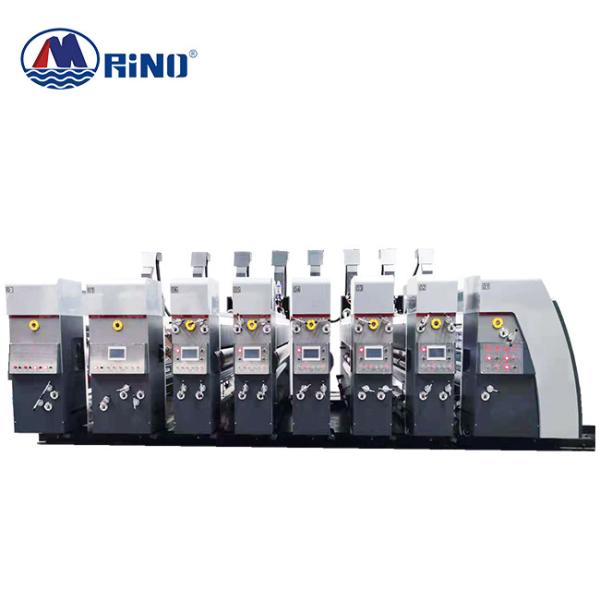

5 Color Carton Box Printing Slotting Machine 150pcs/Min
5 Color Carton Box Printing Slotting Machine 150pcs/Min
5 Color Carton Box Printing Slotting Machine 150pcs/Min
5 Color Carton Box Printing Slotting Machine 150pcs/Min
5 Color Carton Box Printing Slotting Machine 150pcs/Min
5 Color Carton Box Printing Slotting Machine 150pcs/Min
Specifications
Brand Name :
RINO
Model Number :
HP-LM1400
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
150pcs/min Carton Box 5 Color Flexo Printing Slotting Die Cutting Machine For Corrugated Board Supplier
Grade :
Automatic
Maximum paper size :
1400×2600mm
Minimum paper size :
350×650mm
Maximum printing size :
1400×2400mm
Wallboard thickness :
50mm
Gear thickness :
50mm
Type :
Carton Printer Slotter Die Cutter Machine
Condition :
New
After-sales service provided :
Avaliable
Maximum speed :
150pcs/min
Description

150pcs/min Carton Box 5 Color Flexo Printing Slotting Die Cutting Machine For Corrugated Board Supplier

Box Flexo Printing Machine Introduction

1. All rollers are chrome plated to increase hardness.

2. Spray circulating oil for lubrication.

3. Return to zero and automatically adjust the printing plate.

4. Module design. The multi-color printing part can be combined according to your requirements.

5.. The side baffles of the feeder are electrically adjusted.

Parameter of Carton Flexo Printing Machine

Model HP-LM1400

Maximum paper size

1400×2800mm

Minimum paper size

350×650mm

Maximum printing size

1400×2600mm

Printing repeating dots

1683

Standard printing plate thickness

7.2mm

Cardboard thickness

2-11mm

Number of stacking columns

1

Machine weight

30-40T

Main units

5 Color Carton Box Printing Slotting Machine 150pcs/Min

Paper feeding unit

1. Leading edge feed type.

2. Vacuum adsorption assisted paper feeding to ensure high-speed and stable operation. The air volume can be adjusted according to the radian of the paperboard.

3. The front baffle can be electrically adjusted through the scale on it, which is easy to understand.

4. The side baffle can be adjusted electrically, with digital setting and pneumatic device.

5. The clutch of the machine is electrically controlled. With vigilance.
5 Color Carton Box Printing Slotting Machine 150pcs/Min

Printing unit

1. Computer digital axis adjustment, adjustment distance ± 10mm

2. The anilox roller is equipped with an automatic lifting device, which can separate the printing board when stopping paper feeding

3. All intervals adopt computer adjustment and digital setting

4. Install the rotary motor of the ink roller to prevent the ink from drying when the host is shut down.
5 Color Carton Box Printing Slotting Machine 150pcs/Min

Die Cutting Unit

The gap between die roll and rubber roll is electrically adjusted, and the air lock is fixed. The adjustment mechanism is stable and reliable. The cot has a 50mm horizontal moving device and a speed difference compensation system. The rubber pads at different positions wear evenly, which effectively prolongs the service life of the tool.

Packaging&shipping

5 Color Carton Box Printing Slotting Machine 150pcs/Min

FAQ

1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
