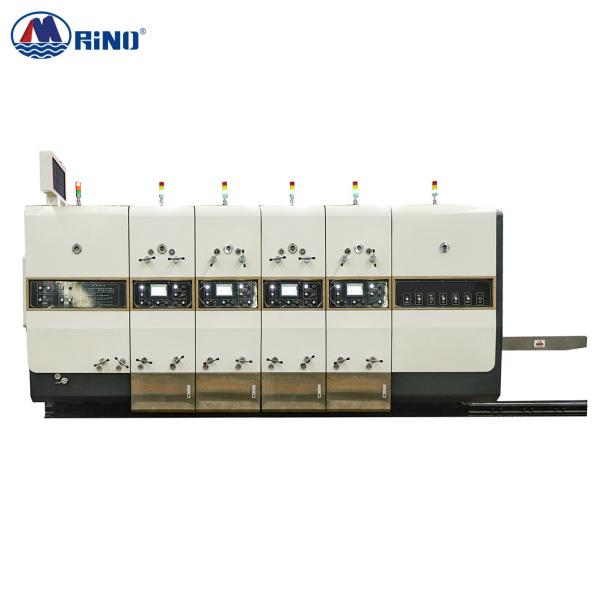

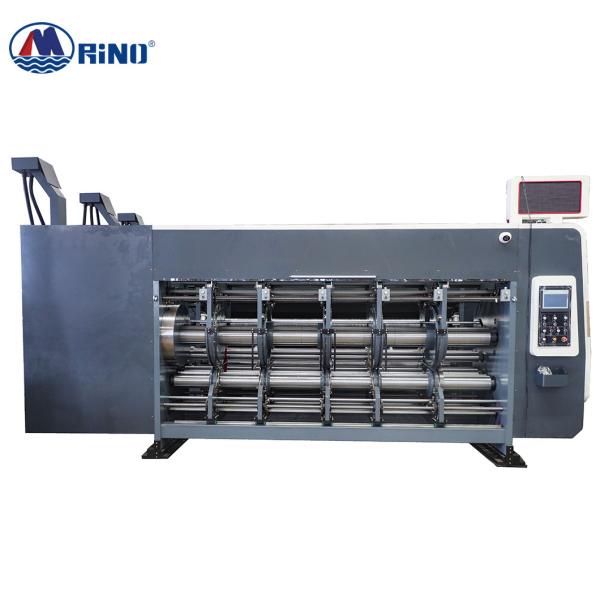

Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Specifications
Brand Name :
RINO
Model Number :
HP-LD2500
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Grade :
Automatic
Wallboard thickness :
60mm
Gear thickness :
60mm
Die cutting accuracy :
±1.5mm
Tinted accuracy :
±0.5mm
Maximum paper size :
2500 X 4200mm
Working speed :
150Pcs/Min
Description

Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter​

Box Flexo Printing Machine Introduction

1. It adopts vacuum adsorption, leading edge feeding, design and manufacture, and the whole operation is humanized design, which can be set, modified, executed, replaced, memorized and displayed accurately in a short time.

2. The material of the aluminum drive roller is made of high-quality steel, with balance correction, smooth operation, surface grinding, and hard chrome plating.

3. Full gear transmission, high-quality alloy steel, heat-treated and ground.

4. Automatic oil balance device to keep the oil balance of each unit.

5. With automatic zeroing, recording memory, printing plate cleaning memory, order dust removal and other functions, optional touch screen PLC control, easy to operate.

6. Anilox roller: Metal or ceramic anilox roller can be used, and the anilox roller line can be selected according to user requirements.

Parameter of Carton Flexo Printing Machine

Model HP-LD2500
Width 4500mm
Maximum speed(pcs/min) 150
Wallboard thickness(mm) 60
Gear thickness(mm) 60
Maximum paper size(mm) 2500 X 4200
Maximum printing size(mm) 2500 X4000
Standard printing plate thickness(mm) 3.2---7.2
Cardboard thickness(mm) 3---12
Precision(mm) Tinted accuracy ±0.5, Slotting accuracy±1.5, Die cutting accuracy ±1.5
Power (kw) 38
Total power(kw) 45

Main units

Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter

Paper feeding unit

1. The Hengli Servo pressure free leading edge is used to feed the paper, and the suction volume is increased, and the paper feeding is more stable and accurate.
2. Inverter control of vacuum airflow and pressure to match cardboard size.
3. Adjustable paper feeding stroke to reduce the pressure of the rubber roller.
4. High-efficiency dust removal device, double-row brushes and fans, remove paper scraps on the surface of cardboard.

Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter

Printing unit

1. Leak-proof and ink-repellent system device
2. Automatic reset system after printing plate cleaning
3. Ink saving system, when changing color or cleaning ink, each unit can save 0.4-0.5 kg of ink (for roller suction diaphragm pump ink supply system)
Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter

Die Cutting Unit

The die-cutting phase adopts electric digital 360° adjustment, and the equipment can be adjusted during operation and stop.

Packaging&shipping

Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter

FAQ

1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
