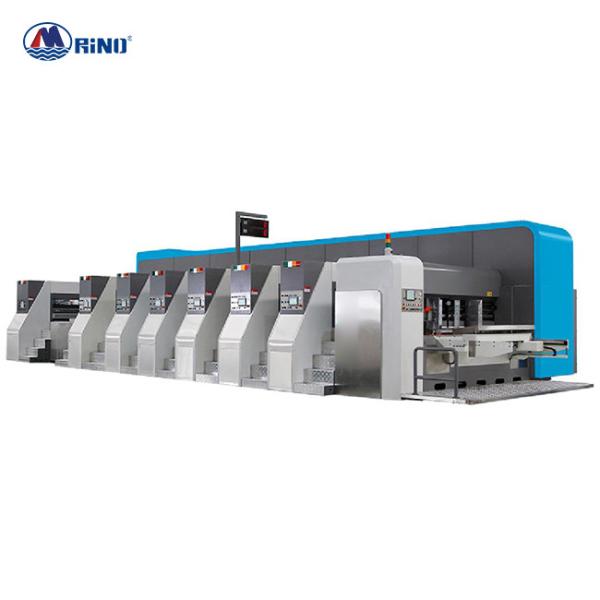

Fixed Type Carton Flexo Printing Machine High Speed Slotting Die Cutting
Fixed Type Carton Flexo Printing Machine High Speed Slotting Die Cutting
Specifications
Brand Name :
RINO
Model Number :
HP-LM1222
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
Fixed Type High-Speed Carton Box Flexo Printing Slotting Die-Cutting Stacking Machine
Maximum speed :
250pcs/min
Maximum feeding size :
1200mm×2300mm
Minimum feeding size :
350mm×600mm
Maximum printing size :
1200mm×2150mm
Paper feeding precision :
±1.0mm
Printing precision :
±0.5mm
Voltage :
380V
Description

Fixed Type High-Speed Carton Box Flexo Printing Slotting Die-Cutting Stacking Machine

Machine Introduction of Flexo Printing Machine

The fixed unit of each unit adopts vacuum adsorption type conveying device, the printing unit adopts servo control for color register, and optional infrared (IR) or ultraviolet (UV) drying device to realize high dot precision printing; the whole machine adopts touch screen PLC control, optional It can store and recall the order data without stopping the machine to change the version. The order change is fast and the operation is convenient.

Paper feeding unit: Originally imported from the latest leading edge paper feeding platform of American Sun Company, paper feeding is stable and fast
Printing unit: quick plate change (optional non-stop plate change), imported brand squeegee ink supply system
Coating unit: UV varnish or water-based varnish can be selected during production
Double breaking wheel grooving unit: adopts large crimping structure to make crimping effect more perfect; multiple crimping, precise grooving
Die-cutting unit: Servo motor drive, effectively reducing the vibration to the printing unit, making printing more accurate
Drying unit: optional infrared and ultraviolet drying system



Parameter Flexo Printing Machine

Model
HP-LM920
HP-LM924
HP-LM1222
HP-LM1228
Max speed(pcs/min>)
300
280
250
230
Maximum paper size(mm)
900×2100
900×2500
1200×2300
1200×2900
Minimum paper size(mm)
300×600
300×600
350×600
350×600
Skip paper feeding size(mm)
1200×2100
1200×2500
1500×2300
1500×2900
Max. paper printing size(mm)
900×1950
900×2350
1200×2150
1200×2550


Main units

Fixed Type Carton Flexo Printing Machine High Speed Slotting Die Cutting

Leading edge paper feeding unit

1. Three-axis leading edge paper feed, increase the fan flow, and paper feed more smoothly and accurately.

2. Frequency conversion controls the vacuum air flow and pressure to match the cardboard size.
Fixed Type Carton Flexo Printing Machine High Speed Slotting Die Cutting

Printing unit

1. The surface of the steel pipe is sprayed with ceramics and then ground and laser engraved.

2. The dots are consistent and the ink is evenly applied.

3. Extend the service life of printing plate and rubber roller.
Fixed Type Carton Flexo Printing Machine High Speed Slotting Die Cutting

Slotting unit

1. The creasing shaft is made of solid steel, polished, and the surface is plated with hard chrome.
2. The first set of creasing roller, the cardboard after pre-press is not easy to be crushed.


Our Factory


Fixed Type Carton Flexo Printing Machine High Speed Slotting Die Cutting
