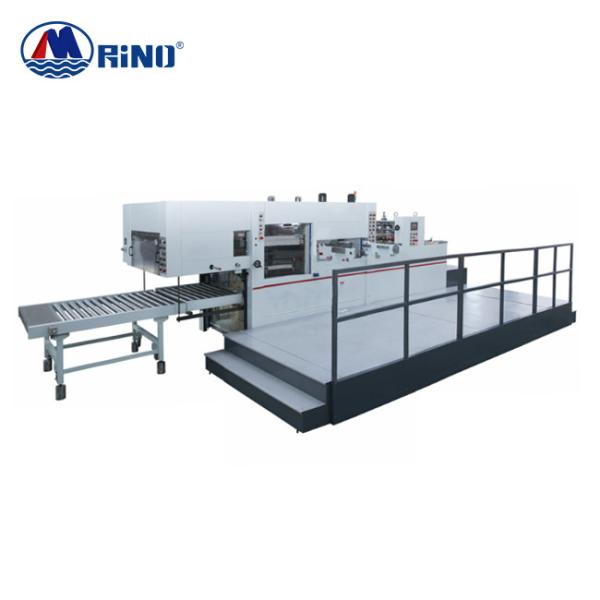

4500 Sheets/H Creasing And Cutting Machine 1650x1180mm For Carton Box
4500 Sheets/H Creasing And Cutting Machine 1650x1180mm For Carton Box
4500 Sheets/H Creasing And Cutting Machine 1650x1180mm For Carton Box
4500 Sheets/H Creasing And Cutting Machine 1650x1180mm For Carton Box
Specifications
Brand Name :
RINO
Model Number :
HD-L1650
Certification :
CE
Place of Origin :
Shandong,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
1650 Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter
Maximum paper size :
1670*1200mm
Minimum paper size :
500*550mm
Die cutting precision :
±1mm
Maximum speed :
4500 sheets/h
Power :
32KW
Weight :
23T
Minimum front scrap size :
≥8mm
Description

1650 Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter

Carton Box Die Cutting Machine Introduction

1. Fully adjustable design to make the pressure with a balance state at any time

2. More precise and stable location with front-back and left-right positioning mechanism

3. Circulate oiling system to avoid oil-lack operation of machine

4. Module design of complete machine.

5. Micro setting device of front gauge makes a faster adjustment.

6. Delivery and receive paper any working time,enhance the work efficency.

Carton Box Die Cutting Machine Parameter

Model HD-L1650
Max. paper size 1670*1200mm
Min. paper size 500*550mm
Max. die-cutting size 1650*1180mm
Max.die-cutting pressure 400N/cm2

Cardboard

Corrugated paper

 200-2000g/m2

≤6mm
Max. die-cutting speed 4500sheets/h
Max. feeding pile height 1100mm
(above the level)
Total power 32KW

Weight

 23T

Dimensions

 7000*2980*2450mm

Main Units

4500 Sheets/H Creasing And Cutting Machine 1650x1180mm For Carton Box

Paper feeding unit

Lead edge feeding system

The non-stop sampling system can check the board accurate without stop the machine
4500 Sheets/H Creasing And Cutting Machine 1650x1180mm For Carton Box

Die cutting unit

Die cutting chase fixed accurately by pneumatic lock system

Die cutting plate is putted in and out by air floating device

Electric clutch system of main chain can assure the chain steady when it is stopped at high speed
4500 Sheets/H Creasing And Cutting Machine 1650x1180mm For Carton Box

Stripping unit

The complete waste removal system can automatically remove waste materials around and in the middle to ensure clean, neat waste removal and high production efficiency.

Finished Products

4500 Sheets/H Creasing And Cutting Machine 1650x1180mm For Carton Box

Main Electrical Appliances

Equipment Brand
Timing belt Obi, Gates, EP
Mold spring
Crankshaft material and processing Japanese special steel
Vortex material and processing Japanese special steel
Vortex material and processing Japanese special steel
Cam material and processing Japanese special steel
Encoder Ikea, Switzerland

4500 Sheets/H Creasing And Cutting Machine 1650x1180mm For Carton Box
Our Factory

4500 Sheets/H Creasing And Cutting Machine 1650x1180mm For Carton Box

4500 Sheets/H Creasing And Cutting Machine 1650x1180mm For Carton Box
