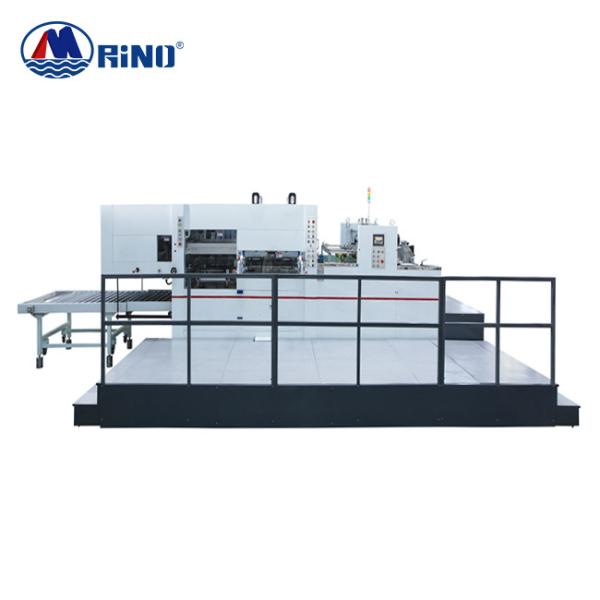

5000 Sheets/H Carton Box Die Cutting Machine , 1510*1120mm Corrugated Die Cutter
5000 Sheets/H Carton Box Die Cutting Machine , 1510*1120mm Corrugated Die Cutter
5000 Sheets/H Carton Box Die Cutting Machine , 1510*1120mm Corrugated Die Cutter
5000 Sheets/H Carton Box Die Cutting Machine , 1510*1120mm Corrugated Die Cutter
Specifications
Brand Name :
RINO
Model Number :
HD-L1500
Certification :
CE
Place of Origin :
Shandong,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
1500 Automatic Lead Edge Feeding Carton Box Die Cutting Machine Die Cutter For Corrugated Paper
Maximum paper size :
1510*1120mm
Minimum paper size :
450*550mm
Die cutting precision :
±1mm
Maximum speed :
5000sheets/h
Power :
24.5KW
Weight :
19.5T
Minimum front scrap size :
≥8mm
Description

1500 Automatic Lead Edge Feeding Carton Box Die Cutting Machine Die Cutter For Corrugated Paper

Carton Box Die Cutting Machine Introduction

1. Air clutch, clutch quickly, large power transmission.

2. Air lock plate, positioning accuracy, reliable and convenient.

3. High Precision intermittent motion mechanism

4. Imported electrical appliances,stable and reliable.

5. PLC Controlled touching screen and fault showing system makes an easy and convenience operation.

Carton Box Die Cutting Machine Parameter

Model HD-L1500
Max. paper size 1510*1120mm
Min. paper size 450*550mm
Max. die-cutting size 1490*1100mm
Max.die-cutting pressure 380N/cm2

Cardboard

Corrugated paper

200-2000g/m2

≤6mm
Max. die-cutting speed 5000sheets/h
Max. feeding pile height 1100mm
(above the level)
Total power 24.5KW

Weight

 19.5T

Dimensions

 6200*2380*2356mm

Main Units

5000 Sheets/H Carton Box Die Cutting Machine , 1510*1120mm Corrugated Die Cutter

Paper feeding unit

* Independent servo-type leading edge, paper feeding mode can adjust the transfer length arbitrarily, maximizing reduce the damage to the strength of corrugated board

* Left and right baffle can be electrically adjusted
5000 Sheets/H Carton Box Die Cutting Machine , 1510*1120mm Corrugated Die Cutter

Die cutting unit

* Safe and flexible design of the rotating device makes the board adjustment board faster and more convenient

* The frame is made of pneumatic lock plate, the protective beam and the lock nut are designed to make the template more stable
5000 Sheets/H Carton Box Die Cutting Machine , 1510*1120mm Corrugated Die Cutter

Stripping unit

The complete waste removal system can automatically remove waste materials around and in the middle to ensure clean, neat waste removal and high production efficiency.

Finished Products

5000 Sheets/H Carton Box Die Cutting Machine , 1510*1120mm Corrugated Die Cutter

Main Electrical Appliances

Equipment Brand
Timing belt Obi, Gates, EP
Mold spring
Crankshaft material and processing Japanese special steel
Vortex material and processing Japanese special steel
Vortex material and processing Japanese special steel
Cam material and processing Japanese special steel
Encoder Ikea, Switzerland
