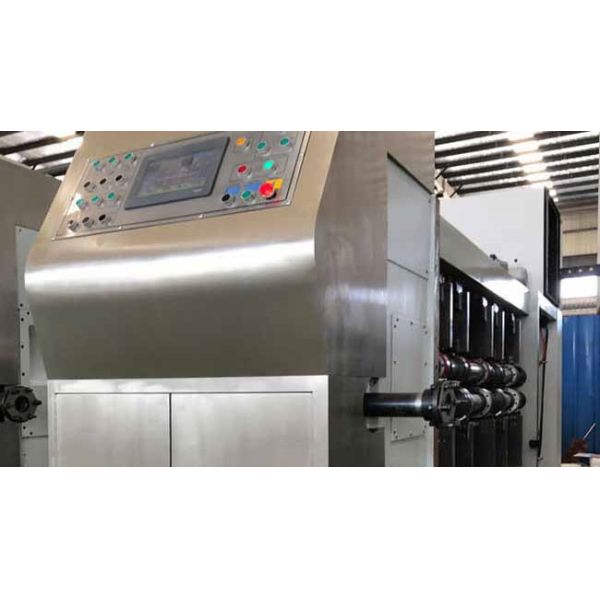

RINO Carton Box Flexo Printing Machine , 300pcs/Min Printing Carton Folder Gluer Machine
RINO Carton Box Flexo Printing Machine , 300pcs/Min Printing Carton Folder Gluer Machine
RINO Carton Box Flexo Printing Machine , 300pcs/Min Printing Carton Folder Gluer Machine
RINO Carton Box Flexo Printing Machine , 300pcs/Min Printing Carton Folder Gluer Machine
Specifications
Brand Name :
RINO
Model Number :
HP-LM900
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
Flexo Printer Slotter Machine Automatic Die Cutter Folder Gluer Production Line For Carton Box
Maximum speed :
300pcs/min
Maximum feeding size :
900mm×2000mm
Minimum feeding size :
320mm×650mm
Maximum printing size :
850mm×1900mm
Paper feeding precision :
±1.0mm
Printing precision :
±0.5mm
Voltage :
220V/380V
Description

Flexo Printer Slotter Machine Automatic Die Cutter Folder Gluer Production Line For Carton Box

Machine Introduction of Flexo Printing Machine

• Adopt the printing plate change without machine stop of the world advanced technology to save the time of plate mounting and greatly improve the efficiency;

• The automatic production management system needs merely input the order of size on touch screen, then the feeder, printer, slotter, die cutter will automatically adjust all the clearances,axial,circumferential and other parameters accordingly to ensure the great accuracy and reliability without manual intervention at all and achieve full automatic adjustment and improve productionefficiency of company;

• 50-133LPI high and low line printing does not only guarantee high precision and high definition of high line printing, but also enable the ordinary printing on kraft linerboard and white board to realize of a multi-purpose printings with one machine for saving costs;

• The max mechanical speed can be 300sheets/min;



Parameter Flexo Printing Machine

Maximum speed 300pcs/min

Maximum feeding size

 900mm×2000mm
Skip feeding 1100mm×2000mm
Minimum feeding size 320mm×650mm
Maximum printing size 850mm×1900mm
Paper feeding precision ±1.0mm
Printing precision ±0.5mm
Die cutting precision ±1.0mm
Slotting precision ±1.5mm


Main units

RINO Carton Box Flexo Printing Machine , 300pcs/Min Printing Carton Folder Gluer Machine
Leading edge paper feeding unit

1. Wheel type leading edge feeder with vacuum absorption of fast feeding speed, high efficiency and stable system performance ensures smooth conveyance even the warp blanks at max 300sheets/min.
2. With high precise sheet conveyance, the suitable sheet thickness is 1.5—12mm;
3. Automatic side squaring unit is equipped for blanks neat;
RINO Carton Box Flexo Printing Machine , 300pcs/Min Printing Carton Folder Gluer Machine

Printing unit

The printer has the function of plate replacement without machine stop of the world advanced technology. When machine is running, printing plate mounting or change can be carried out in printer without machine stop to greatly improve the efficiency;
RINO Carton Box Flexo Printing Machine , 300pcs/Min Printing Carton Folder Gluer Machine
Slotting unit

The clearance between paper pulling cylinders can be set on touch screen in electrical and digital modes; the creasing wheels are wrapped with PU covering to protect corrugated blanks;


RINO Carton Box Flexo Printing Machine , 300pcs/Min Printing Carton Folder Gluer Machine
