1600mm Carton Box 4 Color Flexo Printing Machine 40KW 380V Lead Edge Feeding
1600mm Carton Box 4 Color Flexo Printing Machine 40KW 380V Lead Edge Feeding
1600mm Carton Box 4 Color Flexo Printing Machine 40KW 380V Lead Edge Feeding
1600mm Carton Box 4 Color Flexo Printing Machine 40KW 380V Lead Edge Feeding
Specifications
Brand Name :
RINO
Model Number :
HP-LM1600
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
1600 Carton Box Lead Edge Feeding 4 Color Flexo Printing Machine With Slotter Die Cutter Stacker
Grade :
Automatic Type
Weight :
40000kgs
Voltage :
380V
Slotting precision :
±1.5mm
Tinted precision :
±0.5mm
Power Supply :
40KW
Design speed :
200Pcs/Min
Description

1600 Carton Box Lead Edge Feeding 4 Color Flexo Printing Machine With Slotter Die Cutter Stacker

Carton Box Flexo Printing Machine Introduction

1. Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .

2. All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.

3. Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.

4. The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

5. The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.

6. Phase adjustment adopt PLC control with touch screen

7. The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.

Parameter of Carton Flexo Printing Machine

Width

mm

4000

Maximum Paper feeding size

mm

1600×3800

Effective printing size

mm

1600×3600

Minimum Paper feeding size

mm

350×650

Thickness of printing plate

mm

7.2

Design speed

sheets/mi
n

200

Economic speed

sheets/mi
n

150-180

Main motor

KW

20

Total power

KW

30-40

Weight

T

15

Tinted precision

mm

±0.5

Slotting precision

mm

±1.5

Main units

1600mm Carton Box 4 Color Flexo Printing Machine 40KW 380V Lead Edge Feeding

Paper feeding unit

It can send paperboard continuously or by skip (with counting device).

Electric controlling the clutch of the machine platform with alarm in order to ensure operator safe.
1600mm Carton Box 4 Color Flexo Printing Machine 40KW 380V Lead Edge Feeding

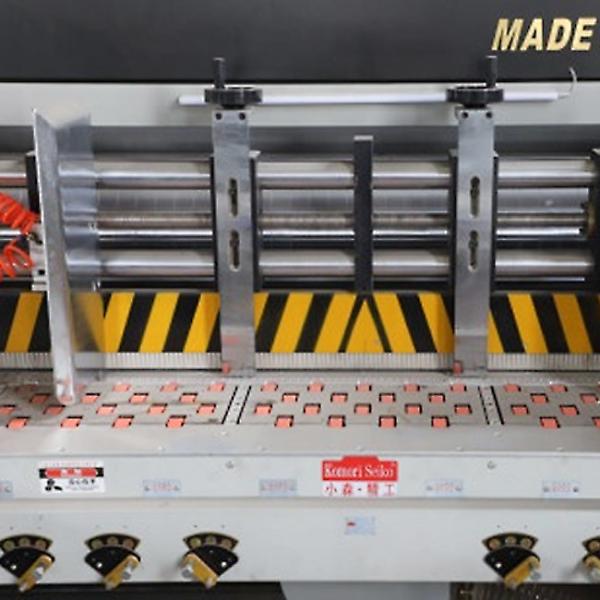

Printing unit


The surface of the printing roll is plated with hard chrome and polished.The balance correction is made to make it run smoothly.Using ratchet fixed plate, and a full - format plate slot, can make the printing plate cling on the printing roller.Loading and unloading printing plate, foot switch can be used to electrically control the positive and negative rotation, easy to operate.

Packaging&shipping

Factory Show

1600mm Carton Box 4 Color Flexo Printing Machine 40KW 380V Lead Edge Feeding
