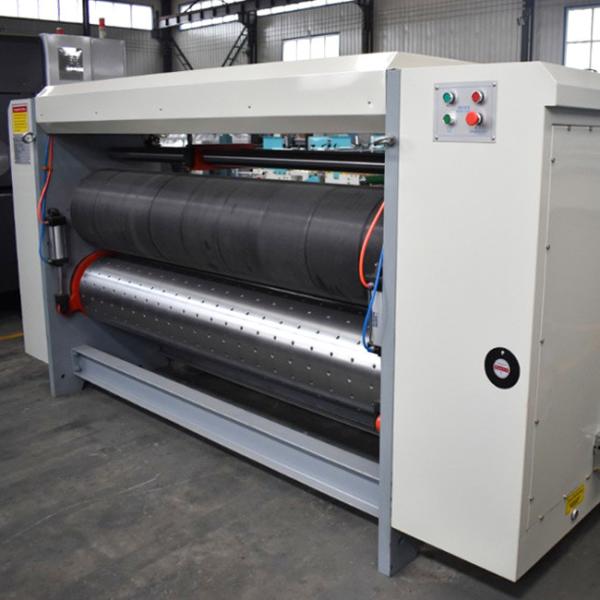

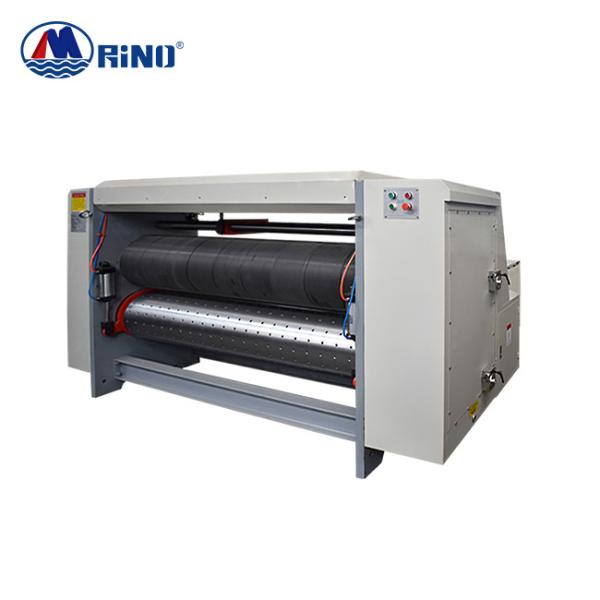

1200x2800mm Rotary Die Cutter For Corrugated 60pcs/Min Semi Automatic
1200x2800mm Rotary Die Cutter For Corrugated 60pcs/Min Semi Automatic
1200x2800mm Rotary Die Cutter For Corrugated 60pcs/Min Semi Automatic
1200x2800mm Rotary Die Cutter For Corrugated 60pcs/Min Semi Automatic
Specifications
Brand Name :
RINO
Model Number :
HD-CR1200
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
Chain Feeding Semi Automatic Rotary Die Cutting Corrugated Carton Box Making Machine
Maximum paper feeding size :
1200*2800mm
Thickness of feeding paperboard :
1-10mm(3-7 layer)
Power of main motor :
7500W
Maximum Speed :
60pcs/min
Bearings :
HA,WA,LUO
Minimum paperboard size :
350*450mm
Volatge :
220V/380V
Description

Chain Feeding Semi Automatic Rotary Die Cutting Corrugated Carton Box Making Machine

Machine Features Of Carton Box Die Cutting Machine

1. The chain feeding method and the position of the gear set on both sides ensure the feeding accuracy.
2. Die-cutting roller 360 degree electric adjustment, digital display, electronic counter.
3. High-frequency processing of all gears and automatic spray lubrication greatly improve the operation accuracy and service life.
4. High-quality steel, internal tempering, surface grinding, hard chrome plating, dynamic balance correction, stable operation.
5. American CUE company imported die-cutting rubber pad, easy to install and replace, smooth die-cutting blade, and the service life can reach 12 million times, which greatly reduces the production cost.
6. The die-cut rubber cushion roller adopts a mechanical lateral moving device, about 40mm, controlled by a pneumatic device. The mold moves up and down to extend the life of the rubber pad.
7. Automatic line speed compensation, the high-strength rubber pad wears evenly, and is equipped with a rubber pad repair system, the rubber pad can be repaired multiple times.
8. The function of die-cutting without template can be added.

Parameter Carton Box Die Cutting Machine

Model Maximum paper feeding size(mm) Thickness of feeding paper Power of main motor(kw) Speed

HD-CR1200

 1200*2800 1-10mm(3-7 layer) 7.5 60pcs/min

Finished Products

1200x2800mm Rotary Die Cutter For Corrugated 60pcs/Min Semi Automatic

1200x2800mm Rotary Die Cutter For Corrugated 60pcs/Min Semi Automatic

Packaging&Shipping

1200x2800mm Rotary Die Cutter For Corrugated 60pcs/Min Semi Automatic
