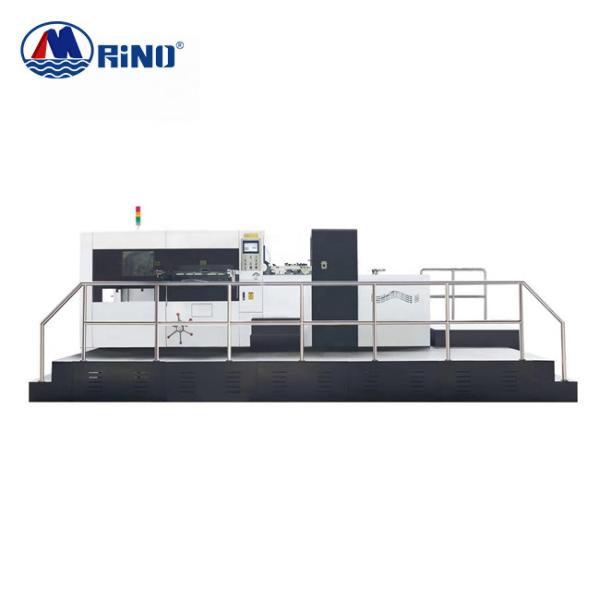

Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine
Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine
Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine
Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine
Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine
Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine
Specifications
Brand Name :
RINO
Model Number :
HD-L1650
Certification :
CE
Place of Origin :
Shandong,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
Carton Box Die Cutting Machine Automatic Leading Edge Feeding Punching Machine Die Cutter
Maximum paperboard size :
1670*1200mm
Minimum paperboard size :
500*550mm
Die cutting precision :
±1mm
Maximum speed :
4500sheets/h
Power :
32KW
Weight :
23000kg
Minimum front scrap size :
≥8mm
Description

Carton Box Die Cutting Machine Automatic Leading Edge Feeding Punching Machine Die Cutter

Carton Box Die Cutting Machine Introduction

1. Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI.
2. Patented design shock absorption system can prolong the life of main body and increase the pressure.
3. The intermittent gearbox made in Taiwancan assure the accurate registration and decrease the gripper attack.

Carton Box Die Cutting Machine Parameter

Model HD-L1650
Max. paper size 1670*1200mm
Min. paper size 500*550mm
Max. die-cutting size 1650*1180mm
Max.die-cutting pressure 400N/cm2

Cardboard

Corrugated paper

 200-2000g/m2

≤6mm
Max. die-cutting speed 4500sheets/h
Max. feeding pile height 1100mm
(above the level)
Total power 32KW

Weight

 23T

Dimensions

 7000*2980*2450mm

Main Units

Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine

Paper feeding unit

Additional brush wheels and pressing wheels for thin paper and corrugated board running

Advance push and pull lay of registration can assure the die cutting precision

Rikko light front lay detection system prevent the slanting paper move in main body
Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine

Die cutting unit

Main chain and assist chain is lubricated periodically controlled by PLC

Protection window of diecutting can hold the main body clean

Lightweight and durable aluminum alloy 5-piece gripper bars with chain of Renold UK ensure accurate
Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine

Electrical unit

The whole machine adopts PLC centralized control system

Adopt Japan Yaskawa inverter

Finished Products

Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine

Main Electrical Appliances

Equipment Brand
Timing belt Obi, Gates, EP
Mold spring
Crankshaft material and processing Japanese special steel
Vortex material and processing Japanese special steel
Vortex material and processing Japanese special steel
Cam material and processing Japanese special steel
Encoder Ikea, Switzerland

Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine
Our Factory

Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine

Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine
