Corrugated Slotter Machine Carton 1600*2400mm for cardboard press line
Corrugated Slotter Machine Carton 1600*2400mm for cardboard press line
Corrugated Slotter Machine Carton 1600*2400mm for cardboard press line
Corrugated Slotter Machine Carton 1600*2400mm for cardboard press line
Specifications
Brand Name :
RINO
Model Number :
HR-S41600
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100 Set/Month
Delivery Time :
20 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
Economic Corrugated Rotary Slotter Carton Box Making Slotting Machine
Max. Feeding Paper  :
1600*2400mm
Max. Speed of Machine :
60pcs/min
Paper Slotting Width :
7.5mm
Main power :
4000w
Usage :
Carton box slotting and creasing
Phase adjustment method :
Electric 360°
Econimic Speed :
40-50 pcs/min
Description

Economic Corrugated Rotary Slotter Carton Box Making Slotting Machine

Machine Introduction of Corrugated Rotary Slotter Machine

1. This machine is the one-off finished high efficiency equipment which can finish cardboard press line, mend margin, cut once.

2. Adopts chain drive paper feeding system, set grade adjust suction, let flexual cardboard automatic favourably entered.

3. Slot blade phase adopts 360 degree electric position and negative turn slightly adjust, blade axes treated by rigidity chroming electroplate, andnicety grinding, firmness durable.

4. Gear lubricate, adopt spout out style cyc. Reduce noise, prolong gear using life.

Corrugated Rotary Slotter Machine Parameter

Model

The Max. Feeding Area

(mm)

 The Max. Working Speed
(sheet/min)

The Slotting Width

(mm)

The Main Motor power

(KW)

HR-S4900

 900*2400 60 7.5 4

HR-S41200

 1200*2400 60 7.5 4

HR-S41400

 1200*2400 60 7.5 4

HR-S41600

 1600*2400 60 7.5 4

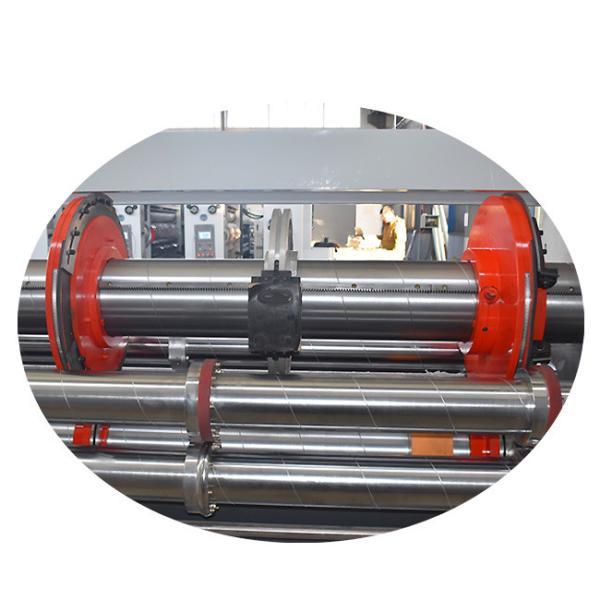

Detailed Picture

Corrugated Slotter Machine Carton 1600*2400mm for cardboard press line

Corrugated Slotter Machine Carton 1600*2400mm for cardboard press line

FAQ

1. Q: What is the machine warranty?
A :one year.
2. Q: What is the production time while placing order?
A: About 20 days
3. Q: What is the delivery time?
A: 40-60 days after get the payment.
4. Q: Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q: Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q: Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
