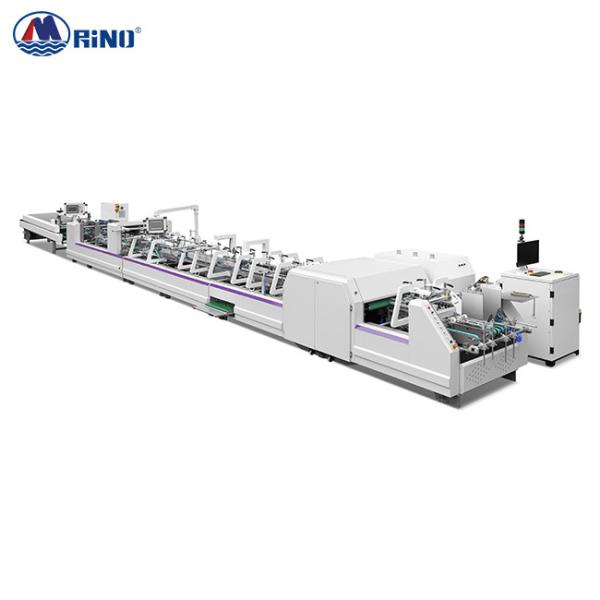

RINO High Speed Folding And Gluing Machine , Paper Folder Gluer Machine
RINO High Speed Folding And Gluing Machine , Paper Folder Gluer Machine
RINO High Speed Folding And Gluing Machine , Paper Folder Gluer Machine
RINO High Speed Folding And Gluing Machine , Paper Folder Gluer Machine
Specifications
Brand Name :
RINO
Model Number :
HF-GBL780
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
780 4 6 Corner Lock Bottom Straight Line High Speed Folding And Gluing Machine
Suitable paperboard :
Card board 210gsm-800gsm
Maximum speed :
350m/min
Overall dimension :
14000*1500*1400mm
Weight :
6.5T
Power consumption :
11.8KW, 220V/380V,50HZ/60HZ
Usage :
Paper Folding Gluing
Glue type :
Hot melt glue
Description

780 4 6 Corner Lock Bottom Straight Line High Speed Folding And Gluing Machine

Folding And Gluing Machine Characteristics

1. Use electric adjust, easy operate.

2. Automatic continuous feeding, use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.

3. Automatic counting and kicking, quantity can preset.

4. Conveyer pressure adjustable according to the box to ensure best quality.

5. The move row adopts the two-way screw rod to adjust,fast and simple.
6. The transmission adopts the synchronous belt and mast top,accurate,ensure to paste box perfect quality.
7. Pre-folded function can develop the production efficiency,forma complete set with the automation packing.
8. The press and delivery part can move front and back,so as to provide the convenience to wine box and long box.
9. The photoelectricity countand automatic kick board are assort ,accurate and convenience.

Folding And Gluing Machine Parameter

HF-GBL780
Straightline box Double sides box Crash-lock bottom box 4-corner box 6-corner box
A MAX 800 720 730 700 700
MIN 100 100 130 150 200
B MAX 1000 700 800 500 500
MIN 60 70 60 60 80
C MAX 250 180 180 120 120
MIN 8 10 25 20 20

RINO High Speed Folding And Gluing Machine , Paper Folder Gluer Machine

Main units

RINO High Speed Folding And Gluing Machine , Paper Folder Gluer Machine

Paper feeding unit

1. Suction feeding belt ,more fast and stable.
2. Scalable paper stack at the back of the support for longer box.
RINO High Speed Folding And Gluing Machine , Paper Folder Gluer Machine

Bottom locked unit

Other top electronic spray adhesive system configuration can choose according to the needs of aircraft configuration.
RINO High Speed Folding And Gluing Machine , Paper Folder Gluer Machine

Pressing unit

Independent motor drive; (follow) manual and automatic operation mode.

Standard & Optional configuration list

Configuration Units Standard Optional
1 Feeder section √
2 Paper Alignment Section √
3 Pre-fold Section √
4 Crash lock bottom section √
5 Upper paste barrel equipment √
6 Down pasting equipment(R+L) √
7 Gluing system √
8 Grinder device
9 Plasma treatment system √
10 Folding and closing section √
11 Trombone section √
12 Press section √
13 Table (one) √
14 monitor √
15 Double-sided adhesive √

Finished Product

RINO High Speed Folding And Gluing Machine , Paper Folder Gluer Machine

RINO High Speed Folding And Gluing Machine , Paper Folder Gluer Machine
