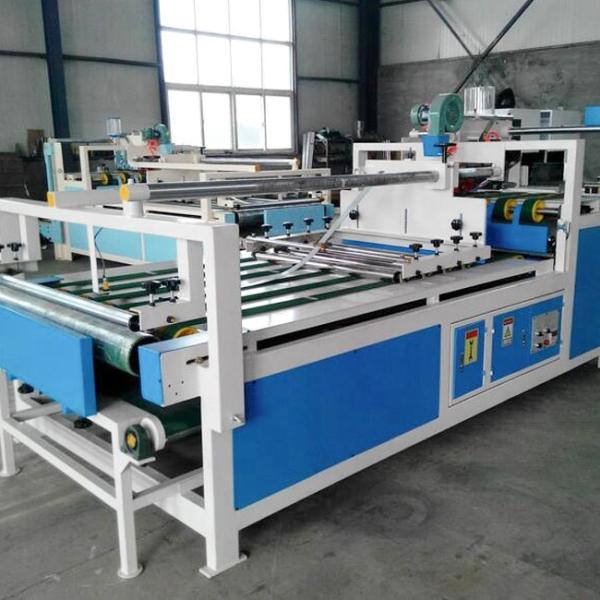

2200w Semi Automatic Folder Gluer Machine
2200w Semi Automatic Folder Gluer Machine
2200w Semi Automatic Folder Gluer Machine
2200w Semi Automatic Folder Gluer Machine
Specifications
Brand Name :
RINO
Model Number :
HF-2800
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20 Set/Month
Delivery Time :
20 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Maximum paperboard length :
2800mm
Minimum paperboard length :
340mm
Name :
Semi Automatic Carton Box Folder Gluer Machine Pasting Folding Gluiing Machine
Maximum corrugated cardboard width :
1515mm
Minimum corrugated paper cardboard width :
250mm
Feeding cardboard height :
900mm
Main motor Power Supply :
2200w
Machine weight :
2 MT
Description

Semi Automatic Carton Box Folder Gluer Machine Pasting Folding Gluiing Machine

Carton Box Folder Gluer Introduction

This machine is suitable for folding and gluing all kinds of cardboard. The operation is simple and no training is required. Quickly change orders in one minute. The carton glue is the smallest. The size is 260 mm. It is the best choice for carton manufacturers.
The main structure of the machine


1. The semi-automatic gluing machine consists of a host and two small conveyors.

2. The main forms include template, upper and lower worktables, front feeding section, front proofing section, middle conveying section, middle pressure section, side carton conveying section, and electrical control system.

Parameter

Max cardboard size (length +width)*2(mm) 2800
Min cardboard size (length +width)*2(mm) 340
Max cardboard size (width +height) (mm) 1515
Min cardboard size (width +height) (mm) 250
Feeding cardboard height(mm) 900
Power of main motor 2.2
Machine weight(kg) 2000
Machine speed(pieces /min) 40
Dimension(mm) length *width *height 5500 x 1800 x 2000

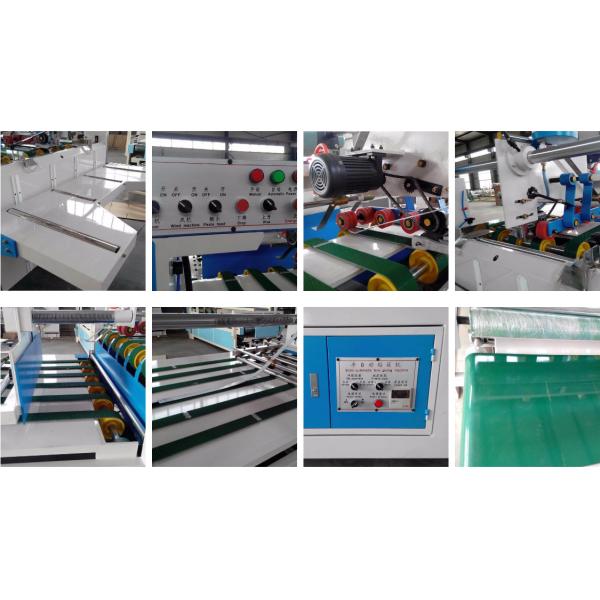

Machine Details

2200w Semi Automatic Folder Gluer Machine2200w Semi Automatic Folder Gluer Machine
