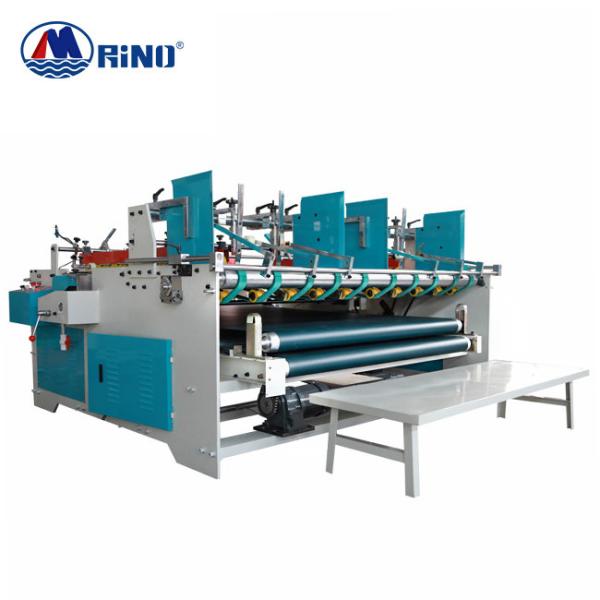

Corrugated Board Semi Automatic Gluing Machine 1.45 Tons CE Certificate
Corrugated Board Semi Automatic Gluing Machine 1.45 Tons CE Certificate
Corrugated Board Semi Automatic Gluing Machine 1.45 Tons CE Certificate
Corrugated Board Semi Automatic Gluing Machine 1.45 Tons CE Certificate
Corrugated Board Semi Automatic Gluing Machine 1.45 Tons CE Certificate
Corrugated Board Semi Automatic Gluing Machine 1.45 Tons CE Certificate
Specifications
Brand Name :
RINO
Model Number :
HF-GH2000
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
Semi Automatic Gluing Carton Box Folder Gluer Machine Corrugated Board Box Gluer Machine
Voltage :
220V
Power Supply :
3.8kw
Hz :
50 or 60hz
Weight :
1450kgs
Overall dimension size :
2200x2650x1300mm
Max size of cardboard :
2000x1100mm
Min size of cardboard :
200x260mm
Description

Semi Automatic Gluing Carton Box Folder Gluer Machine Corrugated Board Box Gluer Machine

Carton Box Folder Gluer Machine Introduction

Semi-auto Gluer machine(Combined pressure Model) is the latest exploit. According to the Small order of the user,it has a small Volume and cover an area of small.Easy operation without having experienced, Suitable for transform small batch products,Applicable range is very wide,Ordinary carton,Heterogeneous shape can be glued,Max Mechanical speed is 56m/min ,Effciency is higher 4 times than manual operation;Adhesive is strong, Tidy not leak adhesive, Light membrane of plastic coated of Sticky mouth section can be polished and removed by two-headed burnish implement, lmprove the glue adhesive,Solve the cartons are easy to opening glue problem in some seasons,in this machine , folding carton is manual,lmprove the work efficiency meanwhile correct wrong indetation line.

Parameter Of Carton Box Folder Gluer Machine

Model

HF-GH1500

HF-GH1800

HF-GH2000
Voltage According customer need According customer need According customer need
Power 3.2kw 3.2kw 3.8kw
Hz 50/60hz 50/60hz 50/60hz
Weight 1.0tons 1.3tons 1.45tons
Overall size 2200x1900x1300mm 2200x2400x1300mm 2200x2650x1300mm
Max size of box 1500x1100mm 1800x1100mm 2000x1100mm
Min size of box 200x260mm 200x260mm 200x260mm

Packaging&Shipping
