1800mm Corrugated Board Production Line Shaft Less Mill Roll Stand
1800mm Corrugated Board Production Line Shaft Less Mill Roll Stand
1800mm Corrugated Board Production Line Shaft Less Mill Roll Stand
1800mm Corrugated Board Production Line Shaft Less Mill Roll Stand
1800mm Corrugated Board Production Line Shaft Less Mill Roll Stand
1800mm Corrugated Board Production Line Shaft Less Mill Roll Stand
Specifications
Brand Name :
RINO
Model Number :
HH-M1800
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
1800 Corrugated Board Production Line Hydraulic Shaft Less Mill Roll Stand
Max. working width :
1800mm
Min. working width :
900mm
Max. paper mill diameter :
1500mm
Max working pneumatic pressure :
0.6-0.9Mpa
Power requirements :
380V, 50Hz
Length of track for carry paper mill :
6000mm
Usage :
Kraft Paper Holder Feeding
Description

Corrugated Board Production Line Hydraulic Shaft Less Mill Roll Stand

Features of Hydraulic Shaft Less Mill Roll Stand

* Made of QT450(cast iron), Single arm loads 3000kg, 6 set ot hydraulic cylinder control

* Internal expanding type Clamp chuck without damage roll paper core

* Multi-point brake realizes perfect tension balance control, produce high quality cardboard, reduce paper brake

* Heavy rail track to convey roll paper smoothly

* Auto-centering device ensure the centering of Roller paper

* Connect to the PLC network to realize synchronous tension control( Need Splicer and PMS system

Parameter of Hydraulic Shaft Less Mill Roll Stand

Product Name
Hydraulic Mill Roll Stand
Width
1200-2800mm
Roll Paper Min. width
1200-2000mm: 800mm
2000-2800mm: 1200mm
Roll paper diameter
Max. 1500mm
Support Weight
Max. 3Tons
JIG
Standard: Inner expanding chuck
Option: Zero waste type chuck
Feeding trolley
6/7/8/10m, manual/electric/hydraulic, option. 2 heavy track
Brake
Pneumatic, multi-point brake
Material
Cast Iron
Network control
Available, need to connect to Auto Splicer, Automatic tension adjustment
Centering device
Option
Connect with Roll paper conveying system
Available

Hydraulic Shaft Less Mill Roll Stand Introduction

1800mm Corrugated Board Production Line Shaft Less Mill Roll Stand 1800mm Corrugated Board Production Line Shaft Less Mill Roll Stand

1 .Automatic alignment for paper core and clamp it.

2. Ball screw drive, lateral moving of hydraulic cylinder + detector, guide rail is provided; realizeΦ350-1500 automatic correction and clamping of scroll, automatic centering and automatic paper feed.

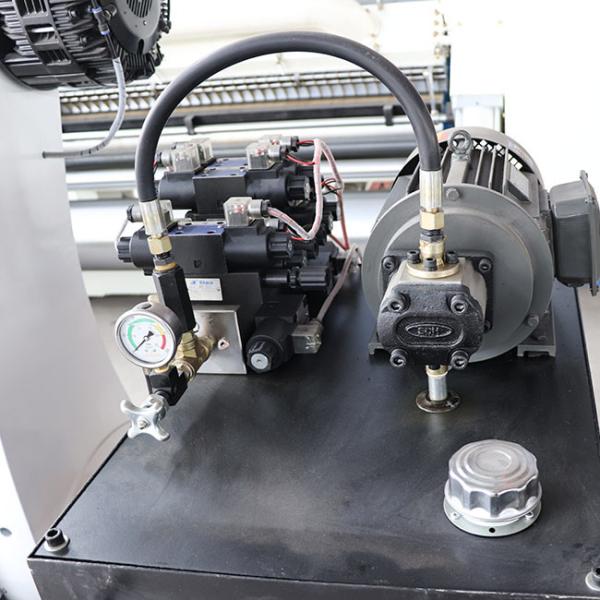

3. Hydraulic lifting and lateral moving.

4. Pneumatic adjustment is adopted for tension control; multi-point braking system is adopted.

5. Integral welding structure is adopted for feather key and supporting axle, so as to guarantee the service life.

6. Single-step 3-inch expandable chuck applied as the standard reel chuck.

7. Paper roll can be fed in/out from both left and right sides of the machine.
