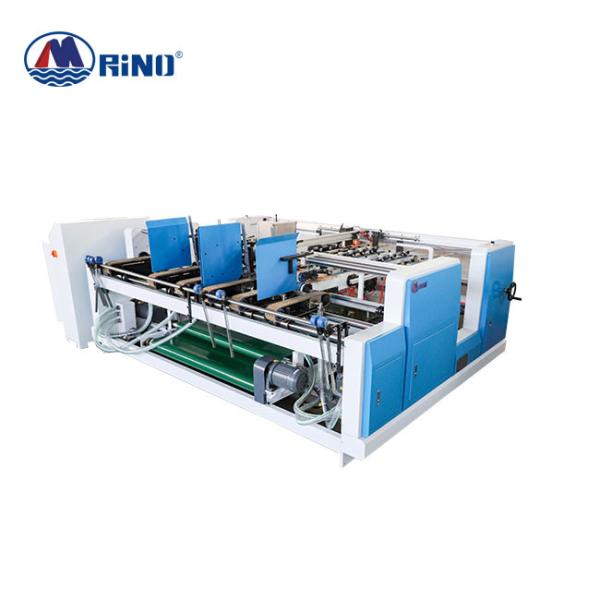

2.4 Ton Cardboard Carton Box Gluer Machine Pressing Type 1150×1060mm
2.4 Ton Cardboard Carton Box Gluer Machine Pressing Type 1150×1060mm
Specifications
Brand Name :
RINO
Model Number :
HF-GD2300
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20 Set/Month
Delivery Time :
40-60 Working Days After Deposit
Packaging Details :
Wrapped with film or in wooden case
Name :
2.4Ton Carton Box Gluer Machine Pressing Type 1150×1060mm Cardboard Gluing
Maximum Paper Size :
1150×1060mm
Minimum Paper Feeding Size :
450×260mm
Maximum Height Of Stack :
400mm
Machine Speed :
0-3000 pieces/hour
Total Power :
11 kw
Total Weight :
2.4 T
Overall Dimensions Size :
3000×3050 ×1460mm
Description

2.4Ton Carton Box Gluer Machine Pressing Type 1150×1060mm Cardboard Gluing

Carton Box Gluer Machine Introduction


1. Stable operation, high precision, rapid adjustment, and wide application range.

2. Paper feeding mechanism: It adopts double suction and double feed independent control to ensure smooth and reliable paper feeding and higher paper feeding precision.

3. Paper feeding mechanism: A and B pieces are separately driven to avoid paper box grinding caused by paper feeding error.



Parameter of Carton Box Gluer Machine

Model HF-GD2300
Maximum Size

1150×1060mm
Minimum size

450×260mm

Applicable
Paper

A-E 3/5ply corrugated board
and cardboard
Maximum speed

0-3000 pieces/hour
Total power 11 kw
Weight 2 .4 TON
Dimensions

3000×3050
×1460mm


Carton Box Gluer Machine Detail

2.4 Ton Cardboard Carton Box Gluer Machine Pressing Type 1150×1060mm

Main parts list

PARTS NAME BRAND
FEEDING MOTOR ZHONGDA (ZD CHINA)
FEEDING PUMP NAXIDE (CHINA )
LINEAR GUIDEWAY KOREA IMPORTED
GUIDE SCREW HIWIN TAIWAN
SOLENOID VALVE AIRTAC TAIWAN
INVERTER TAIWAN DELTA
SERVO MOTOR DELTA TAIWAN
HUMAN MACHINE INTERFACE TAIWAN DELTA
POWER TAIWAN DELTA
PROGRAM CONTROLLER TAIWAN DELTA
FASTENERS TAIWAN JINYI, PENGCHI,
RELAY JAPAN IMPORTED
BUTTON SCHNEIDER
PAPER FEED BELT TAIWAN IMPORTED
EXCITED PAPER FEEDING BELT TAIWAN IMPORTED
BEARING RENBEN NSK.HRB
PROXIMITY SWITCH XINLING
THERMOSTAT XINLING
GLUING MOTOR CHINA
FORWARD PAPER ALUMINUM PLATE CHINA
TIMING BELT IMPORTED
CLUTCH CHINA

Packing&Shipping

2.4 Ton Cardboard Carton Box Gluer Machine Pressing Type 1150×1060mm
