Specifications
Brand Name :
YUSH
Model Number :
NC-D
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 60,000~160,000 per set
Payment Terms :
T/T
Supply Ability :
15 sets per month
Delivery Time :
30~60 working days
Packaging Details :
well packaged to loaded in container
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Function :
double-layer cutting corrugated cardboard to sheet at different length
Warranty :
One year
Size :
Customized
Speed :
Customized
Color :
Customized
Voltage :
made to customer request
Type :
double layer stacker to fit duplex cut-off machine
Description

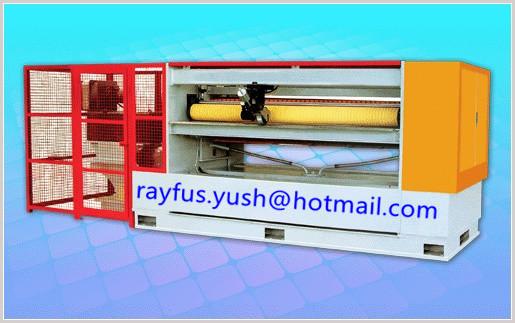

NC Duplex Rotary Cut-off, helical-knife, servo-control, for Corrugated Cardboard Production Line
NC Double-layer Helical-knife Rotary Cut-off

Technical Parameters:

1) Uses the independent oil pump and the filter coordinates two groups of copper tubes to distribute in various gears position for the oil, the lubrication and cooling.
2) Helical knife structure, type saw tooth knife, decrease cutting obstruction, low noise.
3) Balance treatment: high quality alloy steel, for blade shaft, which helps to keep it good stability.
4) Sun-shape wheels press cardboard in the front and the rear conveyer. The transporting is stable and with even pressure, which avoid jam caused or broken cardboard.
5) This type of Cut-off just consume the one of third energy compare with the common cutter with its especial structure, economize above 70% energy to get more money.
6) Exact and adjustable on gap gear assure knife-edge joggle exactly. Running balanceable.
7) Computer system to keep order. Man-machine conversation system NC. Automatic adjust cutting speed by cardboard specification and matching.

8) The screen displays various production messages. Can consult, modification, super addition and cancel order during running machine.

9) Double layer cut corrugated cardboard to sheets at different length at same time.

10) Tow layer independent control and driving system, combined in one machine, to save space.

Technical Parameters:

Max Effective Width 1100~2500mm
Cutting Length 500~9999mm
Cutting Precision ±1.0mm
Design Speed 100~250m/min
Working Speed 80~220m/min
Remarks Need Double-layer Stacker to fit Duplex Cut-off machine

3/5/7-layer Corrugated Cardboard Production Line
