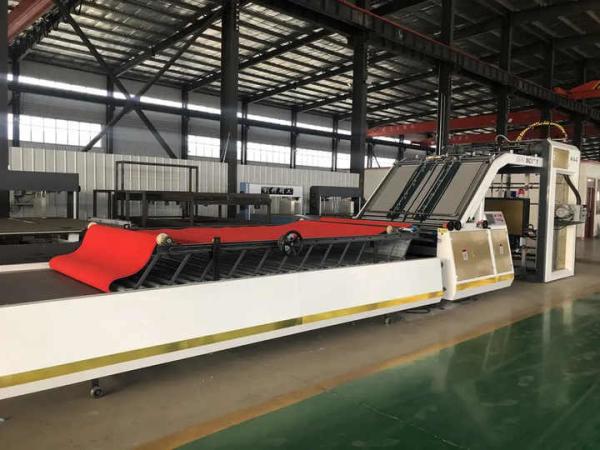

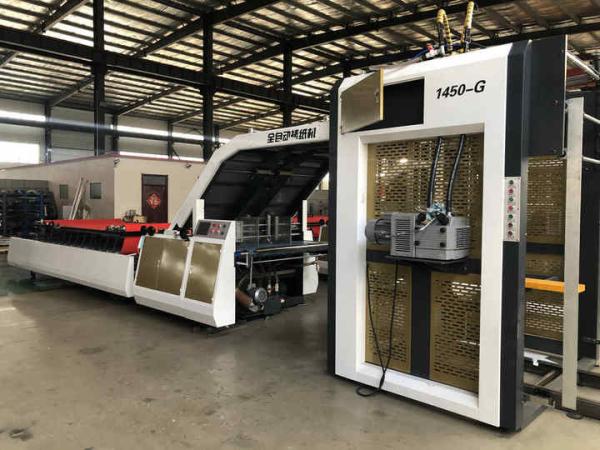

Paper Flute Laminate Corrugated Carton Box Machine

Automatic Carton flute laminating machine are designed for laminating cardboard and cardboard, cardboard and corrugated board(Flute shape A, B, C, D, E, F and N), 3-layer, 5-layer, or 7-layer corrugated paperboard all can be laminated smoothly and accurately. Famous internal or foreign foreign manufacturers make all the main components with long service life and excellent stability. Electrical components of internationally known brands are adopted to ensure reliability of running. This machine features stability, high precision, easy operation, saver of time and labour, maintenance of convenience, etc

1, The machine adopts unique pressing spring front lay registration design complain with PLC control system with makes run at high lamination precession and low rate of breaking down. 2, The machine uses frequency converter for speed regulation, PLC central, simulation to digit program system Double servo motors are used to control bottom sheets to get to the front lay timely and accurately. Thus the machine accuracy is ensures even in operation adjusting conditions. 3, Balance-tested rollers, tight assembling technique, plus timing belts driving mechanic system makes the machine run at low noise with high precision. 4, The machine adopts automatic glue supply and recyclable glue decollating system. 5, Self-developer high-strength feeder complaint with high configuration electric system. 6, The electric parts used are all word side available brand or well-known Chinese brand. 7, All material are inspected according to ISO-9001 standard and the key parts such as besting are importanted ones. 8, The face sheet for this machine can be 150-450GMS,The bottom sheet can be A,B,C,D,E,F flue corrugators sheet as well as 3 ply board or 5 ply card board with the maximum thickness not more than 8mm
