3 5 7 Layer Corrugated Carton Box Machine Cardboard Production Line
3 5 7 Layer Corrugated Carton Box Machine Cardboard Production Line
3 5 7 Layer Corrugated Carton Box Machine Cardboard Production Line
3 5 7 Layer Corrugated Carton Box Machine Cardboard Production Line
3 5 7 Layer Corrugated Carton Box Machine Cardboard Production Line
3 5 7 Layer Corrugated Carton Box Machine Cardboard Production Line
3 5 7 Layer Corrugated Carton Box Machine Cardboard Production Line
3 5 7 Layer Corrugated Carton Box Machine Cardboard Production Line
3 5 7 Layer Corrugated Carton Box Machine Cardboard Production Line
3 5 7 Layer Corrugated Carton Box Machine Cardboard Production Line
Specifications
Brand Name :
Hh
Model Number :
1600mm 1800mm 2000mm
Certification :
CE EAC
Place of Origin :
CHINA
MOQ :
1
Price :
negotiated
Payment Terms :
T/T
Supply Ability :
2 sets every month
Delivery Time :
40-70 days
Packaging Details :
plastic
Description

3 5 7 Layer Cardboard Production Line Corrugated Carton Box Machine

Introduction:

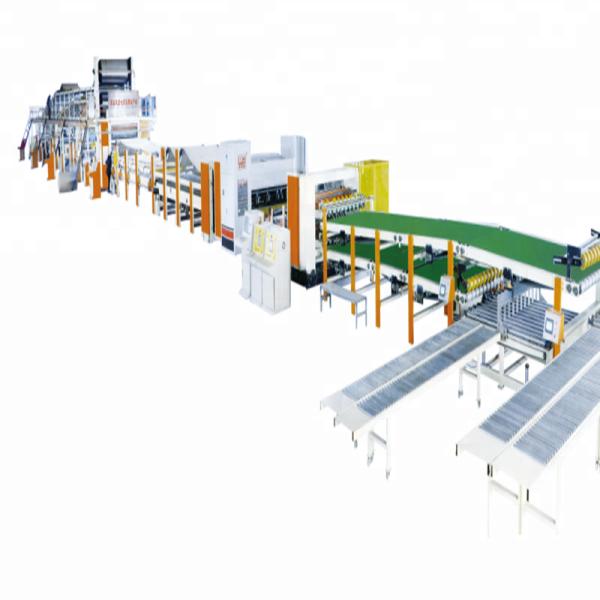

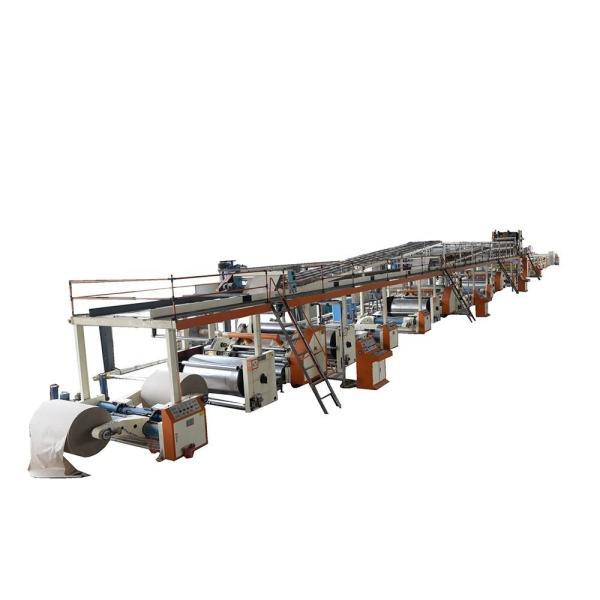

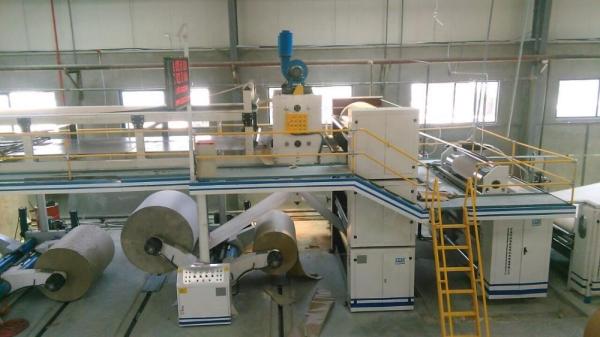

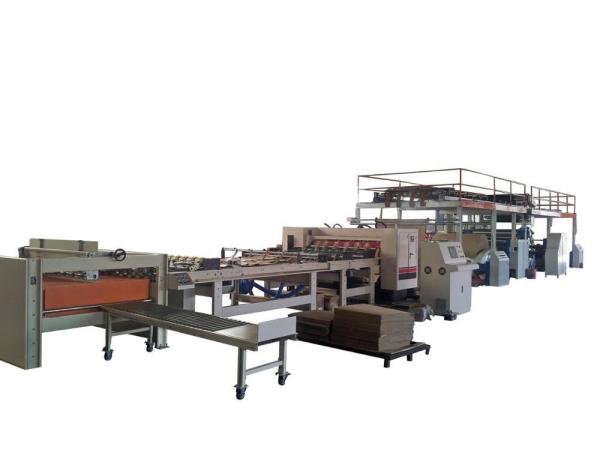

Corrugated paperboard production line includes mill roll stand,single facer,pre-heater jar,conveyor bridge,gluing machine,thin blade slitter scorer,NC cut off machine and auto-stacker,then produce high quality board,which can reach high speed and high performance. We can produce the three ply,five ply and seven ply corrugated cardboard production line,width ranges from 1400mm to 2200mm,production speed ranges from 60 to 300 meter/min.Customer can choose production capacity according to his own needs.

Parameter:

Model Design Speed(m/min) Economic Speed(m/min) Working Width(mm) Multi-ply Board
100 100 60-80 1400-2000 3/5/7 ply
150 150 80-120 1400-2200 3/5/7 ply
200 200 120-150 1400-2200 3/5/7 ply


High Precision Alloy Steel Corrugated Roller

Tungsten Carbide Corrugated Roller

Main characteristics:

1.The material is high quality CrMo alloy steel or quality roller coated with tungsten.

2.Flute is UV shape which is widely used in the world, low paper shrinkage,high quality and strong paperboard.

3.Adopt imported precision machine tools,advanced molding grinding and electroplating,flute precision apply to national standard.

4.The surface of corrugated roller flute teeth are middle-frequency quenched,hardness reach HRC60,upper corrugated roller is drum shape,with long life.

Product Pictures
