Flexo Printer Slot Diecut Cardboard Box Making Machine For Corrugated Carton
Flexo Printer Slot Diecut Cardboard Box Making Machine For Corrugated Carton
Flexo Printer Slot Diecut Cardboard Box Making Machine For Corrugated Carton
Flexo Printer Slot Diecut Cardboard Box Making Machine For Corrugated Carton
Flexo Printer Slot Diecut Cardboard Box Making Machine For Corrugated Carton
Flexo Printer Slot Diecut Cardboard Box Making Machine For Corrugated Carton
Flexo Printer Slot Diecut Cardboard Box Making Machine For Corrugated Carton
Flexo Printer Slot Diecut Cardboard Box Making Machine For Corrugated Carton
Specifications
Brand Name :
Hh
Model Number :
2500*4900mm
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
negotiated
Payment Terms :
T/T
Supply Ability :
10 sets every month
Delivery Time :
30-60 days
Packaging Details :
plastic
Max.cardboard :
2500*5000mm
Voltage :
Custom made
Min.cardboard size :
600*890mm
design speed :
100pcs/min
work speed :
60pcs/min
cardboard thickness :
2-20mm
printer plate thickness :
7.2mm
After-sales service provided :
Online support, Video technical support, Overseas service center available, N
Condition :
new
Warranty :
one year
Driven type :
electric , pneumatic
Description

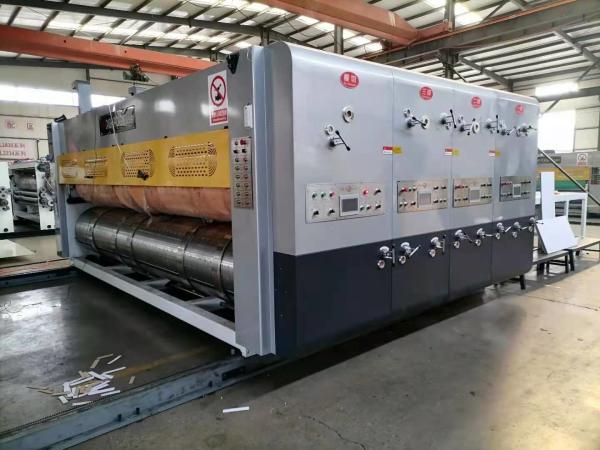

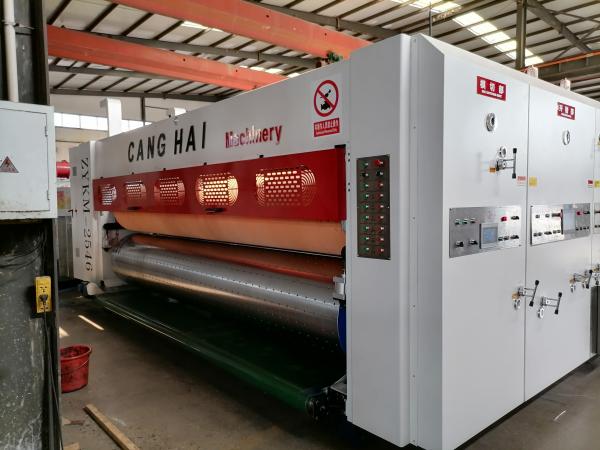

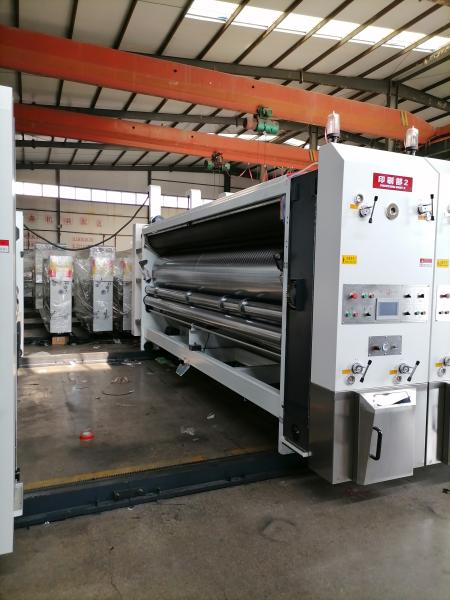

Flexo Printer Slot Die Cut Corrugated Carton Box Machine

Machine Feature

1. The total machine adapt PLC controlling print unit and slot phase adjustment, easy to operate and reliable.

2. Whole machine frame and important part are being aging treatment, tempering eliminate the stress of metallic; all of them come from high precision processing center, CNC grinding machining process. All the rollers are high quality steel, high precision Computer dynamic balancing correction of hard chromium plating, surface grinding.

3. The transmission gear adopt 40 CrMin Ti high quality alloy steel which is grinded, and after the heat treatment ,it can up to six precision, Its surface with rockwell hardness HRC58-62, make color more accuracy.

4. Each unit of the machine with electric separation, and pneumatic locking, pneumatic total lock, to ensure the stability of the unit, and continue ring for caution when machine be separated, to ensure the safety of operating person.

5. The machine with emergency stop switch at front, middle and back section.

6. Every unit of machine with emergency stop switch, so the machine can be stopped between the unit, it can ensure the workers safe (remark: every unit moving is drag by feeder unit)

7. All the machine electric parts application keyless connecting ring, eliminating the gap generated by the traditional connection, keep the long-term precision of printing chromatic.

8. The machine lubrication system uses a spray automatic lubrication, and with the device impermeable to oil spills institutions awarded.

Main parameter

type unit ZYKM2549
Plate roller dia mm ￠820
Plate roller length mm 4900
Inner width of machine mm 5000
max speed Ps／min 150
economic speed Ps／min 60-100
effect printing size Mm 2500×4900
Max.cardboard size Mm 2500×5000
Skip cardboard size mm 2500*3400
min feeding paper size Mm 680×900
board thickness Mm 2－20mm
machine frame thickness Mm 7.0mm
topping precision Mm ≤±:0.5
Slot precision mm ≤±:1.2
main motor power KW 37
Max.slot depth mm 660
Min.slot space reverse Mm 310*110*310*110
Min.slot space Normal mm 190*190*190*190
