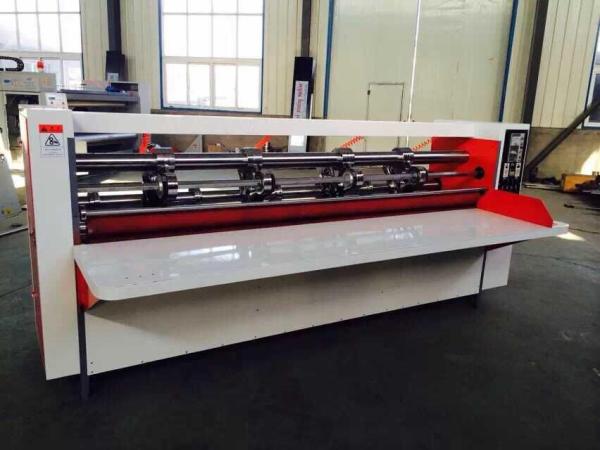

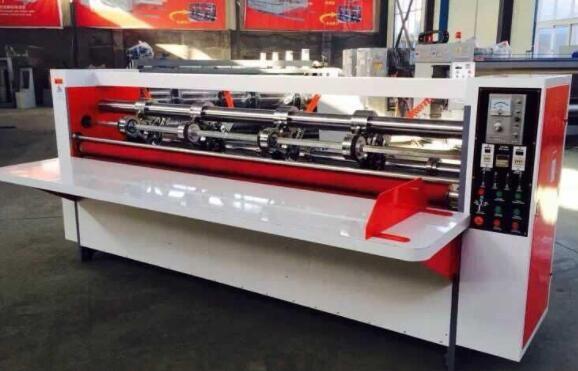

2000mm 4 Knife 6 Crease Thin Blade Rotary Machine Slitter Scorer
2000mm 4 Knife 6 Crease Thin Blade Rotary Machine Slitter Scorer
2000mm 4 Knife 6 Crease Thin Blade Rotary Machine Slitter Scorer
2000mm 4 Knife 6 Crease Thin Blade Rotary Machine Slitter Scorer
2000mm 4 Knife 6 Crease Thin Blade Rotary Machine Slitter Scorer
2000mm 4 Knife 6 Crease Thin Blade Rotary Machine Slitter Scorer
2000mm 4 Knife 6 Crease Thin Blade Rotary Machine Slitter Scorer
2000mm 4 Knife 6 Crease Thin Blade Rotary Machine Slitter Scorer
Specifications
Brand Name :
haohan
Model Number :
2000mm
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10 sets every month
Delivery Time :
15-30 days
Packaging Details :
plastic
function :
2000mm 4 Knife 6 Crease Thin Blade Slitter Score Machine
autoamtic grade :
semi auto
warranty :
one year
speed :
100m/min
Core Components :
Bearing, Motor, Gear
Condition :
new
Driven Type :
electric
color :
according to customer's requirement
Shaft number :
4 and 6
Machine frame :
High quality steel
PackaPackaging Typeging Type :
Cartons, Film, Belt, case
Description

Semi automatic thin blade slitter, corrugated cardboard slitter scorer machine

Main Features And Functions

1.Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
2.Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton Sheet.
3.Grinding Part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.
4.Electric control lift-down and correct error, easy to operate, suit for different requirements.
5.Adopt China famous brand or imported electric element, dependable performance.
6.Adopt synchronous belt drive, low noisy and work steady.
7.It could be adopts double machine type, easy and fast change cutting order.
8.Max running speed for production line:150m/min
9.with protect cover,make sure the workers safety

Model
2000
2500
3000
3500
Width of paper board(mm)
2000
2500
3000
3500
Speed of paper dividing(m/S)
2
2
2
2
Driving power(kw)
1.1
1.5
2.2
2.2
Weight(kg)
1000
1400
2000
2500
Size of conflguration
2400*1100*1170
2900*1100*1170
3400*1100*1170
3400*1100*1170
