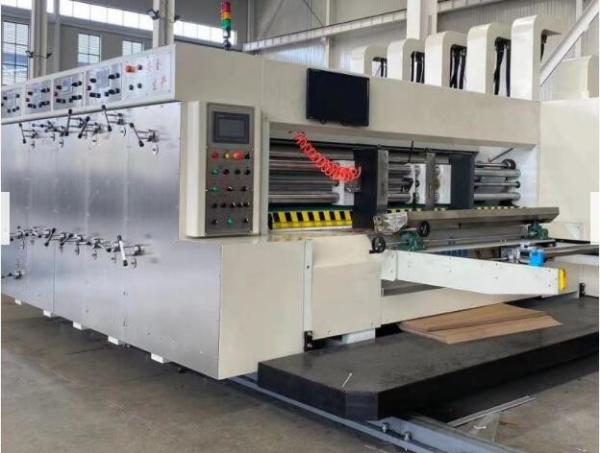

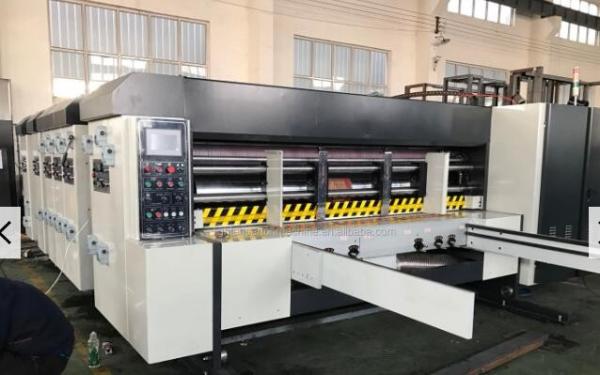

Carton Box Two Colors Printing Slotting Die Cutting Machine Automatic 150pcs/Min
Carton Box Two Colors Printing Slotting Die Cutting Machine Automatic 150pcs/Min
Carton Box Two Colors Printing Slotting Die Cutting Machine Automatic 150pcs/Min
Carton Box Two Colors Printing Slotting Die Cutting Machine Automatic 150pcs/Min
Carton Box Two Colors Printing Slotting Die Cutting Machine Automatic 150pcs/Min
Carton Box Two Colors Printing Slotting Die Cutting Machine Automatic 150pcs/Min
Specifications
Brand Name :
Hh
Model Number :
1400*2600mm
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
5 set every month
Delivery Time :
30-60 days
Packaging Details :
plastic
name :
CAutomatic Flexo Carton Box Two Colors Printer Slotter Rotary Die Cutter
warranty :
1 year
speed :
150pcs/min
function :
making carton box
Color :
one two three four five
cardboard thickness :
2-18mm
Core Components :
Motor, PLC, Engine
Printing material :
Corrugated Paperboard
Key Selling Points :
High-accuracy
Application :
Corrugated Carton Box
Description
Product Description

YKM-Automatic flexo printing slotting rotary die cutting with vibrating stacker machine

1,Operation-control switch(PLC computer control)

2, it’s control iak roller automatic up and down, printing plate after wash clean, automatic Memory reset, Personalized alignment cardboard , quota to complete automatic standby , and other functions

3. The main transmission adopts high quality steel, after quenching treatment, finish rolling gear processing, can achieve the four level of accuracy of high hardness, high precision gear.

4. Key free space connector, eliminate traditional connection, maintain long-term accurate color printing, the transmission mechanism adopts spray lubrication, automatic lubrication system.

5. Between the units using cylinder lock, and the whole machine has a strong lock to the self - locking mechanism to ensure the stability of the unit.

Lead edge feeder unit
  • 1. Adopt vacuum absorption lead edge feeder, high pressure centrifugal fan auxiliary feeding paper, wind adjustable.
    2. adopt unique quick change type half wheel mechanism to ensure the consistency of feeding position, avoid feeding wheel circle wear is not the same, and replacement is very convenient.

  • Printing unit

1. The ink supply device is provided with an ink penetration leather pad and a sputtering ink return mechanism,,to prevent ink outside impact printing quality.
2. With a digital display of the function of the planetary gear type accompanied by the adjustment of the plate is electric phase adjustment.
3. Metal anilox roller with rubber roller.
4. Optional: Ceramic anilox roller with doctor blade
Slotting unit
1. The roller with the latest design precompression is adopted to protect the paperboard from damage.
2. Equipped with the button left and right to synchronize the electric axial movement of the motor, make the upper and lower creasing line move together, the upper and lower slotting knife, make the synchronous adjustment, and electrical adjusting box height function.
3. With the digital display function, the planetary gear type phase adjustment mechanism is used to carry out the electric adjustment of the slotting phase and the box height.
4. new desigh rubber creasing wheel. Avoid cardboard damage
Rotary die cutting unit
1. Die - cutting roller with planetary structure, high precision, large bearing capacity, stop, operation can be electric digital 360 - degree adjustment.
2. The roller is hard chrome plated steel surface quality, and balance, increase its running stability and reliability.
3. Optional: with slotting knife attachment
Vibrating stacker
1. Answer the paper arm The machine has manual and automatic operation.
2. Platform lifting Strong chain drive. The stack height is 1600mm. Platform lift drive motor with brake function, the platform can maintain a fixed position, will not decline. 3. Paper baffle. The pressure action of the paper tray, when the board is piled up to the predetermined height, the paper tray is automatically extended to hold the cardboard. The rear baffle position is manually adjusted. Plane wrinkle belts to prevent the cardboard from slipping.
1. The main wall body: Japan mitsubishi five-sided machining center processing.2. Transmission gear: High precision grinding teeth.
3. Printing roller: 45# steel rolling welding, computer dynamic balance correction, grinding and hard chromium plating.
4. anilox roller: Dynamic balance correction
5. Electrical part: Siemense, Scheigher, Delta, Fatek,
