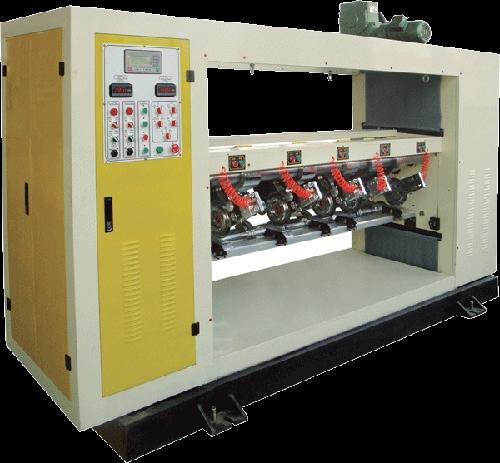

corrugated carton machine thin blade slitter& scorer lifting type
corrugated carton machine thin blade slitter& scorer lifting type
Specifications
Place of Origin :
Hebei
Brand Name :
Guanghua
Model Number :
BFY
Certification :
ISO9001:2008
Packaging Details :
Plastic film for wrapping(can use wooden case if needed)
Delivery Time :
20days
Payment Terms :
T/T, L/C
MOQ :
1
Description

Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice tidier, non-pressing and non-burr.
Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
Grinding part: adopt automatic and manual two kind’s pneumatic grinding type, it could be grinding when working, improve work efficiency.
Electric control lift-down and correct error, easy to operate, suit for different requirements.
Adopt the brand of variable frequency motor inverter, with a production line at the same rate for the high precision.
Adopt China famous brand or imported electric element, dependable performance.
Adopt synchronous belt drive, low noisy, work steady.
It could be adopt double machine type, easy and fast change cutting order.
Max running speed for production line: 150m/min

Technical parameters

Model200023002500
（mm）
Machine dimension（mm）		3200*1200*22003500*1200*22003700*1200*2200
Motor power8.58.58.5
Max slitting widthInverse180021002300
Positive blade180021002200
Minslitting widthInverse140140140
Positive blade140140140
Minscoring widthPositive scoring303030
Inverse scoring808080
Scoring height(mm)0-100-100-10
Blade（mm）φ200×122×1.2

Three blade Four scoring/ Four blade SixScoring/ Five Blades Eight scoring

Two types: Manual adjust blades or electric adjust blades
