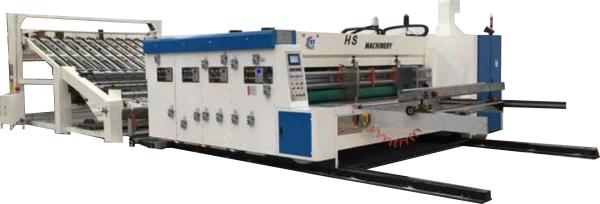

Automatic Carton Box Making Machine Printer Slotter Die Cutter Stacker

Model: 1400x2400

Basis Information

1. The mahine absorbed the characteristics of similar foreign to heavy-duty as a wide concept, and strictly in a accorance with mechanical standards, increase the selection of various pars of delivery systems,focusing on tone version,Chuan-ink,transmission structure of the reorganization.

2. control system, using the latest design concept of mechatronics,computer-phase with the planetary weeks to tune the combination version of the system to achieve non-stop adjustment , the control accuracy of 0.10millimeters

3. Delivery system, the transmission shaft and gear with free bond connecting ring and the cross slider drive mechanism to achieve seamless gear machine operation . greatly improved accuracy of the printing chromatography.

4. Other functions: The printing slotting machine can also be used for cutting, punching, embossing and other processing.

1. and Model	1400x2400
   Max.speed(pcs/min)	150pcs/min
   Max.sheet (L*W)	1400x2800
   Min.sheet (L*W)	320x600
   Max.printing(L*W)	1400x2400
   Paper thickness	3-10mm

Edge feeder

1. Front feed mechanism, feed accurate, fast.

2. The leading edge is the width of the front board as positioning reference, without affecting the width of error of cardboard cut in line printing, slotting, die-cutting of locating datum requirements. Electric tone block box.

3. Has a higher processing capacity of thin cardboard delivery. (E, B-watt cardboard can be smoothly fed).

4. Suction outlet air flow from the inverter control, air volume can be adjusted according to the size of cardboard, Alice degree bend, easy to adjust, fast and freely.

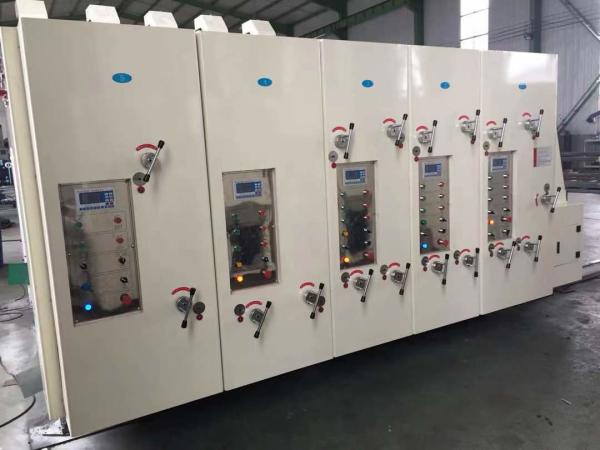

Printer Unit

1. The flexo printer slotter is equipped with a steel anilox roller.

2. The inking system employs a rubber cushion roller.

3. Due to a quick flexo plate changing device, the flexo plate can be easily mounted and dismounted.

4. Phase adjustment in printing features PLC and touch screen control which can achieve 360 degree adjustment.

5. Planetary gear type phase adjustment device shows long service life.

6. The flexo printing machine is equipped with an automatic brake which will prevent the print cylinder from rotating when it is separated or in phase adjustment, thus keeping the original gear position unchanged.
