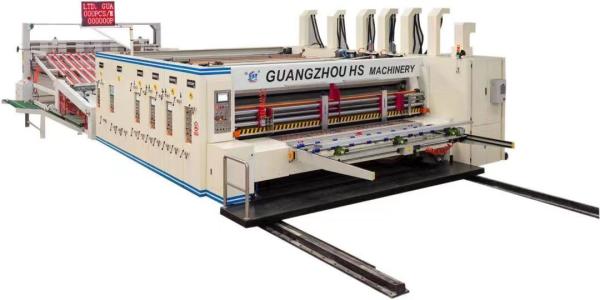

Carton Die Cutting Machine Jumbo Size Printing Slotting Machine

Model: 2200x3600 jumbo size

Machine Parts and Performance Features

1. Adjusting the printing unit and slotting unit is controlled by PLC for convenient and reliable operation.

2. All drive shafts are made of superior-quality steel. They are surface ground and chrome plated.

3. The transmission gear is made of high-quality 40Cr alloy steel with Rockwell hardness of at least 50 HRC after heat treatment.

4. All units of the complete printer slotter machine is electrically separated and pneumatically locked. An audible alarm sounds continuously during operation to ensure the security of operators.

5. Different rings will sound when the printer slotter starts or stops working.

6. The button to start the main engine is pressed by two hands to secure the operators.

7. The front, middle and rear parts of the printer slotter die cutter are configured with emergency stop switches respectively.

Lead Edge Feeder
1) Controlled by touch screen and control button, the control panel operates easily and reliably.
2) The main motor is started under the control of dual button to ensure the security of operators.
3) Continuous or skip feeding is available based on the requirements of clients.
4) The printer slotter is designed with a counter to show the number of paperboard pieces.
5) The horizontal orientated position of the shielding board adopts mechanical and electrical control system. A caliper is used to display the movement distance.
6) The caliber of the front shielding board is manually adjusted.
7) The paper feeding system comes with an 11KW fan, providing accurate feeding, quick response, low moment of inertia and superb braking effect. It can be adjusted and maintained easily. Based on different bending angles of paperboards, variable-frequency air volume adjustment ensures smooth paper-feeding process.
