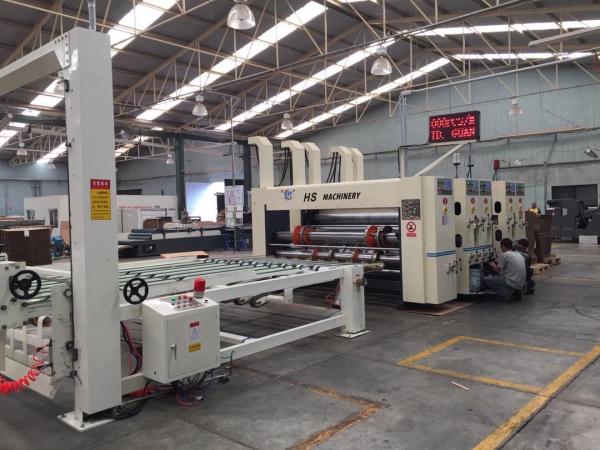

Cardboard Box Printing Machine Flexo Printing Slotting Machine

Model:jumbo1800x3600

Introduction

1. It adopts vacuum adsorption, leading edge feeding, design and manufacture, and the whole operation is humanized design, which can be set, modified, executed, replaced, memorized and displayed accurately in a short time.

2. The material of the aluminum drive roller is made of high-quality steel, with balance correction, smooth operation, surface grinding, and hard chrome plating.

3. Full gear transmission, high-quality alloy steel, heat-treated and ground.

4. Automatic oil balance device to keep the oil balance of each unit.

5. With automatic zeroing, recording memory, printing plate cleaning memory, order dust removal and other functions, optional touch screen PLC control, easy to operate.

6. Anilox roller: Metal or ceramic anilox roller can be used, and the anilox roller line can be selected according to user requirements.

Standard equipments:

A. Independent Lead Edge Feeder;

B. printers with chrome anilox rollers

C. motorized slotter

D. RotaryDie Cutter with auto trimming device;

^{Independent Lead Edge Feeder}

Adopt triplex row feeding wheel , three groups Germany servo system,separate drive , non-gear box wear , long life , high precision. Back shield up and down , moving is electric , adjusting easy and accuracy .Adopt double row feeding ,large tension ,make sure the large size carton printing with skip feeding suction and return to zero device. The host adopt synchronous belt transmission, transmission balance, can absorb vibration, low noise, economic operation, etc

1) Servo auto feeder allows for free pressing feeding.

2) Touch screen interface to show and operate the machine with PLC to communicate with other units.

3) Equipped with an absorption vacuum auxiliary system to ensure a smooth paper feed.

4) Equipped with a counting device and a protective motor starting unit.

Features of printing units

Features of slotting unit

Features for Rotary Die Cutting Unit

Introduction:

In today's fast-paced and competitive printing industry, cardboard box printing machines have gained immense popularity due to their speed, efficiency and cost-effectiveness. These machines use various printing technologies, such as Flexo printing, to produce high-quality, visually appealing and customized cardboard boxes that meet the specific needs of different businesses.

Flexo printing is a popular method used in cardboard box printing machines as it is ideal for printing on non-porous substrates such as plastics, metals, and cardboard. Flexographic printing uses flexible rubber or photopolymer plates that are mounted onto a printing cylinder.

In flexo printing, the substrate is fed into the press where the printing plate transfers ink onto the cardboard. The ink is then transferred to the cardboard using anilox rollers, which ensure that the ink is evenly applied to the surface. Flexo printing is known for its durability, versatility, and ability to print images with high consistency and precision.

Cardboard box printing machines equipped with flexo-printing techniques are highly advanced and offer a wide range of options for businesses to customize their boxes. The machines are capable of printing high-resolution graphics, images, and text in multiple colors, including CMYK, Pantone, and metallic inks. In addition, they can also print special effects such as varnishes, coatings, embossing, and debossing.

One of the most crucial components of a cardboard box printing machine is the slotting machine. The slotting machine is responsible for cutting the cardboard into specific sizes, shapes, and designs needed for the final product. These machines use computer-controlled cutting and scoring technology to ensure that each box is cut to the exact size and shape required.

There are numerous benefits to using a cardboard box printing machine over traditional printing methods. For starters, these machines offer unparalleled speed and efficiency, allowing for a significant increase in production capacity while reducing labor costs. Additionally, cardboard box printing machines offer more significant design flexibility, allowing businesses to create custom designs for their packaging, which is a crucial aspect of branding.

Another benefit of cardboard box printing machines is that they are highly versatile and capable of printing on a wide range of materials, from traditional cardboard to more advanced materials like corrugated board. This versatility allows businesses to create packaging solutions that meet specific product requirements, such as lightweight packaging for shipping, or strong, durable boxes for heavy products.

Furthermore, cardboard box printing machines offer greater environmental sustainability than traditional printing methods. Most modern cardboard box printing machines use water-based inks, which are more eco-friendly and reduce the amount of volatile organic compounds (VOCs) released into the environment. Additionally, these machines are capable of producing boxes with minimal waste, reducing the overall carbon footprint.

Cardboard box printing machines are a valuable investment for businesses of all sizes looking to improve their packaging solutions. These machines offer numerous advantages, such as increased production capacity, design flexibility, and environmental sustainability, which can help businesses stay competitive in today's market. With advanced technologies like flexo printing and computer-controlled slotting machines, cardboard box printing machines have become a vital tool for companies looking to improve their packaging solutions.
