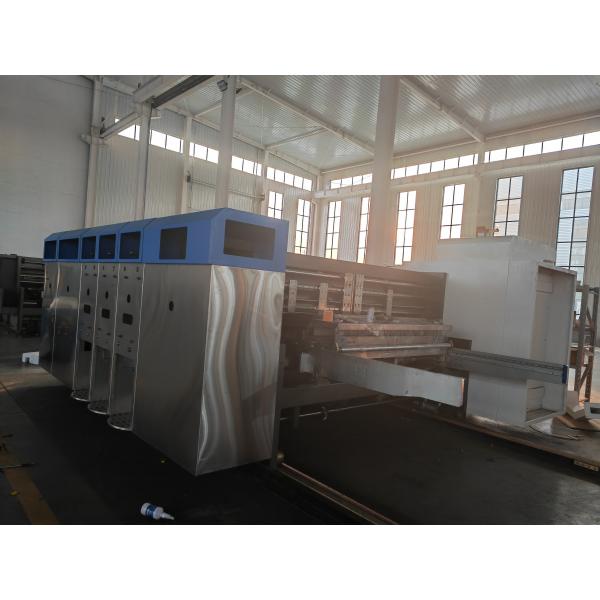

Fully Computerized Carton Die Cutter Machine Jumbo Flexo Printing Slotter
Fully Computerized Carton Die Cutter Machine Jumbo Flexo Printing Slotter
Specifications
Brand Name :
HS
Model Number :
2200X5200
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD300000
Payment Terms :
T/T
Supply Ability :
20 units/month
Delivery Time :
90 days
Packaging Details :
plastic film
Type :
Jumbo Size - Flexo printer slotter
Usage :
Paper Printer
Product name :
carton box flexo printing slotting machine
Product type :
cardboard carton box machinery
After-sales service provided :
Engineers available to service machinery overseas
Machine type :
corrugated carton box flexo printing slotting machine
Name :
carton box flexo printing slotting machine
Application :
Carton Box Making Machine
Description

Jumbo Flexo Printer Slotter Die-Cutter Machine

Jumbo Size Printer Slotter

2200x5200mm

Technical parameters:

Max. sheet: 2200x5200mm

Min. sheet: 500 x 1800mm

Max. Printing area: 2200x5200mm

Min. Printing area:500x1800mm

Paperboard thickness: 3-9mm

Design speed: 40 sheets / min.

Dimension: 39210 x 8530x2500mm

Total power: 325.2KW

Total weight: 168.26 Tons

Iron wall thickness: 90 mm

Cliche thickness: 3.4mm, 3.7mm, 3.8mm,7mm.

Printing tolerance: +1.5mm

Folding error:+1.5mm

Main Function

fully computerized with touch screen PLC control, easy and safety operation.

*Lead edge feeder suitable for jumbo size corrugated board.

*Whole roll to roll transmission on printing to achieve high quality printing performance.

*Strong performance of creasing and accurate slotting to make standard box easily. *Frequency compensation device to make die cutting box precisely and efficiently.

*Remote maintenance, rapid equipment trouble shooting with global service network to ensure long term stable performance.

Fully Computerized Carton Die Cutter Machine Jumbo Flexo Printing Slotter

Feeding Unit

*Lead Edge Feeder with strong vacuum transfer for precise and stable feeding.

*Dust removal system with brushes and anti-static device and segmented vacuum sheet cleaner.

*Feeding rolls gap and side guides are motorized and PLC control.

*Main motor is protected from starting up when units are not fully closed and locked.

*Continuous feeding or skip feeding function

  • Fully Computerized Carton Die Cutter Machine Jumbo Flexo Printing Slotter

Printing Unit

*Roll to Roll transfer, high adaptability of jumbo board, transfer more precisely, improve chromatical precision.

*Pneumatic clutch is adopted on anilox roller

*Transverse register is digitally controlled by motor and PLC.

*Automatic cleaning function guarantees ink recycle and cleaning more easily and quickly.

*Ink leaking & splashing proof system.

*Automatic resetting after cleaning the printing plate.

*Rubber roller inking system
