Particle Powder Cartridge Dust Collector Metal Laser Welding Fume Extraction
Particle Powder Cartridge Dust Collector Metal Laser Welding Fume Extraction
Specifications
Brand Name :
AUZOER
Model Number :
WDC
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 pcs per year
Delivery Time :
6 weeks
Packaging Details :
Wooden cases package
Certification :
ISO
Name :
Welding fume extractor,woodworking dust collector
Efficiency :
99%
Filter Area :
9.4-18.8㎡
Power :
1.5-3.0 KW,2.2kw-7.5kw
Voltage :
220 380 400V
Application :
Welding fume collection
Description

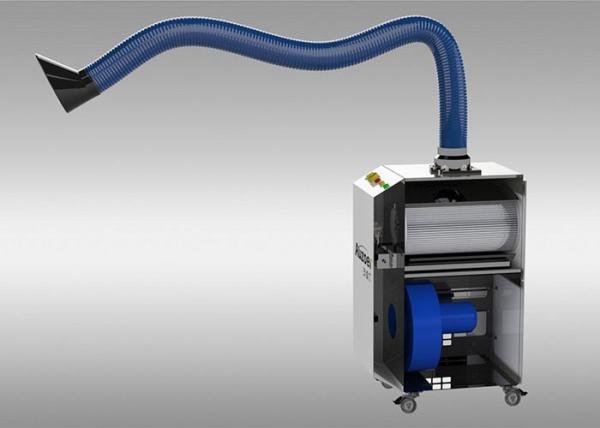

Auzoer WDC Dust Collector For Metal and Laser Welding Fume Extraction
Product Description

As the supplier of the cartridge dust collector, Zhangjiagang Auzoer provides the most complete range of cartridge collectors that cost-effectively enhance productivity and manufacturing efficiency. Zhangjiagang Auzoer cartridge collectors are engineered to capture the broad spectrum of dust particles that can inhibit production environments.

Whether meeting new environmental compliance or safety requirements or upgrading existing equipment, we can configure an optimal dust collection solution ideally suited to your application, process, facility requirements and budget. Our cartridge dust collectors come standard with the industry-leading cartridge filters for more efficient and effective collection of dust emissions and capture of submicron airborne pollutant particles. The patented pulse cleaning technology used in our cartridge dust collectors provides optimized cleaning power to most effectively pulse off dust from the filter resulting in increased pulse cleaning energy, lower pressure drop, longer cartridge filter life and energy savings.

Flow Cartridge Dust Collectors


The flow cartridge dust collectors effectively remove harmful dusts and smoke from industrial manufacturing processes. With its patented pulse cleaning technology, greater air capacity and quick and easy maintenance, there's no better air filtration method for your manufacturing facility. Situated inside a factory or outdoors, these high-performance, energy efficient cartridge dust collectors are expandable in the field to meet increased capacity needs at any time due to their modular design.

WDC Technical Data
Model Dimension Valve Quantity Filter Quantity Filter Size Weight(kg)
Length(mm) Width(mm) Height(mm)
WDC1200 560 850 1180 1 1

φ324X660

 86
WDC2000 710 880 1480 2 2

φ356X660

 100
Particle Powder Cartridge Dust Collector Metal Laser Welding Fume Extraction
Perfect design, compact size with large energy
1. It can move freely according to the different pollution stations.
2. The suction arm can be freely positioned, it is convenient and durable;
3. Double maintenance door design, fully consider the convenience of maintenance.
4. With ash cleaning system, it is easy to remove dust and ensure the low resistance operation of the dust collector.
5. Convenient transportation and installation.

Particle Powder Cartridge Dust Collector Metal Laser Welding Fume Extraction

The high efficiency fan owns the advantages of small volume, low power consumption, large air volume and low noise.
1. 1.5KW air volume can reach 1200M/H;
2. the noise is below 76dB;
3. CFD simulated operation to narrow the gap between design and actual performance.
The flow field layout is optimized to ensure the capture effect.
1. There is no eddy current within the control scope and the gas flow direction is uniform;
2. Large capture range, same air volume and good capture effect.

Particle Powder Cartridge Dust Collector Metal Laser Welding Fume Extraction

Particle Powder Cartridge Dust Collector Metal Laser Welding Fume Extraction
