Anti Falling Hook Mechanical Parking Garage Optional Color PLC Automatic Control
Anti Falling Hook Mechanical Parking Garage Optional Color PLC Automatic Control
Anti Falling Hook Mechanical Parking Garage Optional Color PLC Automatic Control
Anti Falling Hook Mechanical Parking Garage Optional Color PLC Automatic Control
Specifications
Brand Name :
JUNHV
Model Number :
JH-SP3L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
1000SET PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
Iron frame
Surface treatment :
Paint or galvanized
Inner width of car pallet :
1900MM,1950,MM,2000MM,2050MM
Color :
option
Power supply :
3PH5cable 380V,50HZ
Material :
stainless steel
Control :
button,IC card and remote control system
Description

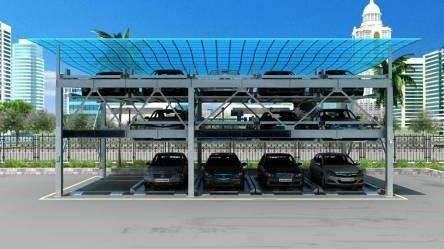

China supply Three Level puzzle Parking System /Mechanical Parking Garage for car workshop

Product Information:

Suitable Parking Cars Model Small Car Mid-Size Car Large Car Over Size Car
Car Size Length*Width*Height Length*Width*Height Length*Width*Height Length*Width*Height
(MM) ≤4400×1750×1450 ≤4700×1800×1450 ≤5000×1850×1550 ≤5300×1900×1550
Car Weight ≤1300Kg ≤1500Kg ≤1700Kg ≤2000Kg

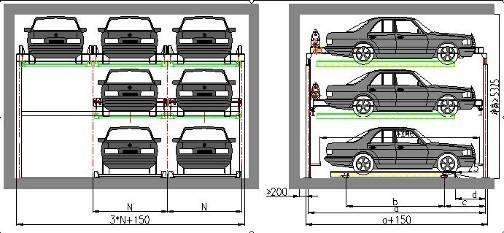

Requirement Space A(MM) 5250 5550 5850 6150
B(MM) 3380 3460 3540 3780
C(MM) 955 1090 1135 1250
D(MM) 600 735 805 705
E(MM) 4650 4950 5250 5550
N(MM) 2300 2350 2400 2450
Net Height(MM) ≥3600 ≥3600 ≥3600 ≥3600
Motor Power Lift Motor 2.2Kw 2.2Kw 2.2Kw 2.2Kw
Sliding Motor 0.2Kw 0.2Kw 0.2Kw 0.2Kw
Rated Speed Lift Speed 4.5M/Min 4.5M/Min 4.5M/Min 4.5M/Min
Sliding Speed 8.9M/Min 8.9M/Min 8.9M/Min 8.9M/Min
Drive Mode Motor,Chain Motor,Chain Motor,Chain Motor,Chain
Power 3 Phase 5 Wire 380V 50HZ
Control Mode Button,IC Card and Remote Control System
Surface Treatment Galvanized , Painting
Column Width(MM) 2250 2350 2400 2450
Inner Width of Pallet(MM) 1900 1950 2000 2050

Working principle:

This equipment is three level and multi-column design, there's an empty parking space on ground and second level that can slide right or left. Cars parked/unparked by the lifting of car pallet on third and second level and the sliding of car pallet on second and ground level. Parking space on ground level can park/unpark car directly. When parking/unparking car on second or third level, the car pallet that underneath this car will slide right or left to leave an empty space for shift, so the car pallet load this car will reach the ground level, the car can be parked or unparked.


Features :

  1. Save land area and take full use of space,and columns can be arranged according to your requirements.
  2. About awning design, can be designed according to your requiremets, such as full awning type, part awning type and simple awning type and no awning type.
  3. Low equipment cost and maintenance cost.
  4. Lift smoothly and low noise, convenient for car go in or out.
  5. Comprehensive security protection system, such as safety anti-falling hook, mechanism detect people or car entering, car parking limit mechanism, interlock mechanism, emergency brake mechanism.
  6. Adopt PLC automatic control system, use button, IC card and remote control system, make operation very easy.

Anti Falling Hook Mechanical Parking Garage Optional Color PLC Automatic Control

Product packaging

Packaging:

Car lift Standard Export Package.

Delivery :

Usually it takes 3 weeks after receving your receipt payment .

However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.

Anti Falling Hook Mechanical Parking Garage Optional Color PLC Automatic Control

Company profile

Strategic goals

1. in all countries in which we operate,to be number one in the garage trade.

2. to increase our revenues and profitability through continuous growth

3. to secure our cost leadership through continuous process optimization

4. to reach the largest possible number of customers and their maximum satisfaction

5. for all dealers and distributors who work with us to be the leading manufacturer

6. always be a reliable acting, socially oriented and environmentally responsible company

Our safety ethos

We take safety very seriously. We promote and monitor this by means of training courses, continual checks, documentation (logs) and appropriate instruction. We comply actively and fully with the SCC regulations on our premises and in our products.

Our products

Superior quality and constant refinement are responsible for our international position, thanks to the rapid implementation of innovative ideas using state-of-the-art technologies. We regard a constant determination to ensure process safety, zero faults and reliability at all levels of the company as an integral part of our work.

Our products are created with highest care and precision. Quality controls and quality improvement are intended to drive current innovations.

Anti Falling Hook Mechanical Parking Garage Optional Color PLC Automatic Control

Exhibition

Anti Falling Hook Mechanical Parking Garage Optional Color PLC Automatic Control
