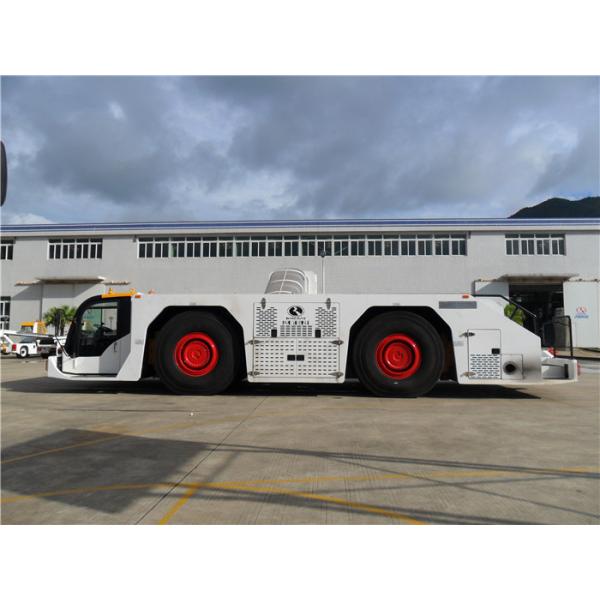

Dana Transmission 120KN Airport Pushback Tractor
Dana Transmission 120KN Airport Pushback Tractor
Dana Transmission 120KN Airport Pushback Tractor
Dana Transmission 120KN Airport Pushback Tractor
Specifications
Brand Name :
TECHKING
Model Number :
TK-QY120C
Certification :
CCC
Place of Origin :
CHINA
MOQ :
1
Price :
By negociation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 Units/Month
Delivery Time :
120 days
Packaging Details :
Nude Pack, Loaded in Flat Rack Container or Shipped by R&R
keywords :
Airport Tow Tractor
Drawbar Pull :
120KN
Towing Capacity :
120T
Gross Vehicle Weight :
12T
Maximum Speed :
30km/h
Wheel Base :
2150 mm
Dimensions :
5780*2200*1880 mm
Description
Dana Transmission 120KN Airport Pushback Tractor

Specifications:

Dimensions Performance
Overall Dimensions 5780*2200*1880 mm Tow Bar Pull 120 KN
Wheel Base 2150 mm Towing Capacity 120 T
Front/Rear AxleTread 1850 mm Gross Vehicle Weight 12 T
Ground Clearance 160 mm Maximum Speed 30 km/hr
Turning Radius 5500 mm
Front Hook Ground Clearance 330 mm
Front Hook Ground Clearance 300 mm

Highlights:

Powerful and reliable powertrain, consisting of Deutz Engine, Dana Transmission, Dana Axle, etc, ensuring durable and reliable performance.

Independent dual circuit braking system to ensure a safety operation.

Seperate independent heat disspator for engine, transmission, AC, hydraulic system and radiator to avoid overheat.

Compact design, low gravity center and short wheelbase facilitating an easy and flexible operation.

Centralized automatic lubricating system, lubricating all greasing points automatically.

Equipped with emergency stop to stop all actions immediately to prevent accidents.

4 wheels steering, 2 wheels steering, crab walk.

Easily observable hitches fn. An adjustable reflector and a hitch light are equipped to facilitating rear hitch observation.

Equipped with jack point, to facilitate wheel replacing and maintenance.

Applicable Aircraft:

Most major single-aisle aircraft such as A300-600, A310-200, A310-300, A321, A318, A319, A320, A330-200, A330-300, B717, B737, B757, DC10, DC11, TU154, TU204, and MD90 etc.

Dana Transmission 120KN Airport Pushback Tractor

Dana Transmission 120KN Airport Pushback Tractor

Dana Transmission 120KN Airport Pushback Tractor

Dana Transmission 120KN Airport Pushback Tractor
