350 KG Aircraft Ambulift Airport Ground Support Equipment
350 KG Aircraft Ambulift Airport Ground Support Equipment
350 KG Aircraft Ambulift Airport Ground Support Equipment
350 KG Aircraft Ambulift Airport Ground Support Equipment
350 KG Aircraft Ambulift Airport Ground Support Equipment
350 KG Aircraft Ambulift Airport Ground Support Equipment
350 KG Aircraft Ambulift Airport Ground Support Equipment
350 KG Aircraft Ambulift Airport Ground Support Equipment
Specifications
Brand Name :
TECHKING
Model Number :
TK-TD60A
Certification :
CCC，CE
Place of Origin :
CHINA
MOQ :
1
Price :
By negociation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
30 Units/Month
Delivery Time :
90 days
Packaging Details :
Nude Pack, Loaded in Flat Rack Container or Shipped by R&R
Dimensions :
7690*2680*3720 mm
Passenger Cabin Dimension （L*W*H） :
4240*2400*2280 mm
Service Range :
2200-5800 mm
Front Platform Rated Load :
400 KG
Rear Platform Rated Load :
350 KG
Description
Ambulift, Medical Lift, Disabled Passenger Boarding Vehicle, Disabled Ambulift, Disabled Hi-lift, Airport Medical Lift

Description:

The TK-TD60 is a CE certified disabled passenger boarding vehicle build upon TECHKING specail chassis. It is in full compliance with CAAC and European CE standards, such as, IATA AHM 921A, IATA AHM 910, IATA AHM 913, IATA AHM 915.

Specifications:

Dimensions Performance Data
Overall Dimensions 6740*2500*3800 mm Maximum Speed 45 km/hr
Wheelbase 3300 mm Front Platform Service Range 2200-6000 mm
Vanboday Dimensions 4240*2400*2280 mm Rear Platform Service Range 0-500 mm
Front Wheel Tread 2015 mm Telescopic Platform Extension Range 1100 mm
Rear Wheel Tread 2015 mm Vanbody Load Capacity 1000 kg
Minimum Turning Radius 17300 mm Wind Resistance 3.35
Ground Clearance 180 mm
Gross Vehicle Weight 9500 kg

Applicable Aircraft:

Suitable for all major civil aircraft including A380.

Highlights:

Low gravity special chassis, featuring with good stability and high wind resistance.

Branded power train and hydraulic components to ensure a reliable performance.

Equipped with foldable rear platform, the front platform is optional with extendable platform or 4-way adjustable platform.

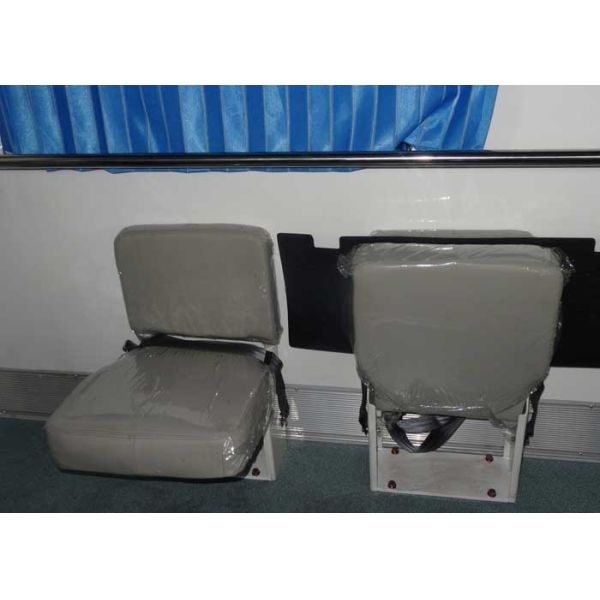

Thermo King air conditioner conditioned passenger cabin.

Programmable logic controller controlled hydraulic actions, reliable and easy to diagnose.

Safety Features:

Emergency Stop Button

Emergency Platform Withdraw

Anti-collision Sensor

Interlock to prevent moving when vanbody lifted

Interlock to prevent vanbody lifting when stabilizers not fully extended

Interlock to prevent vanbody descending when stabilizers not fully retracted

Interlock to prevent staibilzers retraction when vanbody is not fully descended

Interlock to prevent hydraulic movements unless parking brake engaged

Emergency Manual Pump

TECHKING is one of the largest Ground Support Equipment manufacturer incorporated since 1999.
At TECHKING, we realize our customer's confidence is relying on us, knowing that our equipment is dependable and reliable. We are constantly improving and strengthening our service and products to keep things runnning smoothly and constantly. With years of constatnly research and development in the GSE field, TECHKING now provides dependable and reliable GSE products in 18 series and over 50 different types to meet the full range of demands..
Adhere to the aim of optimizing cost and efficiency, TECHKING has successfully won it's acknowlegment and aapproval by all the major airlines and airports in China as welll as customers from 20 different countries and areas and now has grown to the leader of ground support equipment manufacturer in China.
With our expertly trained and vastly experienced staff, TECHKING has been providing 24/7/365 services, from manufacture to delivery commissioning, training to after-sale services, assuring ou the most dependable on-the-ramp performance.
