Armored 2.771L B5 Cash In Transit Vehicles
Armored 2.771L B5 Cash In Transit Vehicles
Armored 2.771L B5 Cash In Transit Vehicles
Armored 2.771L B5 Cash In Transit Vehicles
Armored 2.771L B5 Cash In Transit Vehicles
Armored 2.771L B5 Cash In Transit Vehicles
Specifications
Brand Name :
DIMA
Model Number :
DMT5047XYCAV8
Certification :
CCC, ISO
Place of Origin :
CHONGQING, CHINA
MOQ :
1 Unit
Price :
By negociation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000Units/Year
Delivery Time :
1 Month
Product Name :
DMT5047XYCAV8 Cash In Transit Vehicle
Drive Type :
4x2
Bulletproof Level :
B4-B5
Minimum Ground Clearance(mm) :
142
Maximum Speed (Km / H) :
120
Displacement :
2.771
4G Image :
Yes
Monitoring System :
Yes
Description

Bulletproof steel plate and glass Armored cash in transit vehicle DMT5047XYCAV8

Description

Ballistic Protection Details

1. Protect Level:CEN EN1063 B5 level

Firearms: AK47 rifle

Bullet: 7.62×39 FMJ / SC

Weight: 9.7 g;

Speed: 700 +/- 10m/s

Firearms: M16 rifle

Bullet: 5.56 x 45 FMJ / SC

Weight: 4 g;

Speed: 950 +/- 10 m/s

2. Protect Scope

- Four sides of crew area are bullet resistant (Roof & floor is optional)

- Pillar & door posts protection

- Run-flat tyre which could drive for 30km at least at the speed of 50km/h, after be shot

3. Bulletproof Material

- Multilayer bulletproof glass, no splinter after being shot

- Vehicle body is armored with bulletproof steel and (or) light fiber plate

Configuration table

● ——Original configuration of the chassis

▲ ——Standard configuration

★ ——Optional configuration

● JX1040TH25 second class chassis

● Radio with USB interface

● Front heater

● Front air conditioning system

● Power steering

● Manual rear view mirror

● Radial tires

● ABS

● Reflective vest

▲ Rear air conditioning system

▲ Remote control central control door lock

▲ Manual sunroof

▲ Ventilation channel of escort cabin

▲ All car seat belts (two-point type)

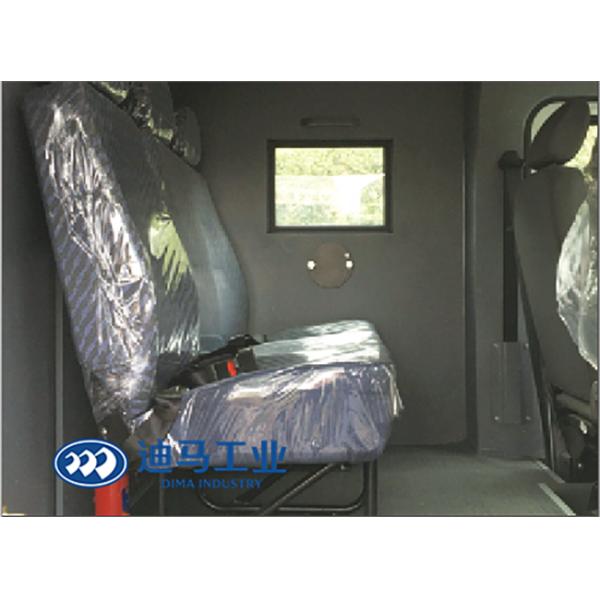

▲ 3-person continuous row seats in escort cabin

▲ Electric lift-type bill transfer holes (also shooting holes) on both sides of the cockpit

▲ 5 tons jack

▲ Front bumper bumper

▲ Rear bumper (with step)

▲ Wear-resistant floor adhesive for escort cabin

▲ Banknote pattern steel plate

▲ Mechanical sliding lock of the front sliding door of the banknote compartment

▲ Double mechanical lock / gear drive three-way world lock structure for the rear door of the banknote compartment

▲ Shooting holes on both sides of the escort cabin

▲ Open the door on the right side of the escort cabin

▲ Single-layer double-open rear safety door

▲ Car door auxiliary support device

▲ A 2kg fire extinguisher

▲ LED reversing spotlight

▲ Patterned aluminum plate on the lower plane and facade of the rear door frame

▲ Parking wedge (2 pcs)

▲ Front wheel emergency explosion-proof device

▲ Sound and light warning device for door opening

▲ Remote stop / forced emergency light flashing control system

▲ Car high-definition DVR-720P (six-way camera, monitor the front and rear of the car, the cockpit, the cash compartment, the left and right sides of the vehicle)

▲ Two-way voice intercom and emergency alarm

▲ 4G image transmission

▲ GPS satellite positioning

★ Homemade manual sunroof

★ LED reversing spotlight

★ Horizontal jack (3 tons)

★ Horizontal jack (5 tons)

★ Police megaphone (100W)

★ Resolution of vehicle monitoring system

★ Reversing radar

★ Speed limit alarm system

★ Double seat for escort cabin + folding seat

★ Horizontal police lights

★ Strobe light

★ Electric rearview mirror

★ Leather seat cover

★ Mechanical code lock on the back door of the banknote compartment

★ Fingerprint code lock on the back door of the banknote compartment

★ Gun mount

★ Coat hook

★ Manual power switch

★ Cockpit floor paving pattern aluminum plate

★ Floor pattern aluminum plate for escort cabin

★ The patterned aluminum plate on the floor of the banknote compartment

★ Single-layer single-open door at the rear and tail door (tail door single-open, no safety door)

★ Rear door double-layer single-open rear door (rear door single opening, insurance door single opening)

★ Double-deck double doors at the rear and rear doors

★ Double opening of rear door and double opening of rear door

★ Warm air behind escort cabin

★ Sunscreen on the window glass of the cockpit and escort cabin (excluding front block)

★ Sun film on front block

★ Front bumper (self-made)

★ Spraying appearance mark

★ The escort cabin seat is a double seat plus an independent single seat, the independent single seat can slide back and forth

★ The escort cabin seat is a double seat plus an independent single seat, the independent single seat can be turned forward as a whole

★ Limiting device added to the rear door

★ Customer-supplied materials for monitoring system

Armored 2.771L B5 Cash In Transit Vehicles

Main technical parameters

Model DMT5047XYCAV8
Chassis/Manufacture company JX1040TH25 second class chassis/JMC
Drive system 4×2

Overall dimensions

L×W×H mm

 5786(without front bumper)/5930(with front and rear bumper)x2090x2430

Banknote box dimensions

L×W×H mm

 2300×1990×1570(single layer door)/1840×1990×1570(double layer door)
Volume 6.3 (single layer door)/5.7 (double layer door)
Curb weight (kg) 3030(single layer door)/3130(double layer door)
Gross vehicle weight (kg) 4000
Rated load (including the crew) (kg) 970(Single layer door), 870(double layer door)
Rated passengers 3+2,3+3,2+3
Engine model JX493ZLQ5 supercharged intercooled, high pressure diesel engine
Displacement (L) 2.771
Maximum power(Kw/r/min) 85/3200
Maximum torque(N.m/r/min) 285/2000
Tread(Front/Rear)(mm) 1700/1645
Wheelbase(mm) 3570
Minimum ground clearance(mm) 142
Maximum speed (Km / h) 120
Tire specifications 185R15LT
Bulletproof level B4-B5

Armored 2.771L B5 Cash In Transit Vehicles
