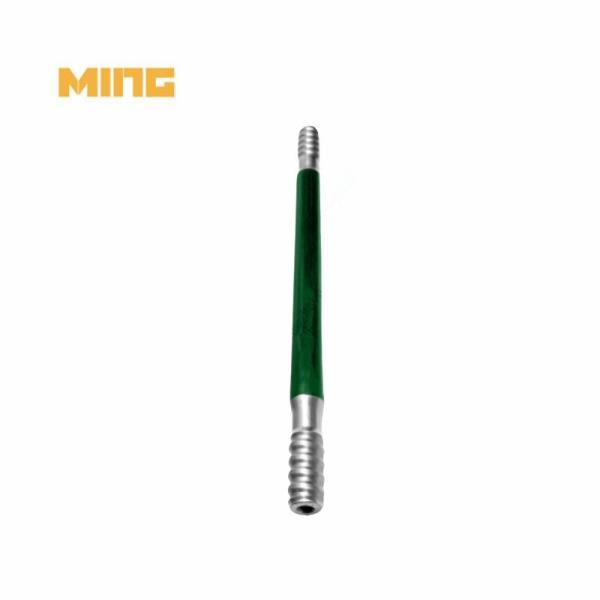

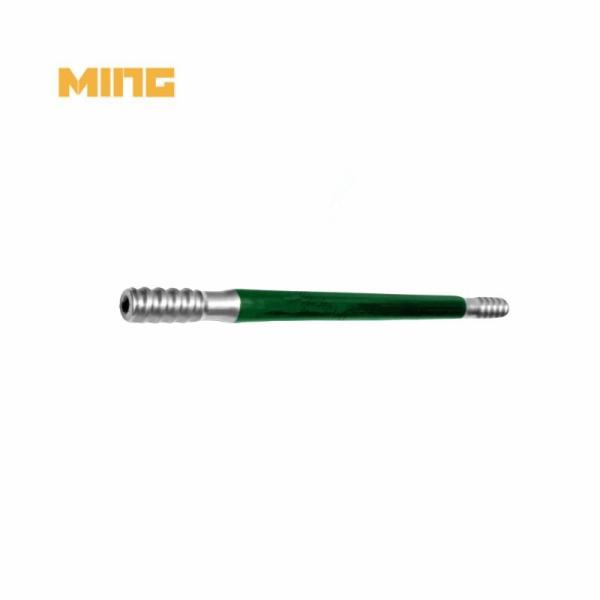

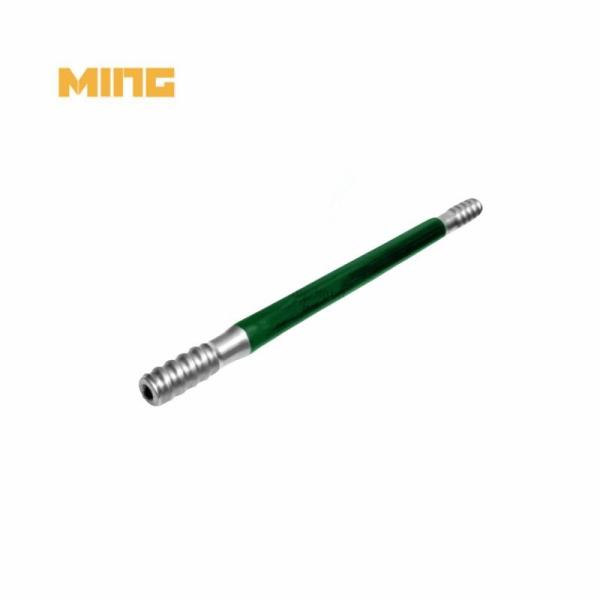

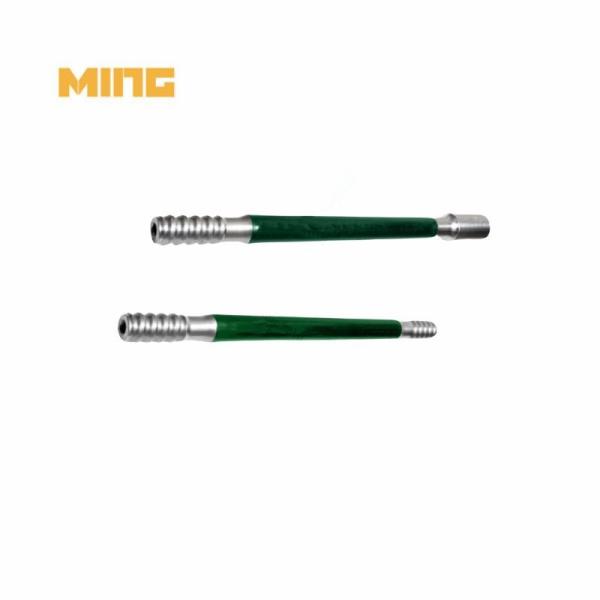

Product name: T45 Thread 3050mm Length Male-Male Connection Extension Rod For Petroleum Drilling Equipment

Product category: Drilling rod

Threaded Connection: T45

Length: 3050mm

High-strength alloy steel is used to make KINGDRILLING threaded drill pipe. High-precision CNC machines form all of the tracks and threads. Induction hardening is used to induce the threads, which is then quickly heated and cooled. The drill rod's mechanical qualities are enhanced and its service life is guaranteed by precision temperature control heat treatment equipment.

Integral carburizing strengthens the outer steel body of the drill rod by adding more carbon to its outer layer. When rough drilling through intricate rock formations and terrain, the solid thread drill bit can fit the inner wall of the drill bit precisely and efficiently, performing a variety of duties related to tunnel construction, underground mineral, and open-pit drilling.

KINGDRILLING thread drill rod parameters:

THREAD	description		Length		Diameter		Weight approx kg
			mm	Foot	mm	inch
T45	Extension rod T45-Round45-145		1830	6'	46	1 3/4	21.6
	Flushing hole 17mm		2435	8'	46	1 3/4	28.3
	Wrench flat 38mm		3050	10'	46	1 3/4	35.2
			3660	12'	46	1 3/4	42.1
			4270	14'	46	1 3/4	48.9
			5530	18'	46	1 3/4	63
			6095	20'	46	1 3/4	69.3
T45	MF-rpd T45-Round46-T45		1525	5'	46	1 3/4	21.2
	Flushing hole 17mm		1830	6'	46	1 3/4	24.6
			3050	10'	46	1 3/4	38.2
			3660	12'	46	1 3/4	45
			4270	14'	46	1 3/4	51.9
			5530	18'	46	1 3/4	66
			6095	20'	46	1 3/4	72.3
T45	Guide speedrod T45-found52-145		3050	10'	52	2	46.6
	Flushing hole 21.5mm		3660	12'	52	2	55.8
			4270	14'	52	2	63.8
			5530	18'	52	2	81.5
			6095	20'	52	2	89.4
THREAD	Guide Tube		Length		Diameter		Weight approx kg
			mm	inch	mm	inch
T45	Guide tube		1220	4'	64	2 1/8	12.6
	D64 for bits from 76-89mm and D76 for bits frcm 89-102mm		1525	5'	64	2 1/8	14
			1830	6'	64	2 1/8	17.4
			3050	10'	64	2 1/8	28.3
			3660	12'	64	2 1/8	32.8
			1830	6'	76	3	40
			3660	12'	76	3	77.8

Order Guide: Thread type + Diameter + length

KINGDRILLING thread drill rod advantages:

- Stable and Reliable Speed: Our Male-Male Extension Rod guarantees a stable and reliable speed during operation, ensuring precise drilling results every time.

- High Working Efficiency: Designed for optimal performance, our Male-Male Extension Rod delivers high working efficiency, allowing you to complete drilling tasks quickly and effectively.

- Quick and Efficient Service: We prioritize customer satisfaction with our quick and efficient service, providing timely assistance and support for all your drilling needs.

- Customized Acceptable: Tailored to meet your specific requirements, our Male-Male Extension Rod offers customization options to suit various drilling applications and preferences.

- Competitive Price: Enjoy top-quality drilling equipment at a competitive price point, making our Male-Male Extension Rod a cost-effective solution.

FAQ:

1. What is the overall structure of friction welded drill pipe?

The friction welded drill pipe is connected to the pipe body by friction welding through the internal and external thread joints of the drill pipe. The drill pipe rotates under the drive of a turntable or power head, which transmits power to the bit at the bottom of the hole and delivers drilling fluid to the cutting surface of the bit. The drill pipe plays a very important role in the whole drilling construction.

2. What is drill rod for?

Drill pipe is widely used in hydrological exploration, geological drilling, oil and gas exploration, and other fields.

3. How to maintain and manage drill pipe after use?

After the drilling operation is completed, the drill tools are neatly placed on the drill pipe rack according to different specifications, wall thickness, water hole size, steel grade and classification grade. Clean, rinse and dry the inside and outside surface of drill tool, joint thread and shoulder sealing surface with clean water in time. Check whether there are cracks and nicks on the drill pipe surface, whether the thread is intact, whether the joint is eccentric, whether the shoulder surface is flat and scratched, whether the pipe body is bent or squeezed, and whether there are foreign objects inside and outside. The drill pipe surface exists. Corrosion, pitting and other defects. If conditions exist, ultrasonic inspection should be carried out regularly on the drill pipe body and magnetic particle inspection on the thread part to reduce the probability of joint thread breakage and drill pipe body leakage. For drill tools without problems, apply anti-rust oil on the thread and shoulder sealing surface, wear protective wire and take various protective measures.
