Specifications
Brand Name :
MING
Model Number :
MHCIR110
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1PC
Price :
999-99999USD/PC
Payment Terms :
T/T, D/P, Western Union
Supply Ability :
2000PCS/MONTH
Delivery Time :
3-5WEEKS
Packaging Details :
WOODEN CASE
Application :
Ground Engineering
Color :
Blue,Yellow,glod(as You Need),black Or Others,Accept Customization
Product name :
Rical Engineering Low Pressure Dth Hammers Down The Hole Drill Pdc Bit
Hammer material :
High Carbon Steel
Hammer type :
DTH HAMMER
After-sales service provided :
Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available
Warranty :
1 Year
Material :
Carbon Steel
Type :
Down The Hole Hammers /DTH Hammers For Sale
Processing type :
Forging
Usage :
Ore Mine
Quality :
Top Brand China
Air consumption :
0.5-2.5Mpa
Oem :
YES
Description

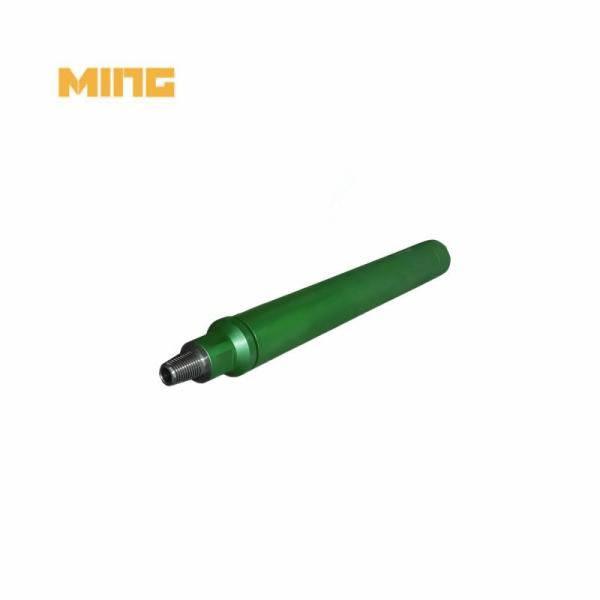

Product name: CIR110 Low Air Pressure Down The Hole Drill Hammer DTH Button Bits For Quarrying

Product category: drilling rig accessories

Matched hammer: Hammer CIR110

Connection thread: PIN 2 3/8 REG BOX

Working pressure(bar):6-12

Hole range(mm): 110-150

Outer diameter: 98

Weight(KGS): 33

At our facility, we have a team of experienced senior technicians, who are backed by years of expertise in the industry. Our skilled workers and engineers have the know-how to produce top-notch CIR110 shank DTH hammer that deliver exceptional results. We take pride in our commitment to quality and ensure that only the best products leave our factory.

Whether you require standard designs or customizations, we have you covered. Our team is dedicated to providing quick, efficient, and personalized services tailored to your unique requirements. We understand that every project is different, and we strive to meet and exceed your expectations with our attention to detail and customization options.

CIR110 shank DTH rock hammer details:

For these customers, Kingdrilling offers a complete range of industry-leading drilling products for exploration, mining, DTH, Piling, water well drilling and blasting operations.

Model OD (mm) Hole range (mm) Length (mm) Connection Thread Working pressure (Bar) Air Consumption (CFM) Weight(KG)
MHCIR65 61 70 745 F42*10PIN 4~10 212~353 13
MHCIR70 65 76 750 F48*10PIN 4~10 212~353 13.5
MHCIR90 80 90~120 460 F48*10PIN 4~12 282~424 21
MHCIR110 98 110~150 870 PIN2-3/8"REG BOX 6~12 282~424 33
MHCIR130 112 130~175 890 PIN2-3/8"REG BOX 6~12 282~424 46
MHCIR150 136 150~200 904 F70*10BOX 6~12 353~565 70
MHCIR170 156 170~250 1030 F100*28PIN 8~14 424~635 96
MHCIR200 182 200~250 1058 F100*28PIN 8~14 565~706 130

How to order:

Shank Type + Top Sub Thread

FAQ:

1. What is hole hammer?

Pneumatic down-the-hole (DTH) hammer is a pneumatic drilling tool using compressed air as a power source. It is suitable for drilling in pebble, gravel, and hard rock strata. It is often used in building pile foundation construction, bridge, mining, geological exploration, hydrological wells, and other fields.

2. What is percussion drilling method?

Percussion drilling is the manual drilling technique that was used in the first well drilled. In this drilling technique, a hammering bit is attached to a long cable that is then lowered into a wide open hole.

3. How does DTH system work?

DTH is an encrypted broadcast that is delivered to the consumer directly via satellite. DTH transmissions are received directly by the consumer via the tiny dish antenna. Unlike a typical cable connection, a set-top box decodes the encrypted transmission.

More information:

CIR110 Low Air Pressure Down The Hole Drill Hammer DTH Button Bits For QuarryingCIR110 Low Air Pressure Down The Hole Drill Hammer DTH Button Bits For QuarryingCIR110 Low Air Pressure Down The Hole Drill Hammer DTH Button Bits For Quarrying
