32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display
32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display
32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display
32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display
32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display
32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display
32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display
32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display
32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display
32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display
32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display
32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display
Specifications
Brand Name :
rCloud
Model Number :
RCS-TM320-LED
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal, L/C
Supply Ability :
1000pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Cartoon
Response Time :
14 ms
Interface Type :
HDMI
3D :
Not 3D
Weight(N.W/G.W) :
18Kg /18.5Kg
Specification :
784.2 x 498.2 x 62.8 (mm)
MTBF :
≥30,000 Hours
Description

Product Description

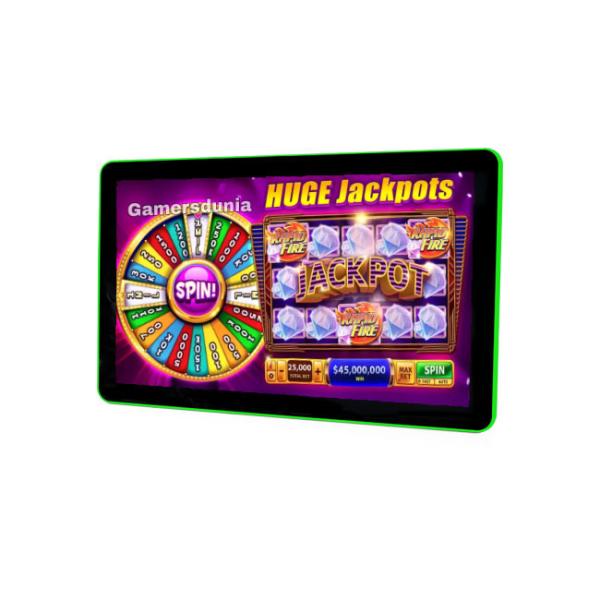

32 Inch 1080P Gaming Monitor Open Frame LED Projected Capacitive Touch Screen

Product Description

Features:

  • Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.

  • Full HD resolutioin 1920*1080, high brightness 400cd/m² , high contrast ratio 1000:1 and wide viewing angle.

  • LED Halo Effects on around the Edge of the frame.

  • Future generation panels phased-in without external changes.

  • Accept customization.

Specification:

LCD Monitor
Model No. RCS-TM320-LED
Series LED Deco Slim(LED Bezel)
Display Type 16:9 Ratio, 32inch TFT-LCD
Active Area 698.4 x 392.85 (mm)
Monitor Dimensions (WxHxD) 784.2 x 498.2 x 62.8 (mm)
Suggested Resolution 1920 x 1080 @60Hz, 1080P
Support Colors 16.7M

Brightness (Typ.)

 Pure LCD Panel 400cd/m2
With Touch Monitor 330cd/m2
Response Time (Typ.) 14 ms
Viewing Angle (Typ.atCR>10)) Horizontal (left/right) 89°/ 89°
Vertical (up/down) 89°/ 89°
Contrast Ratio (Typ.) 1000 : 1
Video Input/Interface VGA/DVI/HDMI
Frequency (H/V) 37.9~80KHz / 60~75Hz

Power Supply

Type: External

Display voltage: DC12V±5%

Input(line) voltage: AC100-240V,50-60Hz

Environment

 Operating Temp. 0~50°C
Operating RH 10%~90%
Storage Temp. -20~60°C
Storage RH 5%~90%
MTBF ≥30,000 Hours
LED Backlight Life Time (Typ.) ≥30,000 Hours
Weight(N.W/G.W) 18Kg /18.5Kg
Dimensions 784.2 x 498.2x 62.8(mm)
Power Consumption Stand by Power:≤1.5W/Operating Power:≤30W
Mount Interface

1. 100 x 200mm

2. Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness,Contrast Ratio,Auto-adjust,Phase,Clock,H/V Location,Languages,Function,Reset
LED SMD 5050, 60 LEDs/m
LED IC / Power WS2812, 14.4W/m, 12V

Touch Screen
Touch Type 32inch Projected Capacitive Touchscreen
Touch Input/Interface USB
Response Time ≤10ms
Hardness Min.7H
Light Transmittance ≥85%
Support System XP,WIN7,WIN8,WIN10,Linux,Android
View Area 698.7 x 393.3 (mm)
Cover Glass Thickness 3.0±0.2 (mm)
Touch Test ≥50,000,00
Touch Controller EETI/ILI/ Siliconworks (optional)

32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display

32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display

Package

32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display

Shipment

32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display

Certificates

32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display

Business partner

32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display

32 Inch 1080P Full HD LED Gaming Monitor Projected Capacitive Touch Display

About us

Established in 2017, Shenzhen rCloud Technology Co.,Ltd ( rCloud ) is professional hardware & software solution provider for global gaming machine , which are focus on R&D manufacturing and marketing Illuminated card reader, RFID card reader, Hybrid card reader and Player Tracking System for Global Gaming System . To insist "Know what you need , Do what we can", we committed to becoming comprehensive solution provider for gaming industry .During these years ,We have worked with Novomatic ,EGT ,Advansys , princess and playtech etc.

In Further development , we invest more to touch monitor factory which specialized in designing and manufacturing capacitive touch panel, Touch curved gaming monitor , LCD display etc.The total facilities are more than 5,000 square meters, in which over 2,000 square meters are 100 Class dust-free workshop. In order to provide our customers with high quality and satisfactory products, we improve the latest technology and equipment constantly. We trust that our accumulated experience, well-skilled manpower, advanced technologies and reliable quality control are the most distinguished factor to satisfy the customer's requirements.In the near future , We are the first choice of many of World's largest gaming manufacturers around the world .


FAQ

1.Q: What are your lead time ?
A:The order will be delivered within 7-10 days.

2.Q: How can I get samples ?
A:We can make out samples according to your requirement within 1-3 days,But ex- press and sample fee should be paid by customers.

3.Q: Do you accept personal customization ?
A:Yes we are professional manufacturer of hardware&software solution provider for gaming machine,Which are focus on R&D manufacturing and marketing Illuminated card reader,RFID card reader,Hybrid card reader and Player Tracking System for Global Gaming System.we have profession- al designer for your needs.

4.Q: What is MOQ policy ?
A:Generally MOQ is100pcs. sometimes,we can do 500pcs.Sometimes we will reduce the price according to the high order quantity.
