Overveiw

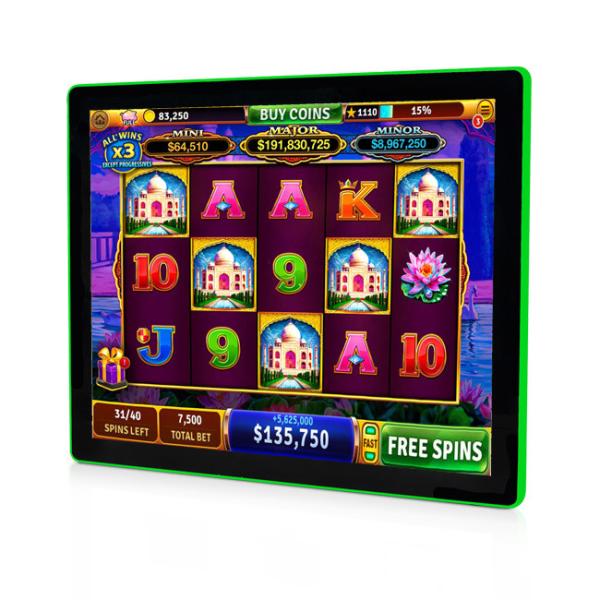

rCloud touch Gaming monitor is a reliableproduct for Game market. Designed withreliability from the start, Gaming monitordeliver outstanding image clarity and lighttransmission with stable, drift-free operationfor accurate touch responses. Create a super-fast and smooth experience forgamers.
specifications
LCD Monitor | ||
Model No. | RCS-M430-LED | |
Series | LEDDeco Slim(LED Bezel) | |
Display Type | 16:9 Ratio, 43 inch TFT-LCD | |
Active Area | 941.18x 529.42(mm) | |
Monitor Dimensions (WxHxD) | 1031.2 x 639.4 x 68.2 (mm) | |
Suggested Resolution | 3840 x 2160(UHD, 4K) | |
Support Colors | 1.07 B | |
Pure LCD Panel | 350cd/m2 | |
Brightness (Typ.) | With Cover glass | 320cd/m2 |
Response Time (Typ.) | 14 ms | |
Viewing Angle (Typ.atCR>10)) | Horizontal (left/right) | 89°/ 89° |
Vertical (up/down) | 89°/ 89° | |
Contrast Ratio (Typ.) | 1300:01 | |
Video Input/Interface | HDMI/DP | |
Frequency (H/V) | 15~80KHz / 55~75Hz | |
Type: Internal Display voltage: DC24V | ||
Power supply | Input(line) voltage:AC100-240V,50-60Hz | |
Environment | Operating Temp. | 0~50°C |
Operating RH | 10%~90% | |
Storage Temp. | -20~60°C | |
Storage RH | 5%~90% | |
MTBF | ≥30,000 Hours | |
LED Backlight Life Time (Typ.) | ≥30,000 Hours | |
Weight(N.W/G.W) | 27.5Kg/28.5Kg | |
Dimensions | 1031.2 x 639.4 x 68.2 (mm) | |
Power Consumption | Max.120W | |
Mount Interface | 1. 100 x 200mm | |
2. Mount bracket, horizontal or vertical mount | ||
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness,Contrast Ratio,Auto-adjust,Phase,Clock,H/V Location,Languages,Function,Reset | |
LED | SMD 5050, 60 LEDs/m | |
LED IC / Power | WS2812, 14.4W/m, 12V |
LED Deco Frame Touch Monitor Features
Integrated with PCAP touch panel for the ultimate in image quality.
Future generation panels phased-in without external changes.
High quality panel with high brightness, contrast ratio and wide viewing angle.
LED Halo Effects on around the Edge of the frame.
Dimension
Customization: Accept Logo, outer packaging, pattern, etc..
Quality: By a strict quality control system, all products are inspected by a professional quality.
MOQ: We accept small orders and mixed orders.
OEM: Accept ODM/OEM.
Samples: We can provide samples according to customer needs.
Deliver time: RTS products are within 2-3 working days, Others are within 7-14 days.
