100KW On Grid Solar Power System Customizable Ground Whole Set

Description

Solar power systems consist mainly of solar PV panels, PV controllers, inverters, combiner box and AC/DC inverters as their main components. The core components of which are the PV panels and the controller. The role of each component in the system is

PV panels: photoelectric conversion.

Controller: Role in the process control of the whole system.

Combiner box: After the convergence in the photovoltaic lightning protection box, through the controller, DC distribution box, photovoltaic inverter, AC distribution box, supporting the use of a complete solar power system to achieve grid connection with the utility.

Inverter: The on grid inverter adopts the maximum power tracking technology to maximize the power converted by the PV panels to the grid.

Advantages

• System Type: On Grid Solar Power System

• Save more money with net metering: A grid-connection will allow you to save more money with solar panels through better efficiency rates, net metering, plus lower equipment and installation costs.

• The utility grid is a virtual battery: The electric power grid is in many ways also a battery, without the need for maintenance or replacements, and with much better efficiency rates. In other words, more electricity goes to waste with conventional battery systems.

Solar Panels

• System Type: On Grid Solar Power System
• Power: 400w
• Open circuit voltage: 50.3V
• Short circuit current: 10.32A
• Maximum power voltage: 42.07V
• Maximum power current: 9.63A
• Dimension: 2008*1002*35mm
• Weight: 22.4kg

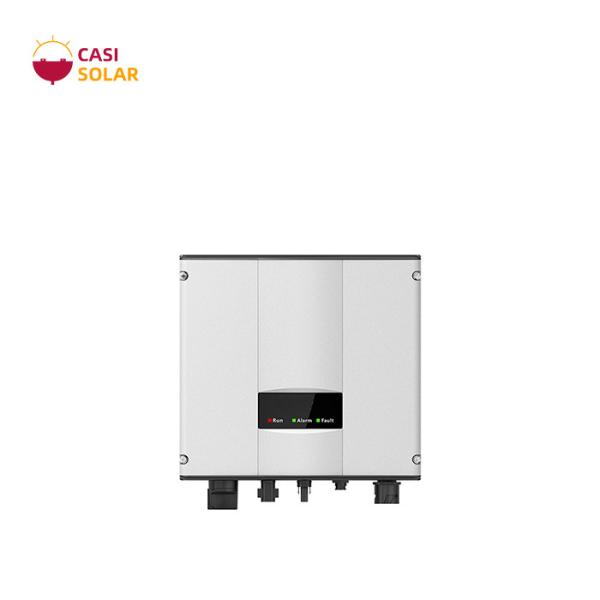

On grid solar inverter

• System Type: On Grid Solar Power System
• Both single and three phase, from 1kw~60kw
• Smart LCD setting function
• Transformer-less design and high power density
• Double MPPT Tracker

AC combiner box

• System Type: On Grid Solar Power System
• Include FUSE, SPD, leakage, breaker etc.
• Porous heat dissipation, lower temperature, safe to use

DC combiner box

• System Type: On Grid Solar Power System
• Cross section: 4mm2, 6mm2 available
• Smooth bottom outlet, no damage to cables

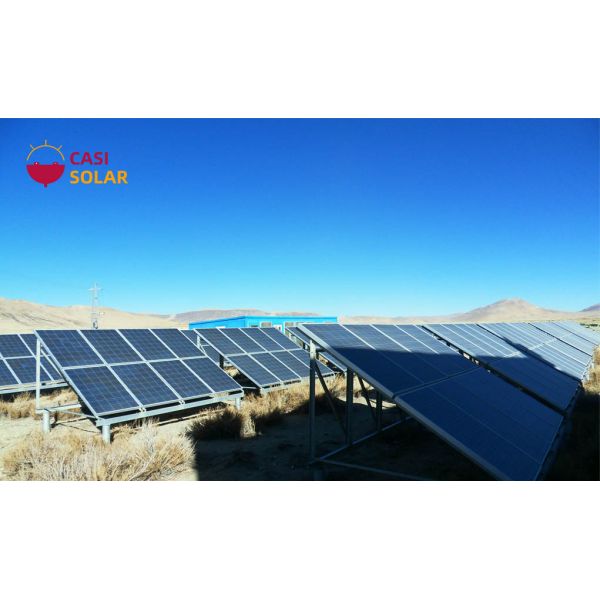

Solar mounting system

• System Type: On Grid Solar Power System
• Adjustable tile angle from 0 to 65 degree
• Flat/pitched roof, soil/cement ground installation

Accessories

• System Type: On Grid Solar Power System
• PV Cable: 4mm²/6mm²
• AC Cable
• DC Switch
• AC Breaker
