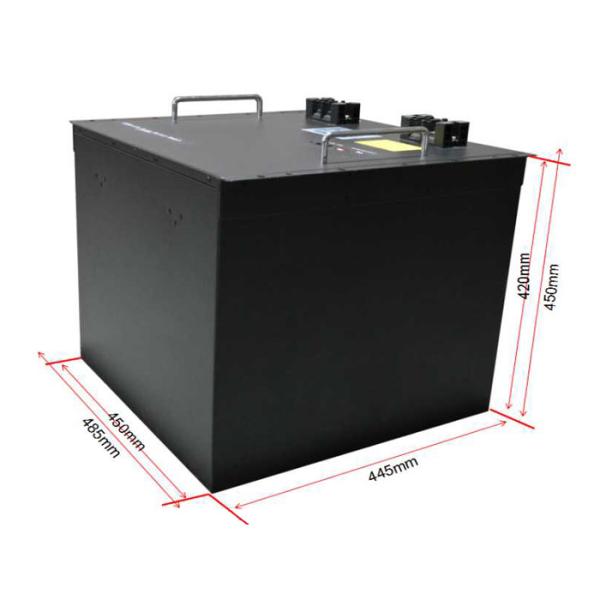

Energy Storage Lithium Battery 48volt 200ah 9600WH Parallel Connection Lithium Battery

Description of Lithium Battery 48volt 200ah 9600WH

CASI energy storage lithium battery in the communications industry is usually used as a backup power supply and uninterruptible power supply (UPS), environmentally friendly, does not contain heavy metals, safe to use; lithium iron phosphate (LiFePO4) as the cathode material, long cycle life, low self-discharge rate; light weight, small size; fast charging characteristics, 1C fast charge, 1 hour can be fully charged 95% of the rated capacity.

The communication equipment required by telecom operators tends to be integrated, miniaturized and lightweight. That is, more service equipment can be installed in a limited space. Higher requirements are put forward for their use of temperature range, specific energy, and lifetime.

Lithium Battery 48volt 200ah 9600WH Parameters

Product Features

• Product Name: Energy Storage Lithium Battery
• >6000 cycles Reliable Performance
• Wide Range of Applications
• Compact Size and Light Weight
• 10+ years technical support

Main Advantages

• Product Name: Energy Storage Lithium Battery
• Long battery life, high charge/discharge multiplier, stable and reliable
• 19-inch cabinet and wall-mounting options
• Lithium iron battery has superior multiplier discharge performance, can use lower capacity lithium iron battery system to meet the use of high current discharge occasions.

• Flexible configuration: multiple LiFePO4 modules are used in parallel, which makes it possible to enter the practical application of large-capacity communication Li-ion battery system, that is, to improve the output power of the system and extend the backup time of the system.

Application

• Home Energy Storage
• Industrial Energy Storage
• Wind power system
• Outdoor Macro Stations

Production Process

• Li-ion battery cell sorting cabinet: all incoming cells are subjected to secondary sorting to ensure the full capacity of the battery.
• Sorting pairing: each cell is sorted to ensure the consistency of the voltage and internal resistance of the cells in the same battery pack, which effectively improves the stability of the battery.
• Automatic spot welding: Use automatic spot welding machine to spot weld the positive and negative electrodes of the battery pack, which is efficient and stable without desoldering.
• Welding BMS: Welding and installing BMS for each battery pack, which can protect the overcharge, overdischarge, overcurrent and overvoltage.
• Finished product testing: The finished battery finally needs to go through a number of tests to confirm that the performance is stable and meets the standards before it is packaged and shipped.
