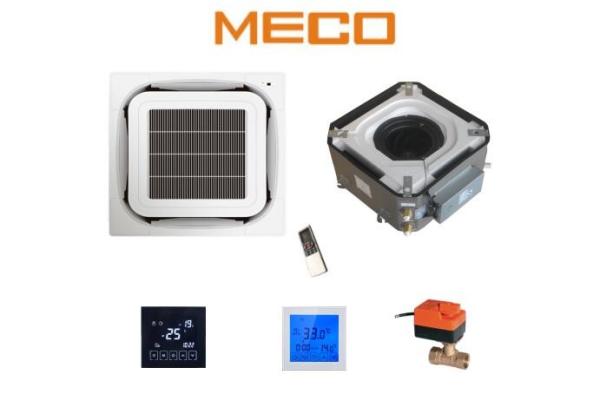

Round flow chilled water units , 8 way cassette fan coil unit 400CFM, 1TR ,with build-in pump and digital display

To compare with the 8 way cassette fan coil unit, MECO G style cassette type fan coil unit have 8 way air blowing which provide an Omni-directional air supply effect. Classic panel design makes the unit can meet different kinds of decoration environment.

Specifications for M style 8-way water cassettes fan coil units:

1. Air flow 400CFM, 680CMH
2. Cooling capacity 3.6Kw
3. Heating capacty 5.4Kw
4. Cassette Panel dimension 650X650X40mm
5. AC motor , BLDC brushless motor optional
6. Power supply 220V-1-50Hz
7. Two pipe/tube system
8. With build in water pump
9. Build in electrical box is optional.
10. Modbus function is optional.

Optional functions :

Products Feature and details

1. Surround air flowing which can substantially reduce the non-blowing area.

2. The thickness of products 240mm, those design ensure that machine can be installed in a narrow space.

3. Excellent performance-Integral C type heat exchanger, all adopt the design of integral C type structure, well-distributed air volume and high-efficient heat exchange ；

4. Excellent performances-the dependable solution of draining the condensed water. The gradient drainage design of drain tray makes the water stay in the least state；The design of auxiliary drain tray avoids the leakage incidents caused by the improper heat presentation in the external of units

5. High lift water drained pump (750mm high lift water drain pump which make the installation of condensate water pipe more flexible

6. Float switch inside to prevent from leaking

7. MECO Round blowing cassette fan coil unit have central control solution. We add Mod-buts agreement with the control of the unit which can access intelligent building system.

8. Water valve can be installed inside the unit

Testing condition:

2-tube system

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12℃

Heating

Entering air temperature: 20ºC

Entering water temperature: 60ºC, Same water flow rate as for the cooling

4-tube system

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12ºC

Heating

Entering air temperature: 20ºC

Entering/out water temperature: 60ºC/ 50ºC

All equipment wiring complies with CE requirements Reliability Features

• Base units are CE certified for EU standards
• All units with auto-restart functions.

Maintenance Features

• Integrated Condensate Water drain Pump
• With Built-in Overflow Safety Devices
• Reusable wire framed filters can be vacuum cleaned

Installation Features

• Fresh/Outside Air Intake 100mm diameter.
• Modbus net work control is optional.

MECO Fan coil units Certifications:

Standard Warranty

18 months since delivery date.

supply 1% free parts with shipment.

Field-Installed optional Accessories:

• 2 & 3 way valves and with the actuators
•
• Wall Mounted Mechanical or Digital Thermostat
• Wall Mounted Digital Thermostat with Modbus function
• Wall Mounted Digital Thermostat with WIFI control function
•

FAQ.

Q:Can you make OEM brand orders?

A: Yes of course. As a specialized manufacturer and exporter for this product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.

Q: How long is your warranty?

A: We offer 18 months warranty for our products. We offer 1% free repair parts and professional technical support.

Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our products have 4 pipe system as optional.

Q: Do you have selection software for your FCU?

A: Not yet now. But we can select the units for you based on your given selection request.
