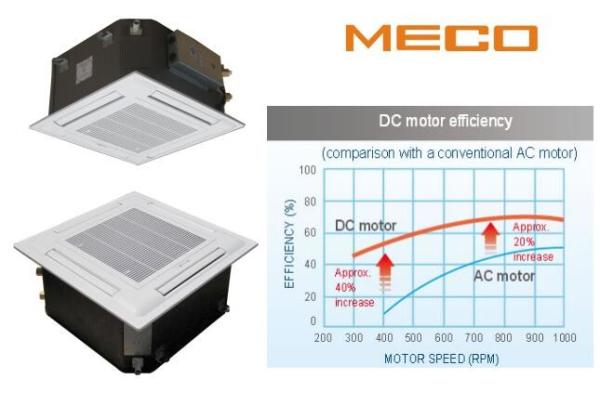

BLDC motor water cassette fan coil unit build in water pump 2TR capacity 800CFM, with build in PCB
BLDC motor water cassette fan coil unit build in water pump 2TR capacity 800CFM, with build in PCB
BLDC motor water cassette fan coil unit build in water pump 2TR capacity 800CFM, with build in PCB
BLDC motor water cassette fan coil unit build in water pump 2TR capacity 800CFM, with build in PCB
Specifications
Brand Name :
MECO or OEM
Model Number :
MFP-136KM-MK1
Certification :
CE, ISO, Rohs
Place of Origin :
Taizhou, China
MOQ :
50pcs
Price :
to be discussed
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs per month.
Delivery Time :
25-35days
Packaging Details :
Standard export carton box
Cooling capacity :
7kw
Heating capacity :
10.9kw
Air flow :
800CFM
Motor type :
AC motor
Display type :
Digital display
Water pump :
Build in water pump
Electrical box :
Outside/build in optional
Fresh air hole :
Standard available
Power supply :
110/220V 1Ph 50/60Hz
Modbus :
Optional
Auto restart :
Optional
Finger protect :
Finger protect grill optional
Drain tray :
Extra bigger drain tray optional
Description

BLDC motor water cassette fan coil unit build in water pump 2TR capacity 800CFM, with build in PCB

Specifications for hydronic four way cassette fan coil model MFP-136KM-MK2:

1. Air flow 800CFM,1360CMH

2. Cooling capacity 7000W

3. Heating capacty 10900W

4. Two pipe/tube system

5. With build in water pump

6. Power supply 220V-1-50Hz

7. Panel size 850x850mm

8. With build in electrical box

Cassette Type Fan Coil Unit Model No. 　
2 pipe system MFP-136KM-MK2 220V-1-50Hz
Cooling Capacity
Testing item Capacity-W At Fan speed Air Volumn CBM/H
Total Capacity 【w】 7000 High Speed 1300
Sensible Capacity【w】 5250
Total Capacity 【w】 5950 Medium Speed 1040
Sensible Capacity【w】 4350
Total Capacity 【w】 4850 Low Speed 780
Sensible Capacity【w】 3450
Heating Capacity
Testing item Capacity-W At Fan speed Air Volumn CBM/H
Total Capacity 【w】 10900 High Speed 1300
Total Capacity 【w】 9250 Medium Speed 1040
Total Capacity 【w】 7300 Low Speed 780
Entering air temperature Cooling Mode Entering air temperature2 Heating Mode
Dry ball Temp 【℃】 27.0 Dry ball Temp 【℃】 20.0
Wet ball Temp 【℃】 19.5 　 　
Inlet water temp 【℃】 7.0 Inlet water temp 【℃】 50.0
Outlet water temp 【℃】 12.0 Outlet water temp 【℃】 40.0
ITEM DATA ITEM DATA2
Rated Power input 【 W】 70.0 Unit dimension L【mm】 750
waterflow volume 【m3/h】 0.83 Unit dimension W【mm】 750
water pressure dropping 【kPa】 18.0 Unit dimension H【mm】 242
Connection pipe Dia【Inch】 ZG3/4" Panel dimension L【mm】 850
Static pressure【Pa】 0.0 Panel dimension W【mm】 850
Water drain pipe Dia 【mm】 ￠26 Panel dimension H【mm】 40
Packing data
Unit dimension L【mm】 870 Panel dimension L【mm】 910
Unit dimension W【mm】 845 Panel dimension W【mm】 910
Unit dimension H【mm】 275 Panel dimension H【mm】 80
Loading QTY 40HQ/40GP/20GP 242/209/104 PCS 　 　
Operating limits Water inlet temperature: 5-80°C.
Room air temperature: 6-40°C.
Relative humidity: 15-75%.
Maximum exchanger pressure: 800 kPa (81,5 mc.a.).
Power supply voltage: 230 V ±10%.

Full ranges of capacities we have for M style cassette fan coil unit:

MODEL air volume COOLING CAPACITY HEATING CAPACITY POWER INPUT
m3/h W W W
MFP-34KM-Q1M 380 2000 3100 40
MFP-51KM-Q1M 550 3000 4700 50
MFP-68KM-Q1M 680 3800 5900 58
MFP-80KM-Q1M 780 4200 6500 60
MFP-85KM-Q1M 880 4900 7600 70
MFP-102KM-Q1M 1050 5800 9000 95
MFP-130KM-Q1M 1300 7000 10900 125
MFP-136KM-Q1M 1380 7500 11600 130
MFP-153KM-Q1M 1550 8100 12200 145
MFP-170KM-Q1M 1750 9800 15200 160
MFP-204KM-Q1M 2050 11000 17100 190
MFP-238KM-Q1M 2200 12000 18600 210
MFP-272KM-Q1M 2720 15000 24000 230

Testing condition:

2-tube system 4-tube system

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12℃

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12ºC

Heating

Entering air temperature: 20ºC

Entering water temperature: 60ºC, Same water flow rate as for the cooling

Heating

Entering air temperature: 20ºC

Entering/out water temperature: 60ºC/ 50ºC

Notes:

1. Both AC or BLDC motor available.

2. Both 50HZ or 60HZ power supplies available.

M style Cassette fan coil unit introduction

As we all know Hydronic cassette units are ideal for applications and modernizations with suspended ceilings. Ceiling cassette fan coil units make each served area an independent controlled temperature zone to suit diverse requirements. Such as hotels, offices, restaurant, shopping mall applications,etc.

MECO start to produce the first cassette fan coil unit in 2001, and Cassette fan coil unit always a hard point for us.

After nearly 20 years’ experience accumulation, we have completely models of M style cassette fan coil unit and BLDC motor type cassette fan coil unit. The M style cassette fan coil unit is our core competitiveness which has high stability and comprehensive functions.

Performance Features for M style chilled water Cassette fan coil Units.

  • Fans are statically and dynamically balanced for quiet operation
  • 26 chilled water cooling models from 200-1600CFM to properly match job requirements
  • 4 different panel sizes for selection 650,850,950,1050.
  • 2 pipe or 4 pipe system both available.
  • AC motor and BLDC motor also available.

BLDC motor water cassette fan coil unit build in water pump 2TR capacity 800CFM, with build in PCB

Certifications for MECO cassette fan coil units:

BLDC motor water cassette fan coil unit build in water pump 2TR capacity 800CFM, with build in PCB BLDC motor water cassette fan coil unit build in water pump 2TR capacity 800CFM, with build in PCB

Standard Warranty for all cassette fan coil units orders

  • 18 months since delivery date.
  • supply 1% free parts with shipment.
fan motor P.C.B reciever Board sensor

trans

former

 fan motor capacitor remote controller wire controller drain pump water level switch fan drain tray swing motor drain pipe panel filter corner board of panel

Field-Installed optional Accessories:

  • 2 & 3 way valves and with the actuators
  • BLDC motor water cassette fan coil unit build in water pump 2TR capacity 800CFM, with build in PCBBLDC motor water cassette fan coil unit build in water pump 2TR capacity 800CFM, with build in PCBBLDC motor water cassette fan coil unit build in water pump 2TR capacity 800CFM, with build in PCB
  • Wall Mounted Mechanical or Digital Thermostat
  • Wall Mounted Digital Thermostat with Modbus function
  • Wall Mounted Digital Thermostat with WIFI control function
  • BLDC motor water cassette fan coil unit build in water pump 2TR capacity 800CFM, with build in PCB

FAQ.

Q:Can you make OEM brand orders water fan coil unit?

A: Yes of course. As a specialized manufacturer and exporter for fan coil units in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.

Q: How long is your warranty for your fan coil unit?

A: We offer 18 months warranty for our fan coil units products. We offer 1% free repair parts and professional technical support.

Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our fan coil unit products have 4 pipe system as optional.

Q: Do you have selection software for your Fan coil unit?

A: Not yet now. But we can select the water fan coil units for you based on your given selection request.
