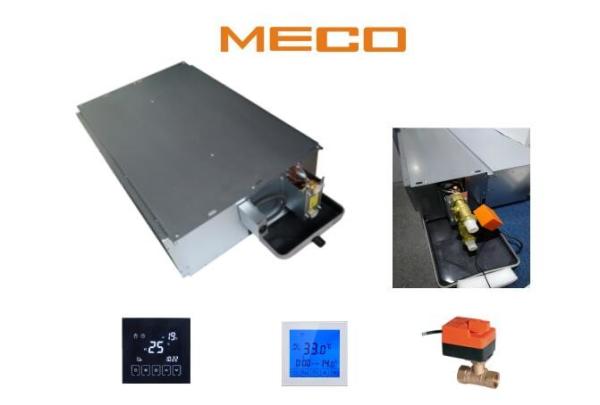

4-tube , DC motor, horizontal fan coil unit 200CFM, CE certificated with air return box optional and filter

Horizontal fan coil units, with cross flow fan, it features low noise, stable operation, high efficiency, good looking appearance, slim body and various operation modes to be selected. Furthermore, long distance monitoring and other control functions are available. Horizontal fan coil unit, is widely used in office, hotel and villa.

It has an elegant and novel appearance with automatic drainage and can be installed on the floor or under the ceiling. With the features of easy and flexible installation, wide range and long-distance air supply, good performance, various control functions and slim body, it is especially applicable to the hotel, office, meeting room with low space room.

Main features

Horizontal fan coil units, model is complete, better meet the different needs of customers, not only the product design is rigorous, manufacture meticulously, novel styles, advanced structure, high performance, low noise, less power consumption, safe and reliable, easy installation and maintenance

Energy efficient
Horizontal fan coil unit is made of high quality copper tube heat exchanger, match with high ripple hyperbolic hydrophilic fin that open a window, the use of advanced mechanical non-stretch pipe process, in high thermal efficiency, heat transfer enhancement with large air volume, low noise fan, the maximum heat transfer efficiency of generating unit,

Low noise

The unit is optimized by matching, the fan is passed by one by one to ensure that the unit works quietly and efficiently

No condensate

The unit condenses water plate for the whole stamping, no welds, solder joints, the hard - burning insulation materials in the whole paste in the water dish, eliminate dripping water and condensation phenomenon.

Installation is simple

The horizontal and dark clothing can be interchangeable with the outlet flange of the fan plate with the rhapsody coil, and the user transformation can be adjusted by itself, saving time and effort

Maintenance convenient

Motor used in high precision ball bearing with high quality, do not need to refuel, self-lubrication, low noise, long life, motor central axis are the conditioning and the surface corrosion resistance, durable.

Specifications for horizontal fan coil unit

1. Air flow 200CFM, 340CMH
2. Cooling capacity 2.15Kw Heating capacty 1.35Kw
3. Static pressure 12Pa, 30Pa, 50Pa is optional.
4. Two pipe/tube system
5. AC motor , BLDC brushless motor optional
6. Left pipe or right pipe is optional.
7. Thickness of the unit is 235mm only.
8. Air return direction from back or bottom optional.
9. Plenum and filter is optional
10. Thermostat or valve is optional.

Testing condition:
2-tube system
Cooling
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Heating
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling

All equipment wiring complies with CE requirementsReliability Features
· Base units are CE certified for EU standards
· All units with auto-restart functions.

Maintenance Features
· Integrated Condensate Water drain Pump
· With Built-in Overflow Safety Devices
· Reusable wire framed filters can be vacuum cleaned

Product certification:

Standard Warranty

18 months since delivery date.

supply 1% free parts with shipment.

Packing and shipping

Normally we use carton packing. The carton box printed with our MECO brand and unique color and pattern. We also have strong packing as optional. Depends on customers needs, we have crates, pallets, or honeycomb box etc. Our FOB port is NINGBO, China port.

Field-Installed optional Accessories:

· 2 & 3 way valves and with the actuators

· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function

FAQ.
Q:Can you make OEM brand orders?
A: Yes of course. As a specialized manufacturer and exporter for this product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.

Q: How long is your warranty?
A: We offer 18 months warranty for our products. We offer 1% free repair parts and professional technical support.

Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our products have 4 pipe system as optional.

Q: Do you have selection software for your FCU?
A: Not yet now. But we can select the units for you based on your given selection request.
