Slim Thin Vertical Electric Fan Coil Unit DC Motor 130mm Thickness With CE Certificate
Slim Thin Vertical Electric Fan Coil Unit DC Motor 130mm Thickness With CE Certificate
Slim Thin Vertical Electric Fan Coil Unit DC Motor 130mm Thickness With CE Certificate
Slim Thin Vertical Electric Fan Coil Unit DC Motor 130mm Thickness With CE Certificate
Slim Thin Vertical Electric Fan Coil Unit DC Motor 130mm Thickness With CE Certificate
Slim Thin Vertical Electric Fan Coil Unit DC Motor 130mm Thickness With CE Certificate
Slim Thin Vertical Electric Fan Coil Unit DC Motor 130mm Thickness With CE Certificate
Slim Thin Vertical Electric Fan Coil Unit DC Motor 130mm Thickness With CE Certificate
Specifications
Brand Name :
MECO
Model Number :
MFP-60CM
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
50
Price :
TBC
Payment Terms :
T/T
Delivery Time :
30-35DAYS
Packaging Details :
Standard export carton.
Type :
Fan Coil Unit
Condition :
New
Operating voltage :
220V
Mounting :
Floor Standing
Application :
Commercial,Room,Hotel
Description

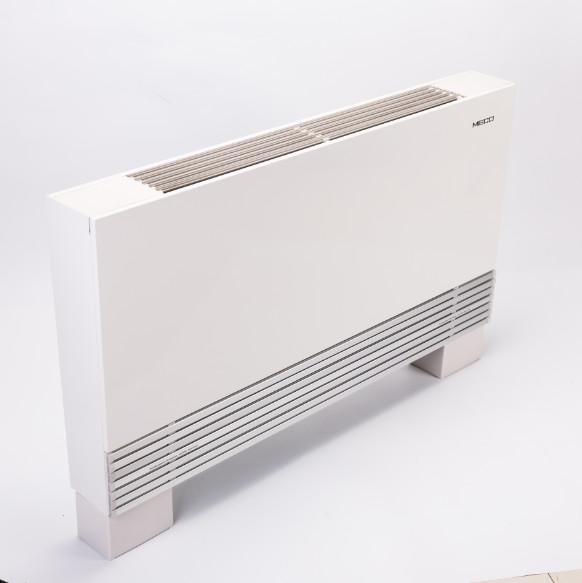

Ultra Thin Vertical Fan Coil Units with 2 Pipe System

Specifications
DC brushless Fan Motor for Option
Four pipe systems are optional.
2 way valve or 3 way valve optional (fitted or supplied loose)
Negative ion generator is optional.

Features
Consolo Fan Coil Units with high quality
energy saving and easy control
Ultra-thin design Convector (Fan Coil): with only 130mm depth
Cooling capacity 1.8kw air flow 340m3/h (200CFM)
Left/right water tube connection can be changed freely.

Advantages
Stylish Design: The units are designed in white color, other colors optional; it means that they will be suitable with most decoration schemes
Ultra-thin design Convector (Fan Coil): with only 130mm depth
Super Quiet ventilation: Cross flow fan technology with special air directing settings makes our Hydraulic Fan Coils exceptionally quiet

Benefit
MECO universal consolo type fan coil unit, easy to be installed, low installation cost.
Using PVC drain pan with 2 water outlet, hollow structure design can enhance the thermal insulation properties, at the same time to prevent from leaking.

Application
Our compact design universal consolo fan coil units, widely used in home, banks, office buildings, ect.

Instructions
Standard export packing cartons; Please read the instruction manual before install our fan coil units.

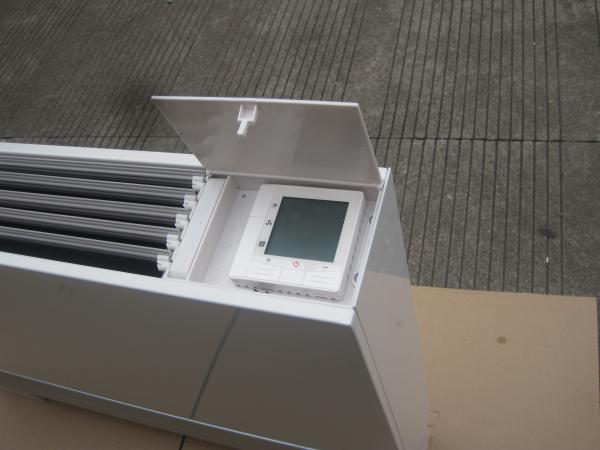

Ultra Slim Fan Coil Units With DC motor and Screen Touch Controller
Model 　 DC-MFP-20CM DC-MFP-30CM DC-MFP-40CM DC-MFP-50CM DC-MFP-60CM
Power supply 　 220V,50Hz,1Ph
Air volume max m3/h 200 300 400 500 600
Air volume min m3/h 110 160 230 290 340
Cooling capacity W 1000 1800 2400 3000 3600
Btu/h 3412 6142 8189 10236 12283
Heating capacity W 1600 2900 3850 4800 5750
Btu/h 5460 9900 13130 16380 16920
Noise dB(A) 38 39 40 41 42
Power input W 10 11 12 15 16
Waterflow volume m3/h 0.17 0.26 0.34 0.6 0.64
Pressure dropping kPa 4 6 8 10 12
Water tube connection(inlet) 　 R1/2"
Water tube connection(outlet) 　 R1/2"
Coil Type high efficient copper pipe to wear Hydrophilic aluminum coil
Maximum working pressure Mpa 1.6
Condensation pipe size (diameter) mm ￠21
Net dimension(L*W*H) mm 700*130*680 900*130*680 1100*130*680 1300*130*680 1500*130*680
