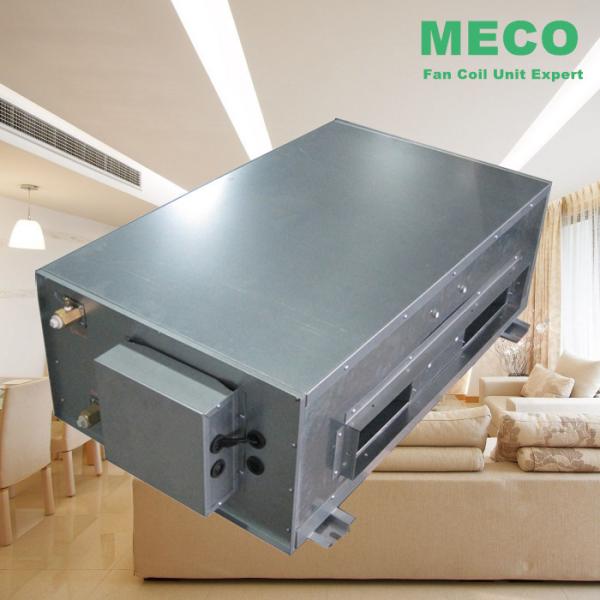

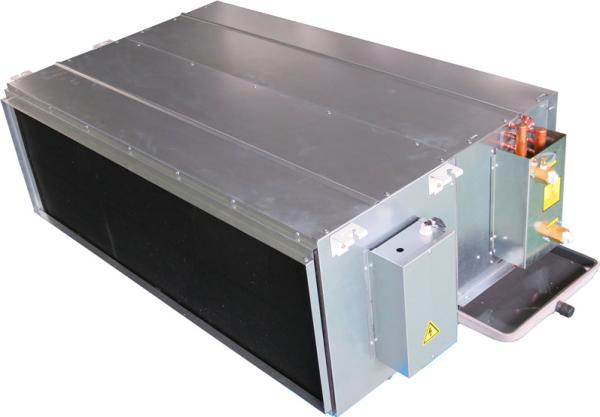

High Static Pressure Duct Type Fan Coil Unit 120Pa Classical Elegant Design
High Static Pressure Duct Type Fan Coil Unit 120Pa Classical Elegant Design
High Static Pressure Duct Type Fan Coil Unit 120Pa Classical Elegant Design
High Static Pressure Duct Type Fan Coil Unit 120Pa Classical Elegant Design
Specifications
Brand Name :
MECO
Model Number :
MFP-408HA(W)
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
50PCS
Price :
USD
Payment Terms :
T/T
Delivery Time :
25DAYS AFTER PAYMENT
Packaging Details :
STANDARD CARTON
Type :
Fan Coil Unit
Condition :
New
Operating voltage :
220V
Mounting :
Wall / Window Mount
Color :
Customer Requirements
Description

high static pressure 120Pa Ceiling duct type fan coils-MFP-408HA(W)

Features
Cooling capacity 9.0Kw-25.2KW air flow 1700m3/h-4760m3/h
E-heater is optional
Classical elegant design
No-spangle galvanized sheet, beautiful appearance
High static pressure, long distance air supply
the static pressure is Max.200Pa, and Min .120Pa
big diameter fan, big air volume, low noise

Advantages
Superior air distribution for comfortable living
The conditioned air of the high static pressure fan coil units can be effectively distributed to every corner of the room through the duct connection and this realize a more pleasant environment for a comfort living.

Compact design helps blend with interior decor.
Built-in type high static pressures FCU are designed with compact size. This design is able to provide some saving in space for installation.

Benefit
Versatility
Multiple rooms can be cooled together at the same time by using just one unit of fan coil unit.
Fresh air intake for healthy living
Fresh air can be introduced into the building through the design of fresh air intakes. This will help to improve the indoor air quality.

Application
Our High static pressure fan coil units, widely used in theater, restaurant, office buildings, ect.

Instructions
Standard export packing cartons; Please read the instruction manual before install our fan coil units.

Price and Performance of high static pressure duct type fan coil unit(HAW series,2 pipe system)
model unit MFP-136HA(W) MFP-170HA(W) MFP-204HA(W) MFP-238HA(W) MFP-272HA(W) MFP-306HA(W) MFP-340HA(W) MFP-408HA(W)
High speed m3/h 1360 1700 2040 2380 2720 3060 3400 4080
Medium speed m3/h 1090 1360 1635 1900 2180 2450 2720 3260
Low speed m3/h 815 1020 1225 1430 1630 1830 2040 2450
Cooling capacity kW 7.2 9 10.8 12.6 14.4 16.2 18 21.6
Heating capacity kW 10.8 13.5 16.2 18.9 21.6 24.3 27 32.4
Water volume m3/h 1.23 1.54 1.85 2.16 2.46 2.77 3.08 3.7
Static pressure Pa 120 120 120 120 120 120 120 120
Water pressure dropping kPa 25 28 30 35 36 42 43 50
fan type double inlet forward-curve centrifugal fan
quantity 1 2
Motor type 3 speed permanent split capacity motor
quantity 1
power supply 220V~ 50Hz 1Ph
power input(w) 380 420 450 520 550 880 900 1100
Coil type Copper tube coat aluminum fin
working pressure 1.6MPa
faced area(m2) 0.256 0.285 0.285 0.334 0.334 0.402 0.402 0.494
Pipe connection water inlet 3/4"
water outlet 3/4"
water drainage 3/4"
　 dimension(mm) 970*760*425 1050*760*425 1050*760*425 1190*760*425 1190*760*425 1380*760*425 1380*760*425 1640*760*425
net weight(kg) 47 49 50 54 55 60 61 80
