Specifications
Brand Name :
MECO
Model Number :
MFP-238WA-B
Certification :
CE
Place of Origin :
CHINA
MOQ :
50PCS
Price :
usd
Payment Terms :
T/T
Supply Ability :
10000p/m
Delivery Time :
30days after payment
Packaging Details :
standard packing
Type :
Fan Coil Unit
Mounting :
Ceiling Mount
Product name :
fan coil
Application :
Hotel,restaurant
Noise :
Low Noise
Description

Concealed Duct Chilled Water Fan Coil, Fan Coil Units for Central Air Conditioning System

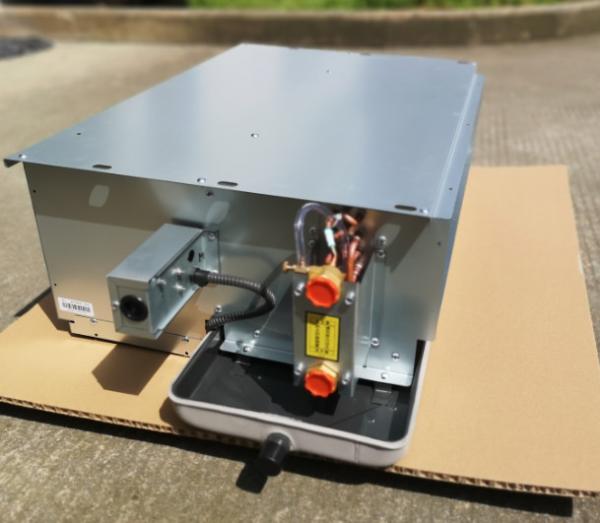

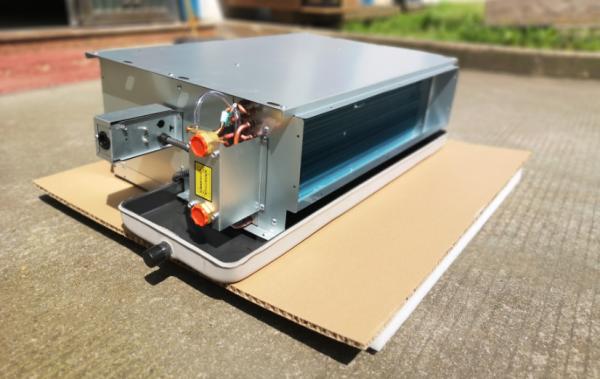

MECO Water chilled ceiling conceal duct type fan coil unit
Air volume=200CFM-1400CFM(340m³/h-2380m³/h)
cooling capacity:1.8Kw--12.6Kw(0.5RT--3.5RT)

Designed to suit most ceiling concealed installations. Height less than 240mm.
Quiet and efficiency 3-speed centrifugal fan-motor makes its running in low noise and high efficient. Our fan is made by international professional fan manufacture with stable quality and reliable character with routine dynamic balance precise debug. Fan runs stably and quietly.
High efficency. Adopt good quality heat exchanger and fan , heat exchanging capacity and efficiency.
Symmetric-design allows it the change the outlet pipe in left or right side according to actual installation.
2 pipes & 4 pipes systems in all range.
2-way and 3-way valve kits are optional for 2-pipe system and 4-pipe system.
Condensate drain pipe: Constructed from min1.0 thickness galvanized.
Unique coil design promotes the mixture of warm and cold air, resulting in high thermal efficiency and lower operating costs.
MECO concealed fan coil units, this series of fan coil units are designed to suit most ceiling concealed installations. Built-in automatic high-pressure condensate draining pump can pump out water up to 750mm high.
Wireless remote controller with LED display as standard and a large LCD screen Thermostat is optional.
EC motor is standard, DC motor is optional , high efficiency and energy saving.
Air return box is optional.
BMS system is optional
Water valve inside is optional.
Our concealed fan coil units, widely used in theater , restaurant,office buildings, ect.
